Homework Answers

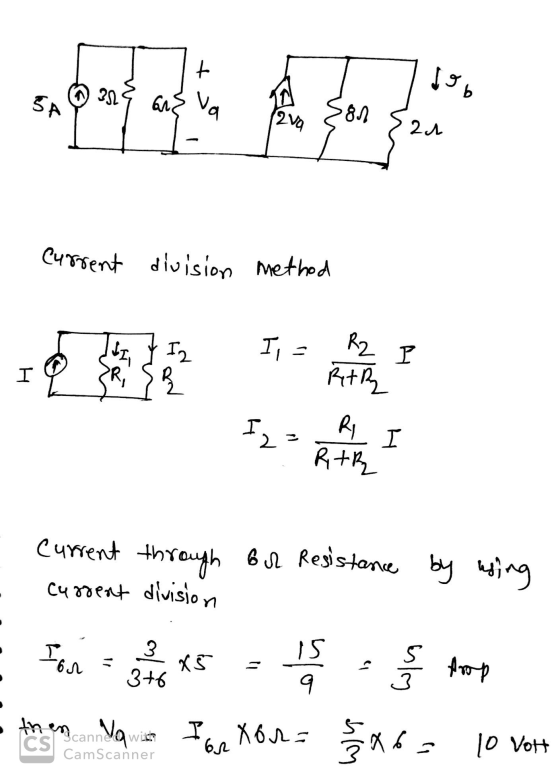

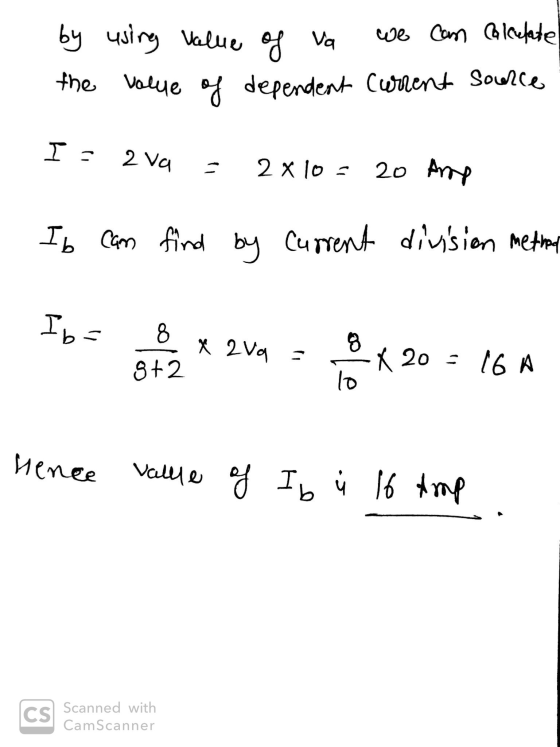

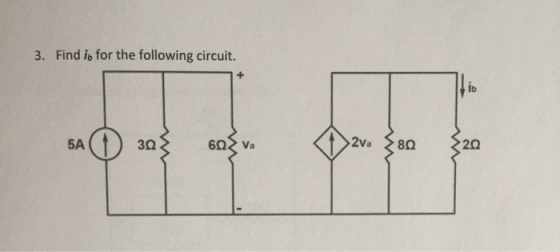

By using current division method the circuit can be solve. In
the solution i have mationed the current division formula
linear circuit 1 Q2. [30 Points) Consider the circuit below and answer the following questions 5A...
linear circuit 1
Q2. [30 Points) Consider the circuit below and answer the following questions 5A 292 532 389 40 V 20 V + (a) 18 Pts Use loop (Mesh) analysis technique to analyze the circuit and find the mesh currents. (b) [4 Pts) Calculate the voltage Vo. (c) 14 Pts) Calculate the current Ix. (d) [4 Pts Calculate the current ly.
3) (20 points) For the circuit in figure below, find i(t) 30 12 cos(6t +30) A...
3) (20 points) For the circuit in figure below, find i(t) 30 12 cos(6t +30) A 16 0 i(t) 50 sin(2t) V
Question 1) For the following circuit, find the equivalent capacitance 20 F 90 + 30 MF...
Question 1) For the following circuit, find the equivalent capacitance 20 F 90 + 30 MF + 14 MF + 80 MF 6 μF 18 V 8uF 12 MF 44
) The current-mirror circuit shown in Figure 3 utilizes pnp transistors having Isl 10-5A and/s2-2...
) The current-mirror circuit shown in Figure 3 utilizes pnp transistors having Isl 10-5A and/s2-2x10-5A for transistors Q1 and Q2 respectively and for both transistors a β 50, and |Val 10 V to source a current at Vo.It is required to design the circuit to provide an output current oflo= 1 mA at Vo = 2 V. What values of REF and R are needed? 0i 02 /REF lo
) The current-mirror circuit shown in Figure 3 utilizes pnp transistors...
Find the equivalent resistance of the circuit. 400 20 a 80 w 30 W O a...
Find the equivalent resistance of the circuit. 400 20 a 80 w 30 W O a 85 1700 Ob. c. 80.50 d. 1000
3- (5 points) Consider the following circuit. Determine all the currents in the circuit. 10Ω 20...
3- (5 points) Consider the following circuit. Determine all the currents in the circuit. 10Ω 20 Ω 20V 10V 30 Ω 40Ω 50 Ω

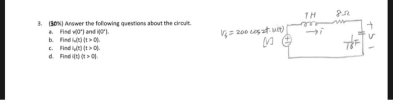

1H 8r - - 3. (30%) Answer the following questions about the circuit. a. Find v(0*)...
1H 8r - - 3. (30%) Answer the following questions about the circuit. a. Find v(0*) and i(0*). b. Find in(t) (t > 0). c. Find it) (t > 0). d. Find i(t) (t > 0). V2 = 200 coszt ut VI Tbi
Find I1, I2 and I3 for the circuit attached above. 30 Ω 20 V 1 13...
Find I1, I2 and I3 for the circuit attached above.
30 Ω 20 V 1 13 10 V 112 20 Ω
Page 3 of 3 (5) The periodic square-wave voltage seen in Fig. 5a is applied to...
Page 3 of 3 (5) The periodic square-wave voltage seen in Fig. 5a is applied to the circuit shown in Fig. 5b. (a) Determine the Fourier series of the periodic square-wave in Fig.5a. (b) Derive the steady-state voltage voC) as a response to the first two nonzero terms in the Fourier series that represents the v,) (20 points) v(t) 10% H 102 0 123 t (sec) -2 1 Fig. 5a Fig. 5b
Exercise 3-9 Davos Company performed services on account for $160,000 in 2016. Davos collected $120,000 cash...
Exercise 3-9
Davos Company performed services on account for $160,000 in
2016. Davos collected $120,000 cash from accounts receivable during
2016, and the remaining $40,000 was collected in cash dur- ing
2017.
Required
a. Record the 2016 transactions in T-accounts. b. Record the
2016 transactions in a horizontal statements model like the
following one:
c. Determine the amount of revenue Davos would report on the
2016 income statement. d. Determine the amount of cash flow from
operating activities Davos would...
linear circuit 1
Q2. [30 Points) Consider the circuit below and answer the following questions 5A 292 532 389 40 V 20 V + (a) 18 Pts Use loop (Mesh) analysis technique to analyze the circuit and find the mesh currents. (b) [4 Pts) Calculate the voltage Vo. (c) 14 Pts) Calculate the current Ix. (d) [4 Pts Calculate the current ly.
3) (20 points) For the circuit in figure below, find i(t) 30 12 cos(6t +30) A 16 0 i(t) 50 sin(2t) V
Question 1) For the following circuit, find the equivalent capacitance 20 F 90 + 30 MF + 14 MF + 80 MF 6 μF 18 V 8uF 12 MF 44
) The current-mirror circuit shown in Figure 3 utilizes pnp transistors having Isl 10-5A and/s2-2x10-5A for transistors Q1 and Q2 respectively and for both transistors a β 50, and |Val 10 V to source a current at Vo.It is required to design the circuit to provide an output current oflo= 1 mA at Vo = 2 V. What values of REF and R are needed? 0i 02 /REF lo
) The current-mirror circuit shown in Figure 3 utilizes pnp transistors...
Find the equivalent resistance of the circuit. 400 20 a 80 w 30 W O a 85 1700 Ob. c. 80.50 d. 1000
3- (5 points) Consider the following circuit. Determine all the currents in the circuit. 10Ω 20 Ω 20V 10V 30 Ω 40Ω 50 Ω
1H 8r - - 3. (30%) Answer the following questions about the circuit. a. Find v(0*) and i(0*). b. Find in(t) (t > 0). c. Find it) (t > 0). d. Find i(t) (t > 0). V2 = 200 coszt ut VI Tbi
Find I1, I2 and I3 for the circuit attached above.
30 Ω 20 V 1 13 10 V 112 20 Ω
Page 3 of 3 (5) The periodic square-wave voltage seen in Fig. 5a is applied to the circuit shown in Fig. 5b. (a) Determine the Fourier series of the periodic square-wave in Fig.5a. (b) Derive the steady-state voltage voC) as a response to the first two nonzero terms in the Fourier series that represents the v,) (20 points) v(t) 10% H 102 0 123 t (sec) -2 1 Fig. 5a Fig. 5b
Exercise 3-9
Davos Company performed services on account for $160,000 in
2016. Davos collected $120,000 cash from accounts receivable during
2016, and the remaining $40,000 was collected in cash dur- ing
2017.
Required
a. Record the 2016 transactions in T-accounts. b. Record the
2016 transactions in a horizontal statements model like the
following one:
c. Determine the amount of revenue Davos would report on the
2016 income statement. d. Determine the amount of cash flow from
operating activities Davos would...
