Find I1, I2 and I3 for the circuit attached above. 30 Ω 20 V 1 13...

Question

Question

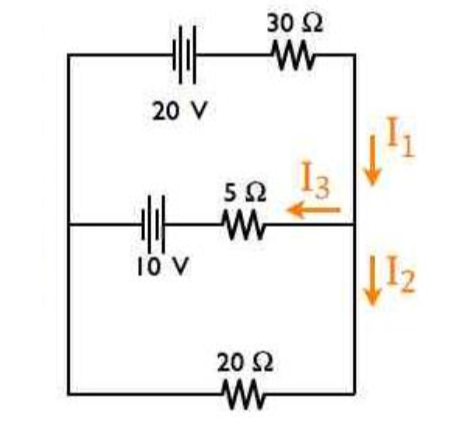

Find I1, I2 and I3 for the circuit attached above. 30 Ω 20 V 1 13 10 V 112 20 Ω

science physics

Answer 1

Answer #1

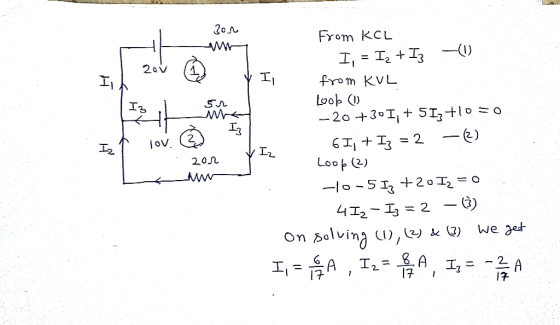

From KCL from KVL 2. 20几 Loo (2)

Answer 2

Similar Homework Help Questions

The following equations describe an electric circuit. −I1(233 Ω) + 5.80 V − I2(389 Ω) =...

The following equations describe an electric circuit. −I1(233 Ω) + 5.80 V − I2(389 Ω) = 0 I2(389 Ω) + I3(150 Ω) − 3.10 V = 0 I1 + I3 − I2 = 0 Calculate the unknowns (in mA). With respect to the 5.8 V battery, consider current moving toward the positive pole as positive and current moving toward the negative pole as negative. I1= ________mA I2= ________mA I3= ________mA
Determine the currents I1, I2, and I3 in the figure above

(a) Determine the currents I1, I2, and I3 in the figure above. Assume R = 12 Ω and the internal resistance of each battery is r = 1.0 Ω.I1 = ____ AI2 = ____ AI3 = ____ A(b) What is the terminal voltage of the 6.0 V battery?______ V
The following equations describe an electric circuit. −I1(209 Ω) + 5.80 V − I2(382 Ω) =...

The following equations describe an electric circuit. −I1(209 Ω) + 5.80 V − I2(382 Ω) = 0 I2(382 Ω) + I3(150 Ω) − 3.10 V = 0 I1 + I3 − I2 = 0 (a) Draw diagram of the circuit. Identify the physical meaning of each unknown on your drawing. (Submit a file with a maximum size of 1 MB.) This answer has not been graded yet. (b) Calculate the unknowns (in mA). With respect to the 5.8 V battery,...

The following equations describe an electric circuit. −I1(236 Ω) + 5.80 V − I2(400 Ω) =...

The following equations describe an electric circuit. −I1(236 Ω) + 5.80 V − I2(400 Ω) = 0 I2(400 Ω) + I3(150 Ω) − 3.10 V = 0 I1 + I3 − I2 = 0 (a) Draw diagram of the circuit. Identify the physical meaning of each unknown on your drawing. (b) Calculate the unknowns (in mA). With respect to the 5.8 V battery, consider current moving toward the positive pole as positive and current moving toward the negative pole as...
Find i1, i2, i3, i4 and i5 (answer i1 = 0.5A, i2 = 5.308 A, i3...

Find i1, i2, i3, i4 and i5 (answer i1 = 0.5A, i2 = 5.308 A, i3 = 0.308 A, i4 = -2.692 A, i5 = 2.808 A) 20 V 10 V ОЗА
Use the mesh-current method to find the branch currents i1, i2,and i3 in the circuit...

Use the mesh-current method to find the branch currents i1, i2, and i3 in the circuit in figure (Figure 1) if v1 = 35 V and v3 = 81 V .Find the current i1.Find the current i2.Find the current i3.

(a) Determine the currents I1, I2, and I3 in the figure above. Assume R = 12...

(a) Determine the currents I1, I2, and I3 in the figure above. Assume R = 12 Ω and the internal resistance of each battery is r = 2.0 Ω. I1 = _________A I2 = _________A I3 = _________A (b) What is the terminal voltage of the 6.0 V battery?
Using Kirchhoff's rules, find thecurrents I1, I2, and I3 in the circuit shown where R1...

Using Kirchhoff's rules, find the currents I1, I2, and I3 in the circuit shown where R1 = 1.2 Ω, R2 = 2.8 Ω, and R3 = 6.3 Ω.
Looking for I1 , I2 , I3 equation to find I1 is I1= I2 + I3...

Looking for I1 , I2 , I3 equation to find I1 is I1= I2 + I3 21= 14.5I1 + 12.5I3 12= -11I2- 11.5I3

For the above circuit, E1 = 3.57 V, E2 = 5.79 V. r1 = 0.591 Ω, r2 = 0.781 Ω, R1 = 41.3 Ω, R2 = 65...

For the above circuit, E1 = 3.57 V, E2 = 5.79 V. r1 = 0.591 Ω, r2 = 0.781 Ω, R1 = 41.3 Ω, R2 = 65.1 Ω, R3 = 73.3 Ω. a)Which equation would describe Kirchhoff's Junction Law at the right junction? A I1 - I2 = I3 B I1 + I2 = I3 C I1 + I3 = I2 D I1 = I2 + I3 b)Which equation would describe Kirchhoff's Loop Law for the lower half-loop? A E2...
