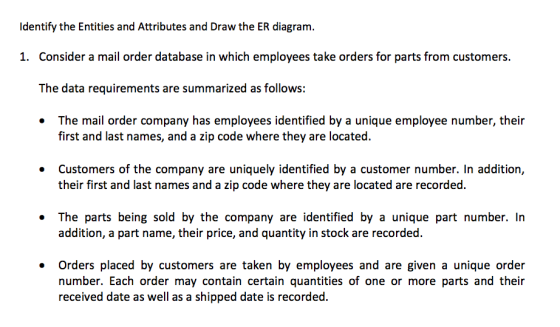

Identify the Entities and Attributes and Draw the ER diagram. 1. Consider a mail order database in which employees take orders for parts from customers. The data requirements are summarized as follows: The mail order company has employees identified by a unique employee number, their first and last names, and a zip code where they are located Customers of the company are uniquely identified by a customer number. In addition, their first and last names and a zip code where they are located are recorded. · . The parts being sold by the company are identified by a unique part number. In addition, a part name, their price, and quantity in stock are recorded Orders placed by customers are taken by employees and are given a unique order number. Each order may contain certain quantities of one or more parts and their received date as well as a shipped date is recorded.

engineering   Computer-Science
1 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

✔ Recommended Answer
Answer #1

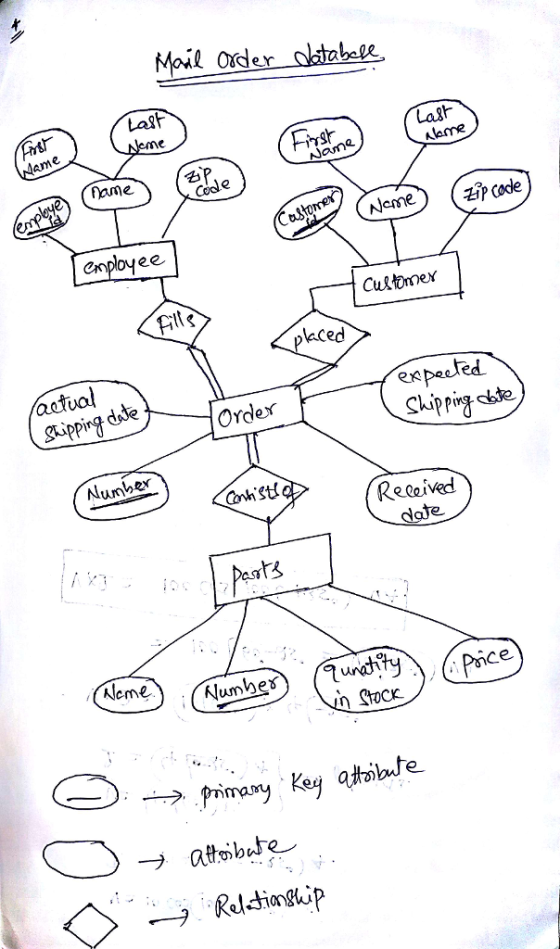

Moil oden e.r bale Laat Lash ame Nome nome Coole Custom e aced acival grippig dje ed Order Skipg te. Number lecaived ice

3 0
Add a comment
Know the answer?
Add Answer to:
Identify the Entities and Attributes and Draw the ER diagram. 1. Consider a mail order database...
