Chapter D3, Problem D3/035 The rod of the fixed hydraulic cylinder is moving to the left...
Chapter D3, Problem D3/035 The rod of the fixed hydraulic cylinder is moving to the left...

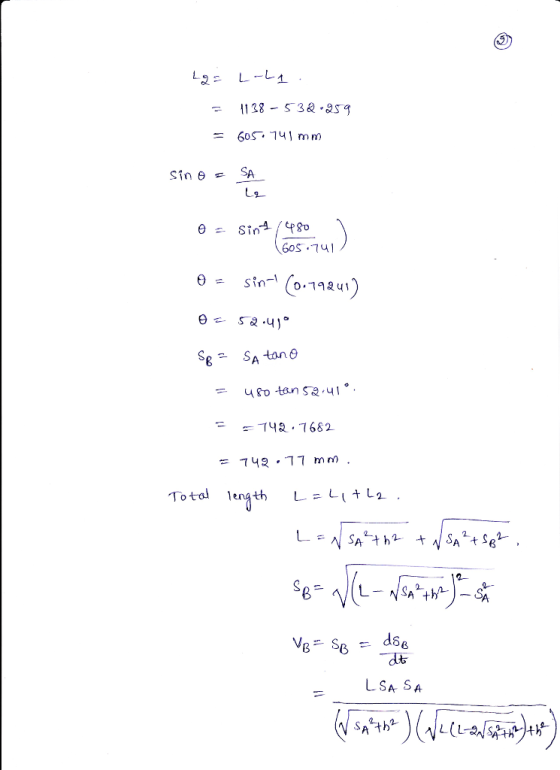

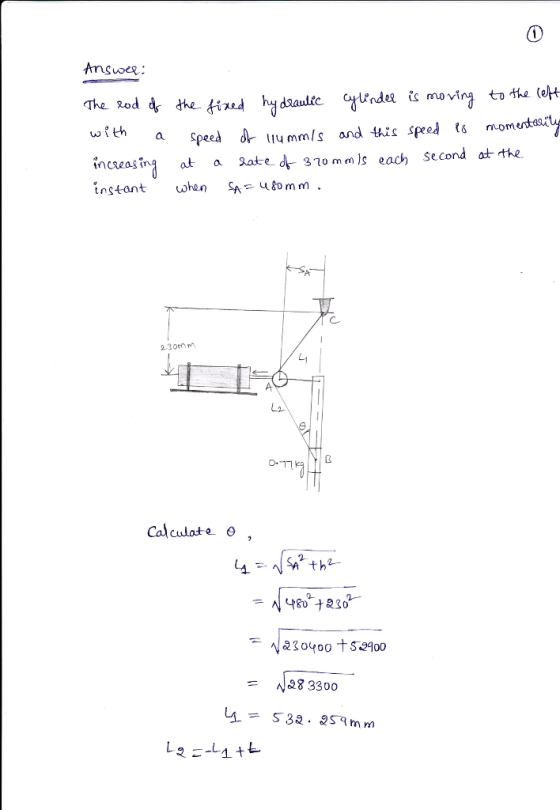

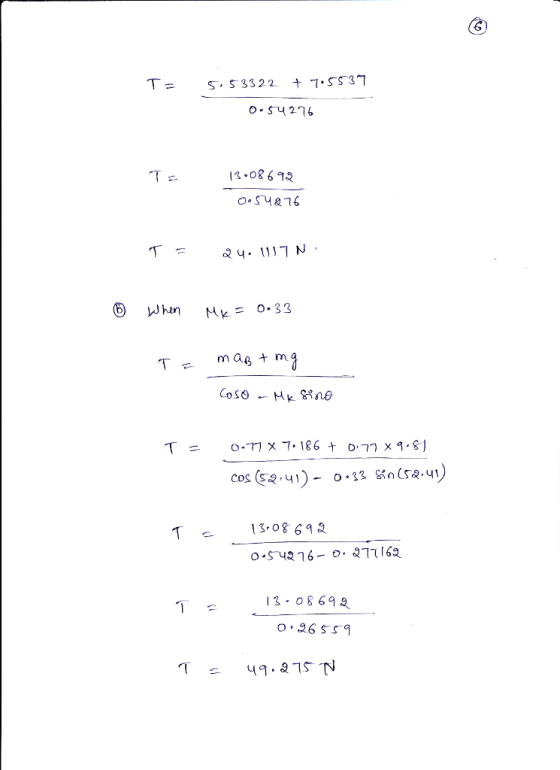

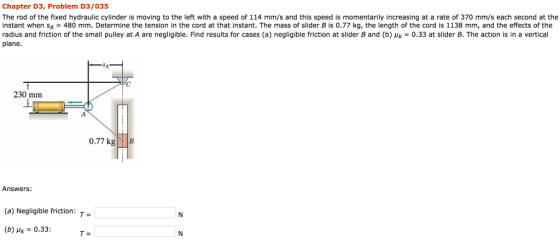

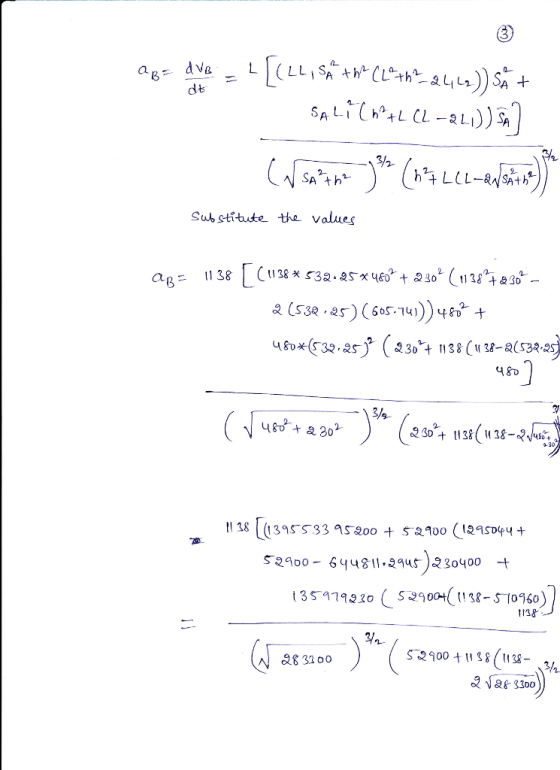

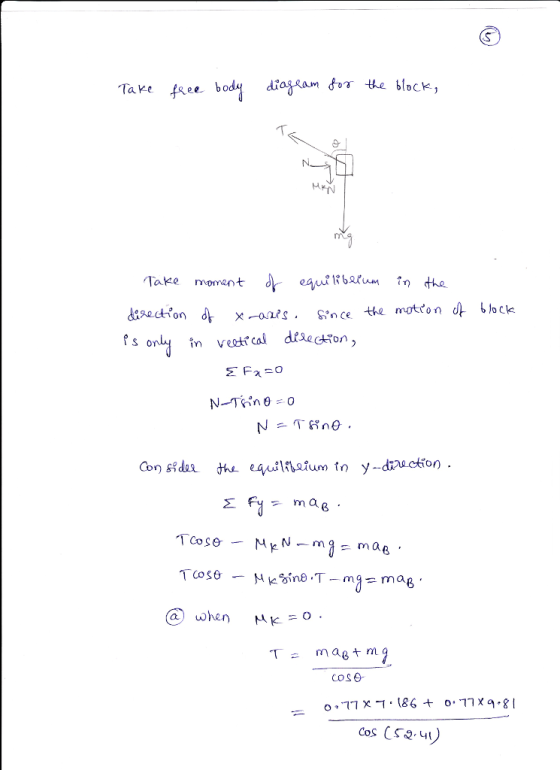

Chapter D3, Problem D3/035 The rod of the fixed hydraulic cylinder is moving to the left witha mm/s and this speed is momentarily increasing at a rate of 320 mm/s each second at the instant when SA 430 mm. Determine the tension in the cord at that instant. The mass of slider B is 0.68 kg, the length of the cord is 1017 mm, and the effects of the radius and friction of the small pulley at A are negligible....
The rod of the fixed hydraulic cylinder is moving to the left with a constant speed...
The rod of the fixed hydraulic cylinder is moving to the left
with a constant speed va=18 mm/s. Determine the acceleration aB of
slider B when sA=345 mm. The length of the cord is 1385 mm, and the
effects of the radius of the small pulley at A may be neglected.
The acceleration aB is positive if up.
Assignment The rod of the fixed hydraulic cylinder Is moving to thel the radius of the small pulley at A may be...
Chapter 2, Problem 2/190 x Incorrect The rod of the fixed hydraulic cylinder is moving to...
Chapter 2, Problem 2/190 x Incorrect The rod of the fixed hydraulic cylinder is moving to the left with a constant speed VA = 48 mm/s. Determine the corresponding acceleration of slider B (positive if downward, negative if upward) when 5a = 420 mm. The length of the cord is 1075 mm, and the effects of the radius of the small pulley A may be neglected. 245 mm Answer: ag = 35.563 mm/s2
PRINTER VERSION BACK NEXT Chapter 2, Problem 2/204 The rod of the fixed hydraulic cylinder is...
PRINTER VERSION BACK NEXT Chapter 2, Problem 2/204 The rod of the fixed hydraulic cylinder is moving to the left with a constant speed VA = 38 mm/s. Determine the corresponding velocity Vg of slider B when SA = 390 mm. The length of the cord is 1660 mm, and the effects of the radius of the small pulley at A may be neglected. The velocity vg is positive if up. SA 245 mm Answer: Vg = mm/s the tolerance...
Chapter D3, Problem D3/035 The rod of the fixed hydraulic cylinder is moving to the left witha mm/s and this speed is momentarily increasing at a rate of 320 mm/s each second at the instant when SA 430 mm. Determine the tension in the cord at that instant. The mass of slider B is 0.68 kg, the length of the cord is 1017 mm, and the effects of the radius and friction of the small pulley at A are negligible....
The rod of the fixed hydraulic cylinder is moving to the left
with a constant speed va=18 mm/s. Determine the acceleration aB of
slider B when sA=345 mm. The length of the cord is 1385 mm, and the
effects of the radius of the small pulley at A may be neglected.
The acceleration aB is positive if up.
Assignment The rod of the fixed hydraulic cylinder Is moving to thel the radius of the small pulley at A may be...
Chapter 2, Problem 2/190 x Incorrect The rod of the fixed hydraulic cylinder is moving to the left with a constant speed VA = 48 mm/s. Determine the corresponding acceleration of slider B (positive if downward, negative if upward) when 5a = 420 mm. The length of the cord is 1075 mm, and the effects of the radius of the small pulley A may be neglected. 245 mm Answer: ag = 35.563 mm/s2
PRINTER VERSION BACK NEXT Chapter 2, Problem 2/204 The rod of the fixed hydraulic cylinder is moving to the left with a constant speed VA = 38 mm/s. Determine the corresponding velocity Vg of slider B when SA = 390 mm. The length of the cord is 1660 mm, and the effects of the radius of the small pulley at A may be neglected. The velocity vg is positive if up. SA 245 mm Answer: Vg = mm/s the tolerance...
