The rod of the fixed hydraulic cylinder is moving to the left
with a constant speed...
Chapter 2, Problem 2/190 x Incorrect The rod of the fixed hydraulic cylinder is moving to...

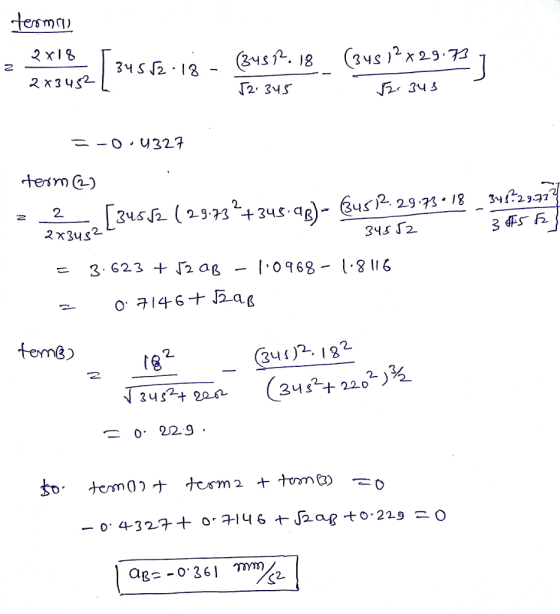

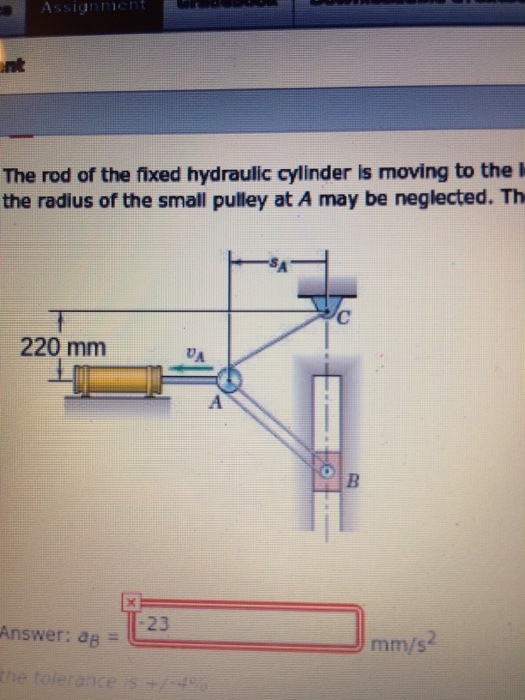

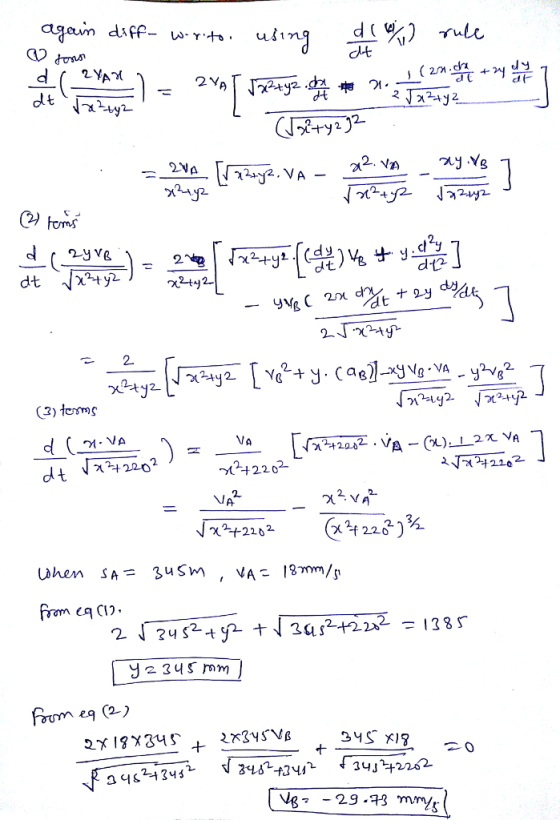

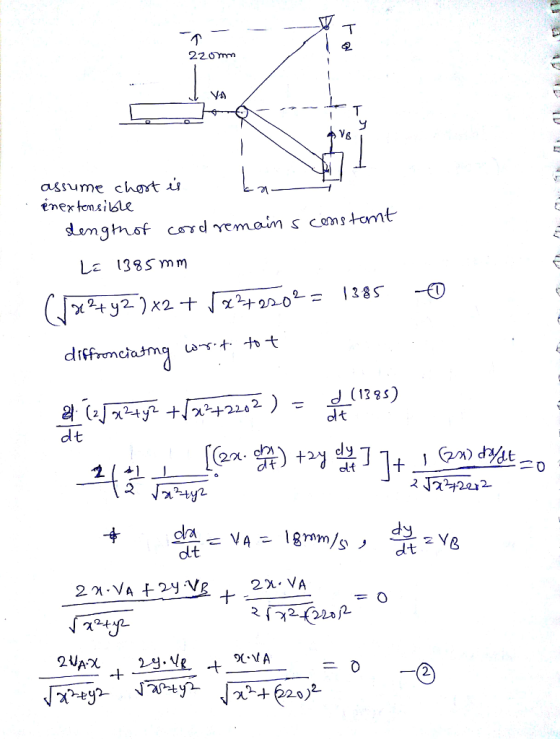

Chapter 2, Problem 2/190 x Incorrect The rod of the fixed hydraulic cylinder is moving to the left with a constant speed VA = 48 mm/s. Determine the corresponding acceleration of slider B (positive if downward, negative if upward) when 5a = 420 mm. The length of the cord is 1075 mm, and the effects of the radius of the small pulley A may be neglected. 245 mm Answer: ag = 35.563 mm/s2
PRINTER VERSION BACK NEXT Chapter 2, Problem 2/204 The rod of the fixed hydraulic cylinder is...
PRINTER VERSION BACK NEXT Chapter 2, Problem 2/204 The rod of the fixed hydraulic cylinder is moving to the left with a constant speed VA = 38 mm/s. Determine the corresponding velocity Vg of slider B when SA = 390 mm. The length of the cord is 1660 mm, and the effects of the radius of the small pulley at A may be neglected. The velocity vg is positive if up. SA 245 mm Answer: Vg = mm/s the tolerance...
Chapter D3, Problem D3/035 The rod of the fixed hydraulic cylinder is moving to the left...
Chapter D3, Problem D3/035 The rod of the fixed hydraulic cylinder is moving to the left witha mm/s and this speed is momentarily increasing at a rate of 320 mm/s each second at the instant when SA 430 mm. Determine the tension in the cord at that instant. The mass of slider B is 0.68 kg, the length of the cord is 1017 mm, and the effects of the radius and friction of the small pulley at A are negligible....
Chapter D3, Problem D3/035 The rod of the fixed hydraulic cylinder is moving to the left...
Chapter D3, Problem D3/035 The rod of the fixed hydraulic cylinder is moving to the left with a speed of 114 mm/s and this speed is momentarily increasing at a rate of 370 mm/s each second at the instant when sa = 480 mm. Determine the tension in the cord at that instant. The mass of slider B is 0.77 kg, the length of the cord is 1138 mm, and the effects of the radius and friction of the small...
Question 1 (10 marks) The piston rod of the hydraulic cylinder gives A a constant vertical...
Question 1 (10 marks) The piston rod of the hydraulic cylinder gives A a constant vertical velocity vA for an interval of motion Roller B is confined to move in the horizontal guide. Determine the angular acceleration of link AB in
At the instant shown, the hydraulic cylinder Dextends with a velocity of VB 5 fts and...
At the instant shown, the hydraulic cylinder Dextends with a velocity of VB 5 fts and an acceleration of ag -2.5 ft/s?. Determine: (a) The angular velocity of rod AB, WAB rad/s (use the appropriate sign for the direction) (b) The velocity and acceleration of slider A, VA fts and A fus? (use the appropriate sign for the direction). (c) The angular acceleration of rod AB, CAB rad/s? (use the appropriate sign for the direction) (d) The components of the...
Required information Problem 15.254-Rod connected to a slider-DEPENDENT MULTI-PART PROBLEM-ASSIGN...
Required information Problem 15.254-Rod connected to a slider-DEPENDENT MULTI-PART PROBLEM-ASSIGN ALL PARTS NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part Rod AB is attached to a collar at A and is fitted with a wheel at B that has a radius r= 15 mm. Know that when θ collar has velocity of 260 mm/s upward and it is slowing down at a rate of 150 mm/s 60, the...
3. As the hydraulic cylinder rotates around。, the exposed length L of the piston rod is...
3. As the hydraulic cylinder rotates around。, the exposed length L of the piston rod is controlled by the action of oil pressure in the cylinder. If the cylinder rotates at a constant rate of 6-30 deg/s and L is decreasing at a constant rate of 50 mm/s, calculate the magnitudes of the velocity v and the acceleration a of the end P when L= 200 mm.
Horizontal motion of the piston rod of the hydraulic cylinder controls the rotation of link OB...
Horizontal motion of the piston rod of the hydraulic cylinder controls the rotation of link OB about O. For the instant represented, VA = 2.3 m/s and OB is horizontal. Determine the angular velocity Wos (positive if counterclockwise, negative if clockwise) of OB for this instant. Solve for the angular velocity of OB by the method of this article. A VA = 2.3 m/s 0 290 mm 225 mm B 165 mm Answer: WOB = rad/s the tolerance is +/-2%
A 3.5-kg slender rod AB and a 2-kg slender rod BC are connected by a pin at Band by the cord AC. The assembly can rota...
A 3.5-kg slender rod AB and a 2-kg slender rod BC are connected by a pin at Band by the cord AC. The assembly can rotate in a vertical plane under the combined effect of gravity and a couple M applied to rod BC. In the position shown, the angular velocity of the assembly is zero and the tension in cord AC is equal to 271 N. 400 mm 400 mm 300 mm A Problem 16.090.a - Rotation about a...
Chapter 2, Problem 2/190 x Incorrect The rod of the fixed hydraulic cylinder is moving to the left with a constant speed VA = 48 mm/s. Determine the corresponding acceleration of slider B (positive if downward, negative if upward) when 5a = 420 mm. The length of the cord is 1075 mm, and the effects of the radius of the small pulley A may be neglected. 245 mm Answer: ag = 35.563 mm/s2
PRINTER VERSION BACK NEXT Chapter 2, Problem 2/204 The rod of the fixed hydraulic cylinder is moving to the left with a constant speed VA = 38 mm/s. Determine the corresponding velocity Vg of slider B when SA = 390 mm. The length of the cord is 1660 mm, and the effects of the radius of the small pulley at A may be neglected. The velocity vg is positive if up. SA 245 mm Answer: Vg = mm/s the tolerance...
Chapter D3, Problem D3/035 The rod of the fixed hydraulic cylinder is moving to the left witha mm/s and this speed is momentarily increasing at a rate of 320 mm/s each second at the instant when SA 430 mm. Determine the tension in the cord at that instant. The mass of slider B is 0.68 kg, the length of the cord is 1017 mm, and the effects of the radius and friction of the small pulley at A are negligible....
Chapter D3, Problem D3/035 The rod of the fixed hydraulic cylinder is moving to the left with a speed of 114 mm/s and this speed is momentarily increasing at a rate of 370 mm/s each second at the instant when sa = 480 mm. Determine the tension in the cord at that instant. The mass of slider B is 0.77 kg, the length of the cord is 1138 mm, and the effects of the radius and friction of the small...
Question 1 (10 marks) The piston rod of the hydraulic cylinder gives A a constant vertical velocity vA for an interval of motion Roller B is confined to move in the horizontal guide. Determine the angular acceleration of link AB in
At the instant shown, the hydraulic cylinder Dextends with a velocity of VB 5 fts and an acceleration of ag -2.5 ft/s?. Determine: (a) The angular velocity of rod AB, WAB rad/s (use the appropriate sign for the direction) (b) The velocity and acceleration of slider A, VA fts and A fus? (use the appropriate sign for the direction). (c) The angular acceleration of rod AB, CAB rad/s? (use the appropriate sign for the direction) (d) The components of the...
Required information Problem 15.254-Rod connected to a slider-DEPENDENT MULTI-PART PROBLEM-ASSIGN ALL PARTS NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part Rod AB is attached to a collar at A and is fitted with a wheel at B that has a radius r= 15 mm. Know that when θ collar has velocity of 260 mm/s upward and it is slowing down at a rate of 150 mm/s 60, the...
3. As the hydraulic cylinder rotates around。, the exposed length L of the piston rod is controlled by the action of oil pressure in the cylinder. If the cylinder rotates at a constant rate of 6-30 deg/s and L is decreasing at a constant rate of 50 mm/s, calculate the magnitudes of the velocity v and the acceleration a of the end P when L= 200 mm.
Horizontal motion of the piston rod of the hydraulic cylinder controls the rotation of link OB about O. For the instant represented, VA = 2.3 m/s and OB is horizontal. Determine the angular velocity Wos (positive if counterclockwise, negative if clockwise) of OB for this instant. Solve for the angular velocity of OB by the method of this article. A VA = 2.3 m/s 0 290 mm 225 mm B 165 mm Answer: WOB = rad/s the tolerance is +/-2%
A 3.5-kg slender rod AB and a 2-kg slender rod BC are connected by a pin at Band by the cord AC. The assembly can rotate in a vertical plane under the combined effect of gravity and a couple M applied to rod BC. In the position shown, the angular velocity of the assembly is zero and the tension in cord AC is equal to 271 N. 400 mm 400 mm 300 mm A Problem 16.090.a - Rotation about a...
