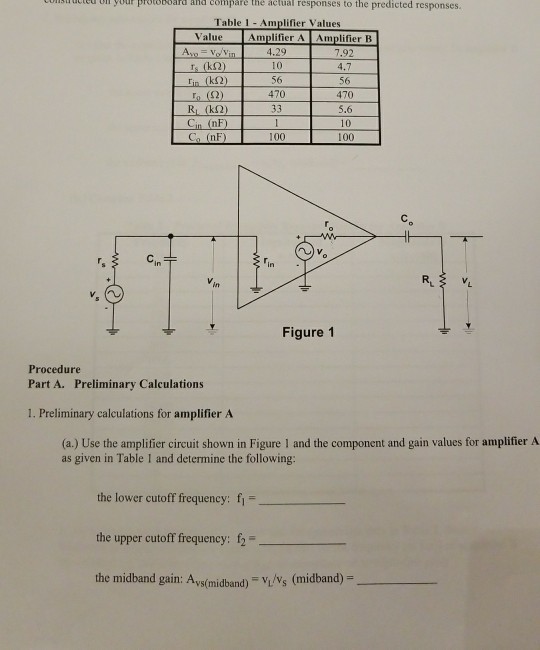

onsuteu n your potobbara and compare the actual responses to the predicted responses. Table 1 - Amplifier Values alue AmplifierAl Amplifier B 4.29 10 56 470 7.92 4.7 56 470 To (2) Ri (k2) 10 Cin (nF) 100 in Figure 1 Procedure Part A. Preliminary Calculations 1. Preliminary calculations for amplifier A (a.) Use the amplifier circuit shown in Figure 1 and the component and gain values for amplifier A as given in Table I and determine the following: the lower cutoff frequency: fi the upper cutoff frequency: f2 the midband gain. Avs(midband,-VL/VS (midband

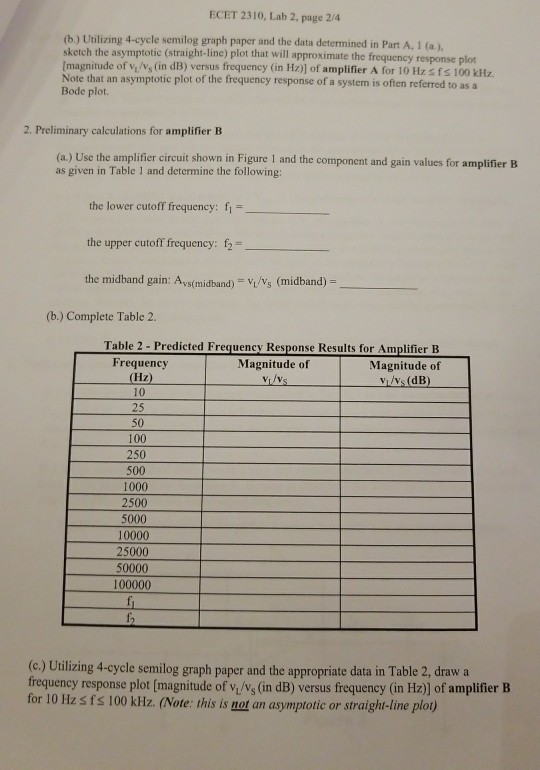

media%2Fe8a%2Fe8a13a36-4ffc-436a-a8c5-4f

0 0
Add a comment Improve this question Transcribed image text
Request Professional Answer

Request Answer!

We need at least 10 more requests to produce the answer.

0 / 10 have requested this problem solution

The more requests, the faster the answer.

Request! (Login Required)


All students who have requested the answer will be notified once they are available.
Know the answer?
Add Answer to:
onsuteu n your potobbara and compare the actual responses to the predicted responses. Table 1 -...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Similar Homework Help Questions
  • Table 1 Amplifier Values Value Amplifier A Amplifier B 10 56 470 56 470 5.6 10...

    Table 1 Amplifier Values Value Amplifier A Amplifier B 10 56 470 56 470 5.6 10 100 Co (nF 100 Figure 1 Procedure Part A. Preliminary Caleulations 1. Preliminary caleulations for amplifier A (a.) Use the amplifier circuit shown in Figure 1 and the component and gain values for amplifier A as given in Table 1 and determine the following: the lower cutoff frequency: fi the upper cutoff frequency: f2 the midband gain: Ays(midband) 2. Preliminary calculations for amplifier B...

  • 100 1.5 0.27 5. 6 Pl. Consider the CB amplifier of Figure 1, for which Vcc-15...

    100 1.5 0.27 5. 6 Pl. Consider the CB amplifier of Figure 1, for which Vcc-15 V, Rs-50 Ω, and RL-10 kQ. For the BJT, assume that B150, VBE.on0.7 V, and VcE,sat 0.3 V, and ignore the Early effect. For the other resistances, however, assume the same values as those you used for the Common-Emitter (CE) amplifier lab (disregard the value for RE2, as the resistor does not exist in the CB amplifier of Figure 1). Therefore, copy the same...

  • Question 2: Conditioning CIPeuIL A. The circuit in Figure 1 is used to amplify the input...

    Question 2: Conditioning CIPeuIL A. The circuit in Figure 1 is used to amplify the input signal sh output waveform, labelling both the x and y axis (both numb and explain in detail why the signal has the shape it hass and labels) necessary calculations to support your answer. it has, including any 23ks2 +10V 2.3kΩ sin(10t)V10V Figure 1 B. The circuit in Figure 2 is a full ECG amplifier circuit. Page 2 of6 47 nF UA 1 k2 33...

  • A common source amplifier circuit based on a single n-channel MOSFET is shown in Figure 4b. Assume that the transconductance gm-60 mS (equivalent to mA/ V) and drain source resistance, os,...

    A common source amplifier circuit based on a single n-channel MOSFET is shown in Figure 4b. Assume that the transconductance gm-60 mS (equivalent to mA/ V) and drain source resistance, os, is so large it may be neglected. 0) Calculate the open circuit voltage gain Av Yout/ Vis. i) The amplifier has a load of 10 k2. Determine the current gain Va. = 12 V 150k 4k3 Vout Vin 200k GND = 0 V Figure 4b a) State the name...

  • Laboratory 2: Transistor circuit characteristics A. Objectives: 1. To study the basic characteris...

    Laboratory 2: Transistor circuit characteristics A. Objectives: 1. To study the basic characteristics of a transistor circuit. 2. To study the bias circuit of a transistor circuit. B. Apparatus: 1. DC Power supply 2. Experimental boards and corresponding components 3. Electronic calculator (prepared by students) 4. Digital camera (prepared by students for photo taking of the experimental results) 5. Laptop computer with the software PicoScope 6 and Microsoft Word installed. 6. PicoScope PC Oscilloscope and its accessories. 7. Digital multi-meter....

  • Laboratory 1: operation amplifier characteristics A. Objectives: 1. To study the basic characteri...

    thanks Laboratory 1: operation amplifier characteristics A. Objectives: 1. To study the basic characteristics of an operational amplifier 2. To study the bias circuit of an operational amplifier B. Apparatus: 1. DC Power supply 2. Experimental board and corresponding components 3. Electronic calculator (prepared by students) 4. Digital camera (prepared by students for photo taking of the experimental results) 5. Laptop computer with the software PicoScope 6 and Microsoft Word installed. 6. PicoScope PC Oscilloscope and its accessories. 7. Multimeter...

  • please show methods and calculations 1. Using measured open-loop frequency response values as presented in Table...

    please show methods and calculations 1. Using measured open-loop frequency response values as presented in Table 1, the plant transfer function in the system of Figure 1 has been estimated as 48 Gp (s)- (S+2)(s +4.8s +16) 3.0 0.4 -j 0.7 o (rad/s) 0.8 5.1 6.7 2 j01.1-j 0.8 - 0.34 +j0 -0.14 +j0.07 Table 1 To improve the accuracy of the frequency response plot, use the transfer function to estimate the open-loop frequency response Gp(G1.6) at the additional frequency...

  • 1. Find the length of the lowpass FIR filter corresponding to the following specifications: wp- 0...

    1. Find the length of the lowpass FIR filter corresponding to the following specifications: wp- 0.3m ωs-0.4m, δp-0.01, and δ,-0.005. Use Kaiser's formula 4. Consider the design of a windowed FIR lowpass filter corresponding to the specifications given in problem #1. Determine its length if Hann, Hamming, and Blackman windows are used. Hint: refer to Equation 10.36 and Table 10.2 of the textbook. 5. With reference to the specifications in problem #1, consider the design of an FIR lowpass filter...

  • Questions and exrcises: 1. Show the details of your calculations on Pexp and Poheory (Table 2)....

    Questions and exrcises: 1. Show the details of your calculations on Pexp and Poheory (Table 2). Record in Table 2 the measured values of t(Up) and t() at the three frequencies Table 2 Measured values of t(UR) and t(v) at the three frequencies (L = 3.3 mH, C = 0,39 uF, R = 100 2 ) f = 1000 Hz f = fres(theory) t(r) (8) 0.00125 2.27 * 10^-4 0.00104 2.28 * 10^-4 9 Calculate Perp and Preary f =...
