An isentropic turbine operates using carbon dioxide as the working fluid. The inlet is at 221.4...

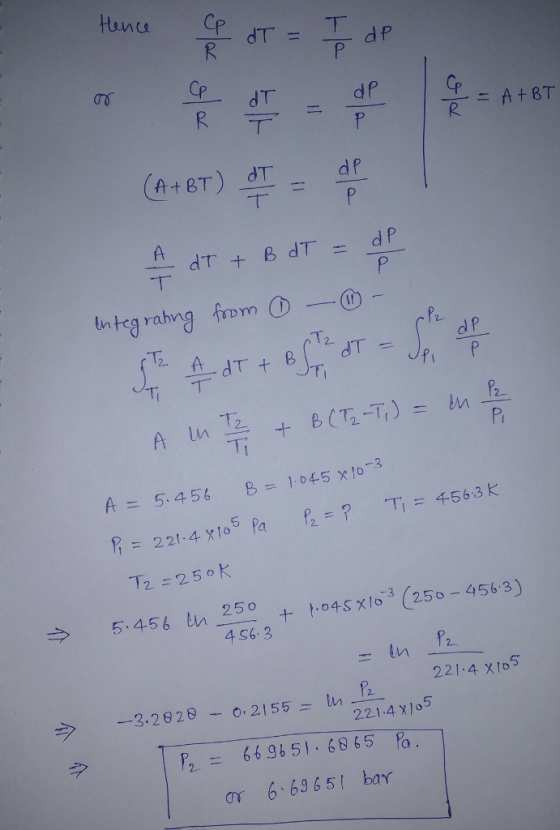

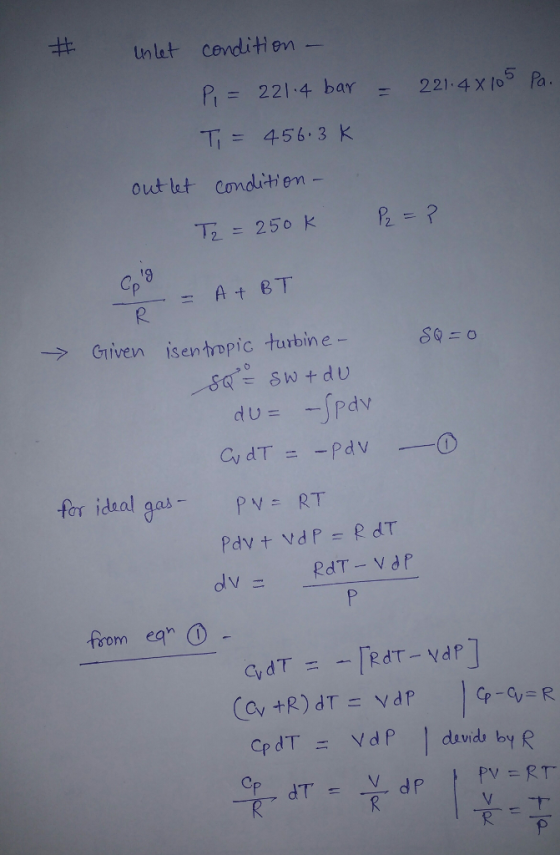

An isentropic turbine operates using carbon dioxide as the working fluid. The inlet is at 221.4 bar and 456.3 K. The gas exits the turbine at 250 K where it could be assumed ideal. Determine the exit pressure of the turbine. For carbon dioxide Cigp/R = A + BT, where A = 5.456, and B = 1.045x10-3 K-1.
Homework Answers
Add Answer to:
An isentropic turbine operates using carbon dioxide as the
working fluid. The inlet is at 221.4...
An adiabatic turbine operates at steady state. Air enters the turbine at a pressure and temperature...
An adiabatic turbine operates at steady state. Air enters the turbine at a pressure and temperature of 800 kPa and 1100 K, respectively, and exits at 100 kPa. A temperature sensor at the turbine exit indicates that the exit air temperature is 700 K. Kinetic and potential energy effects are negligible, and the air can be treated as an ideal gas. Determine if the exit temperature reading can be correct. If yes, determine the turbine isentropic efficiency.
An ideal reheat Rankine cycle with water as the working fluid operates the inlet of the...
An ideal reheat Rankine cycle with water as the working fluid operates the inlet of the high-pressure turbine at 8000 kPa and 450°C, the inlet of the low-pressure turbine at 300kPa and 500°C, and the condenser at 10 kPa. Determine the mass flow rate through the boiler needed for this system to produce a net 5000 kW of power and the thermal efficiency of the cycle.
In a gas turbine, gas enters the turbine at a temperature of 600'C and 5 bar...
In a gas turbine, gas enters the turbine at a temperature of 600'C and 5 bar of pressure and exit at a pressure of 1 bar. This process is an adiabatic process but the change in entropy is 0.250 kJ/kg K. Determine the temperature of exit gas. Assumed that the gas is an ideal gas and take the value of y=1.3 and cp = 1.11 kJ/kg K. Sketch the process on a T-s diagram. Determine the temperature of the exit...
Water is the working fluid in a Rankine cycle. Superheated vapor enters the turbine at 8...
Water is the working fluid in a Rankine cycle. Superheated vapor enters the turbine at 8 MPa, 700°C and the turbine exit pressure is 8 kPa. Saturated liquid enters the pump at 8 kPa. The heat transfer rate to the working fluid in the steam generator is 24 MW. The isentropic turbine efficiency is 88%, and the isentropic pump efficiency is 82%. Cooling water enters the condenser at 18°C and exits at 36°C with no significant change in pressure. Determine...
Please solve all the problems, show all work and please do not copy from the others....
Please solve all the problems, show all work and please do not
copy from the others.
Problem 1 A 3 HP heat pump operates between 0°F and 100°F. The maximum theoretical amount of Problem 2 An ideal vapor compression refrigeration cycle with R-134a as the working fluid operates between the pressure limits of 120 kPa and 1000 kPa. The mass fraction of the refrigerant that is in the liquid phase at the inlet of the evaporator is Problem 3 An...
A power plant operates on a superheat vapor power cycle with water is the working fluid....
A power plant operates on a superheat vapor power cycle with water is the working fluid. Superheated steam enters the turbine at 80 bar, 480° C, and expands to 0.08 bar to the condenser and becomes saturated liquid enters the feed water pump. The net cycle work output is 100 MW. Assume isentropic process exists at the turbine and the pump. (a) Sketch the schematic and T-S diagram of the power cycle (5%), (b) determine the heat input to the...
An ideal gas turbine operates using air (k=1.4) coming at 375°C and 300 kPa. Find the...
An ideal gas turbine operates using air (k=1.4) coming at 375°C and 300 kPa. Find the exit pressure (kPa) if the air exits at 125 oC. Assume the air behaves ideally, properties are constant, and the turbine operates isentropically. The correct answer is 30.8 kPa
A steam turbine, as shown in Figure Q3, operates at steady state with inlet conditions of Pi= 2 M...
A steam turbine, as shown in Figure Q3, operates at steady state with inlet conditions of Pi= 2 MPa, T1 = 480°C and producing 4000 kW. Saturated steam leaves the turbine at a pressure of 0.1 bar where it is condensed at 45.81 °C in the condenser. There is no significant heat transfer between the turbine and the condenser and their surroundings, and kinetic and potential energy changes between inlet and exit are negligible.
A steam turbine, as shown in...
A natural gas turbine is used to generate 5MW of power using air as the working...
A natural gas turbine is used to generate 5MW of power using air as the working fluid. The turbine operates at a mass flowrate of mair=10kg/sec the inlet conditions of Pmax=8MPa and Tmax=627C, and exhaust conditions of P2a=300kPa and T2a. The outside air temperature is at Tenv=25C and Qlose=300kW is lost to the environment. Its isentropic efficiency is nt. Use R=Cp-Cy, Cpve=1.06kJ/kgK, Cav=.773kJ/kgK, k=1.4 and Show work for credit!! a) (3pts) What is the isentropic efficiency, nt. of the turbine?...
A brayton cycle operates with a gas mixture of 78% nitrogen, 21% oxygen, and 1% carbon...
A brayton cycle operates with a gas mixture of 78% nitrogen, 21% oxygen, and 1% carbon dioxide by volume. The gas mixture enters the isothermal compressor at 100 kPa and 298 K, and exits the compressor at 800 kPa. In the constant pressure heat exchanger, the gas mixture is heated to 1000 K. At the exit of the turbine, the gas mixture is at 400 K. Determine a) the work input to the compressor, b) the heat addition in the...
Please solve all the problems, show all work and please do not
copy from the others.
Problem 1 A 3 HP heat pump operates between 0°F and 100°F. The maximum theoretical amount of Problem 2 An ideal vapor compression refrigeration cycle with R-134a as the working fluid operates between the pressure limits of 120 kPa and 1000 kPa. The mass fraction of the refrigerant that is in the liquid phase at the inlet of the evaporator is Problem 3 An...
A power plant operates on a superheat vapor power cycle with water is the working fluid. Superheated steam enters the turbine at 80 bar, 480° C, and expands to 0.08 bar to the condenser and becomes saturated liquid enters the feed water pump. The net cycle work output is 100 MW. Assume isentropic process exists at the turbine and the pump. (a) Sketch the schematic and T-S diagram of the power cycle (5%), (b) determine the heat input to the...
A steam turbine, as shown in Figure Q3, operates at steady state with inlet conditions of Pi= 2 MPa, T1 = 480°C and producing 4000 kW. Saturated steam leaves the turbine at a pressure of 0.1 bar where it is condensed at 45.81 °C in the condenser. There is no significant heat transfer between the turbine and the condenser and their surroundings, and kinetic and potential energy changes between inlet and exit are negligible.
A steam turbine, as shown in...
A natural gas turbine is used to generate 5MW of power using air as the working fluid. The turbine operates at a mass flowrate of mair=10kg/sec the inlet conditions of Pmax=8MPa and Tmax=627C, and exhaust conditions of P2a=300kPa and T2a. The outside air temperature is at Tenv=25C and Qlose=300kW is lost to the environment. Its isentropic efficiency is nt. Use R=Cp-Cy, Cpve=1.06kJ/kgK, Cav=.773kJ/kgK, k=1.4 and Show work for credit!! a) (3pts) What is the isentropic efficiency, nt. of the turbine?...
