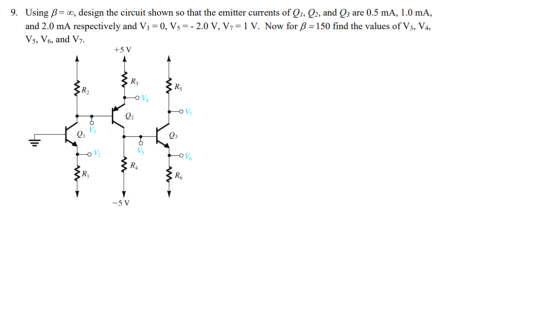

9. Using B=00, design the circuit shown so that the emitter currents of Q1, Q2, and...
thumbs up will be given for timely answer 5. Each transistor in the following circuit has...
thumbs up will be given for timely answer
5. Each transistor in the following circuit has B = 150. Find the emitter currents lei, le, les and the voltage values of V3, V4, V5, V6, and V7.(4 points each ) (Total 32 points) Given R1 = 8.2 k12, R2 = 8.2 k-2, R3 = 4.7 k12, R=2.7k 2, Rs = 2.2 k12, and Ro = 1.2 k12. +5V ste R.
Q3) Design the circuit of that is, determine the values of RD and RS so that...
Q3) Design the circuit of that is, determine the values of RD and RS so that the transistor operates at ID = 0.4 mA and Vp=+0.5 V. The NMOS transistor has V = 0.7 V, H, Cox= 100 A/V2, L = 1 pm, and W = 32 m. Neglect the channel-length modulation effect (i.e., assume that I = 0). Vpp = +2.5 V Z RO V--25 V
Consider the circuit shown in Figure 1. Transistors Q1 and Q2 are identical and can be...
Consider the circuit shown in Figure 1. Transistors Q1 and Q2
are identical and can be
describe with the following parameters: IS = 5
×10−16 A, β = 100 and VA = 5 V.
1. when Vin = 1,5V
ICQ1=ICQ2.
2. Write an equation for currents IC1 and
IC2 in terms of the voltages
Vin(VBQ1) and
VBQ2. For it
you can omit the Early effect and assume IE ≈
IC. Solve the equations to find so
Analyze the value of...
FIND THE VALUES OF Rb1, Rb2, Re,Rc, rin , rout, overall gain and open circuit gain First, design a common emitter BJT a...
FIND THE VALUES OF Rb1, Rb2, Re,Rc, rin , rout, overall gain and
open circuit gain
First, design a common emitter BJT amplifier Second, analyze the amplifier.( Avo, Gv, Rin, Rout) Third, compare your calculation with Multisim. Report must include comparison between your calculation & simulation results overall voltage gain, open circuit voltage gain, input resistance, and output resistance. This design project is not group work, must be done individually. Type your report. Design a discrete common emitter BJT amplifier.(Determine...
Beta = 100 10 V IRE R3 Fig. 1: A current source and mirror circuits using...
Beta = 100
10 V IRE R3 Fig. 1: A current source and mirror circuits using npn BJTS Design the current source and mirror circuit in Fig. 1 such that IREF = 10 mA (13%) nominally. Use supply of Vcc = 10 V, and use an average value for ß that you found in your previous experiments or that from the datasheet. Find the value of R, that satisfies the design requirements. In your pre- lab, perform the following: 1....
For the differential amplifier shown in Figure 6: Assume well-matched transistors and = 100 for all transistors: a) Wh...
For the differential amplifier shown in Figure 6: Assume
well-matched transistors and = 100 for all transistors:
a) Why it is important to use well-matched transistors in
differential amplifier circuits? What is the potential influence of
mismatched transistors on the performance of the differential
amplifier?
b) Determine the resistor values (R1, R2 and R3) such that the
emitter coupled current IE = 0.5 mA and VC1 = 3 V.
c) Draw the ac equivalent circuit for the single ended...
Q1. The values of the difference amplifier in figure 1 are Ao 5x 105, Rı =...
Q1. The values of the difference amplifier in figure 1 are Ao 5x 105, Rı = 5kQ, RF = 50M, Ra-2kQ, and Rx-20kS2. The input voltages are vb-5mV and Va--15mV. Find the out voltage vo. (5 Points) RF R1 Figure 1 Q2. Design an integrator as shown in figure 2 to be operated with an AC signal of 5 kHz and to give a closed loop voltage gain of Af-10 at w=1 rad/s. (5 Points) iRF RI 79 +Vcc 2...
A common source amplifier circuit based on a single n-channel MOSFET is shown in Figure 4b. Assume that the transconductance gm-60 mS (equivalent to mA/ V) and drain source resistance, os,...
A common source amplifier circuit based on a single n-channel MOSFET is shown in Figure 4b. Assume that the transconductance gm-60 mS (equivalent to mA/ V) and drain source resistance, os, is so large it may be neglected. 0) Calculate the open circuit voltage gain Av Yout/ Vis. i) The amplifier has a load of 10 k2. Determine the current gain Va. = 12 V 150k 4k3 Vout Vin 200k GND = 0 V Figure 4b a) State the name...
I need help to solve this questions about Generator Governor Droop and Transmission Line. A complete...
I
need help to solve this questions about Generator Governor Droop
and Transmission Line. A complete solutions with answers would be
great. Thank you
Generation Question 1 to 5 relate to the following grid connected generator. A governor-controlled, steam-driven 450 MW synchronous generator with 5% droop is synchronized to the 60 Hz grid and its load set-point adjusted to deliver 300 MW to the grid. Q1. (a) 000 What is the actual droop of the generating unit? 0.0225 Hz/MW (b)...
thumbs up will be given for timely answer
5. Each transistor in the following circuit has B = 150. Find the emitter currents lei, le, les and the voltage values of V3, V4, V5, V6, and V7.(4 points each ) (Total 32 points) Given R1 = 8.2 k12, R2 = 8.2 k-2, R3 = 4.7 k12, R=2.7k 2, Rs = 2.2 k12, and Ro = 1.2 k12. +5V ste R.
Q3) Design the circuit of that is, determine the values of RD and RS so that the transistor operates at ID = 0.4 mA and Vp=+0.5 V. The NMOS transistor has V = 0.7 V, H, Cox= 100 A/V2, L = 1 pm, and W = 32 m. Neglect the channel-length modulation effect (i.e., assume that I = 0). Vpp = +2.5 V Z RO V--25 V
Consider the circuit shown in Figure 1. Transistors Q1 and Q2
are identical and can be
describe with the following parameters: IS = 5
×10−16 A, β = 100 and VA = 5 V.
1. when Vin = 1,5V
ICQ1=ICQ2.
2. Write an equation for currents IC1 and
IC2 in terms of the voltages
Vin(VBQ1) and
VBQ2. For it
you can omit the Early effect and assume IE ≈
IC. Solve the equations to find so
Analyze the value of...
FIND THE VALUES OF Rb1, Rb2, Re,Rc, rin , rout, overall gain and
open circuit gain
First, design a common emitter BJT amplifier Second, analyze the amplifier.( Avo, Gv, Rin, Rout) Third, compare your calculation with Multisim. Report must include comparison between your calculation & simulation results overall voltage gain, open circuit voltage gain, input resistance, and output resistance. This design project is not group work, must be done individually. Type your report. Design a discrete common emitter BJT amplifier.(Determine...
Beta = 100
10 V IRE R3 Fig. 1: A current source and mirror circuits using npn BJTS Design the current source and mirror circuit in Fig. 1 such that IREF = 10 mA (13%) nominally. Use supply of Vcc = 10 V, and use an average value for ß that you found in your previous experiments or that from the datasheet. Find the value of R, that satisfies the design requirements. In your pre- lab, perform the following: 1....
For the differential amplifier shown in Figure 6: Assume
well-matched transistors and = 100 for all transistors:
a) Why it is important to use well-matched transistors in
differential amplifier circuits? What is the potential influence of
mismatched transistors on the performance of the differential
amplifier?
b) Determine the resistor values (R1, R2 and R3) such that the
emitter coupled current IE = 0.5 mA and VC1 = 3 V.
c) Draw the ac equivalent circuit for the single ended...
Q1. The values of the difference amplifier in figure 1 are Ao 5x 105, Rı = 5kQ, RF = 50M, Ra-2kQ, and Rx-20kS2. The input voltages are vb-5mV and Va--15mV. Find the out voltage vo. (5 Points) RF R1 Figure 1 Q2. Design an integrator as shown in figure 2 to be operated with an AC signal of 5 kHz and to give a closed loop voltage gain of Af-10 at w=1 rad/s. (5 Points) iRF RI 79 +Vcc 2...
A common source amplifier circuit based on a single n-channel MOSFET is shown in Figure 4b. Assume that the transconductance gm-60 mS (equivalent to mA/ V) and drain source resistance, os, is so large it may be neglected. 0) Calculate the open circuit voltage gain Av Yout/ Vis. i) The amplifier has a load of 10 k2. Determine the current gain Va. = 12 V 150k 4k3 Vout Vin 200k GND = 0 V Figure 4b a) State the name...
I
need help to solve this questions about Generator Governor Droop
and Transmission Line. A complete solutions with answers would be
great. Thank you
Generation Question 1 to 5 relate to the following grid connected generator. A governor-controlled, steam-driven 450 MW synchronous generator with 5% droop is synchronized to the 60 Hz grid and its load set-point adjusted to deliver 300 MW to the grid. Q1. (a) 000 What is the actual droop of the generating unit? 0.0225 Hz/MW (b)...
