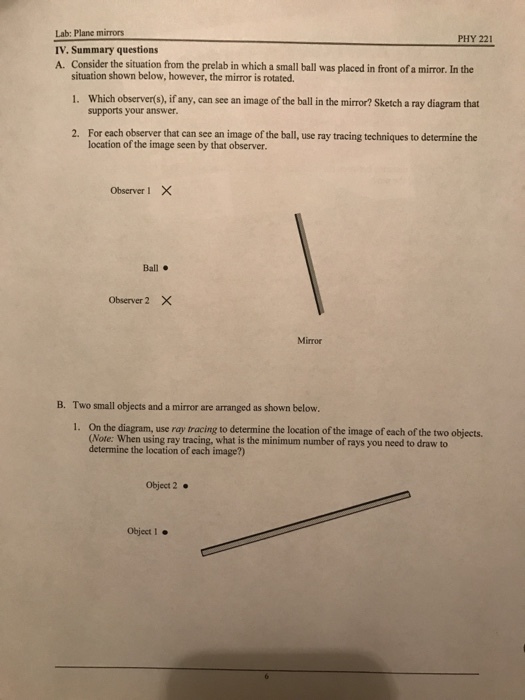

PHY 221 Lab: Plane mirrors IV. Summary questions A. Consider the situation from the prelab in...
Three observers (A, B, and C) stand in front of a plane mirror, as shown in...
Three observers (A, B, and C) stand in front of a plane mirror, as shown in the top view diagram below right. a. Who, if anyone, can see the image of observer A in the mirror? On the diagram at right, sketch one or more rays to support your answer. b. Who, if anyone, can see the image of observer B in the mirror? On the diagram above, sketch one or more rays to support your answer. A small ball...
To practice Tactics Box 18.5 Ray tracing for a convex mirror. The procedure known as ray...
To practice Tactics Box 18.5 Ray tracing for a convex mirror. The procedure known as ray tracing is a pictorial method for understanding image formation when lenses or mirrors are used. It consists in locating the image by the use of just three "special rays." The following Tactics Box explains this procedure for the case of a convex mirror. The diagram below shows the situation described in the problem. The focal length of the mirror is labeled f the scale...
Name: Section: Date: Lab 9 Mirrors - Post Lab Questions 1. According to the Law of...
Name: Section: Date: Lab 9 Mirrors - Post Lab Questions 1. According to the Law of Reflection,fill out the angles in the chart (2 pts each): Angle of Incidence (degree) Angle of Reflection (degree 13 25 76 If the center of curvature of a spherical mirror is 16 em from the edge of the mirror. What is the focal length of the mirror? (3 pts) 2. 3. On the Ray Tracing Template draw: Three principal rays (2 pts each), Image...
Reflection from Plane & Convave Mirrors Snell's n sin 02 Law n2 sine, For the plane...
Reflection from Plane & Convave Mirrors Snell's n sin 02 Law n2 sine, For the plane mirror, we assume the mirror is placed on this page so that it stands vertically along the blue line below, with its length parallel to the page. Take the light source and arrange it to emit a ray of light that lies in the plane of this page. Cast the light ray onto the mirror, so that the ray hits the mirror at an...
Follow the steps above to solve the following problem: An object is 9.0 cm from a...
Follow the steps above to solve the following problem: An object is 9.0 cm from a diverging lens with a focal length of 5.2 cm. Use ray tracing to determine the location of the image. Part A The diagram below shows the situation described in the problem. The focal length of the lens is labeled f; the scale on the optical axis is in centimeters.Draw the three special rays, Ray 1, Ray 2, and Ray 3, as described in the...
please explain and solve only the pre lab If you combine the equations from the previous...
please explain and solve only the pre lab
If you combine the equations from the previous page you should find B. Using the Lens/Mirror Equation So the same equation works for mirrors and lenses because the similar triangles are You should be following along. Start with the above relation and, in the box below, show essentially the same in each case, and the ratios of sides are the same. Now you get to try using this equation. the algebraic steps...
Chapter 10 Lenses Learning Objectives During this lab, you will, use the Law of Sagitta to determ...
Chapter 10 Lenses Learning Objectives During this lab, you will, use the Law of Sagitta to determine the radius of curvature of a lens use the lens equation to determine focal length, . use the lensmaker's formula to determine the index of refraction of a trans- parent material. 10.1 Pre-lab This pre-lab will introduce you to a concept in geometrical optics known as ray tracing. Given an object that emits or reflects light, you can place a lens in the...
Three observers (A, B, and C) stand in front of a plane mirror, as shown in the top view diagram below right. a. Who, if anyone, can see the image of observer A in the mirror? On the diagram at right, sketch one or more rays to support your answer. b. Who, if anyone, can see the image of observer B in the mirror? On the diagram above, sketch one or more rays to support your answer. A small ball...
To practice Tactics Box 18.5 Ray tracing for a convex mirror. The procedure known as ray tracing is a pictorial method for understanding image formation when lenses or mirrors are used. It consists in locating the image by the use of just three "special rays." The following Tactics Box explains this procedure for the case of a convex mirror. The diagram below shows the situation described in the problem. The focal length of the mirror is labeled f the scale...
Name: Section: Date: Lab 9 Mirrors - Post Lab Questions 1. According to the Law of Reflection,fill out the angles in the chart (2 pts each): Angle of Incidence (degree) Angle of Reflection (degree 13 25 76 If the center of curvature of a spherical mirror is 16 em from the edge of the mirror. What is the focal length of the mirror? (3 pts) 2. 3. On the Ray Tracing Template draw: Three principal rays (2 pts each), Image...
Reflection from Plane & Convave Mirrors Snell's n sin 02 Law n2 sine, For the plane mirror, we assume the mirror is placed on this page so that it stands vertically along the blue line below, with its length parallel to the page. Take the light source and arrange it to emit a ray of light that lies in the plane of this page. Cast the light ray onto the mirror, so that the ray hits the mirror at an...
Follow the steps above to solve the following problem: An object is 9.0 cm from a diverging lens with a focal length of 5.2 cm. Use ray tracing to determine the location of the image. Part A The diagram below shows the situation described in the problem. The focal length of the lens is labeled f; the scale on the optical axis is in centimeters.Draw the three special rays, Ray 1, Ray 2, and Ray 3, as described in the...
please explain and solve only the pre lab
If you combine the equations from the previous page you should find B. Using the Lens/Mirror Equation So the same equation works for mirrors and lenses because the similar triangles are You should be following along. Start with the above relation and, in the box below, show essentially the same in each case, and the ratios of sides are the same. Now you get to try using this equation. the algebraic steps...
Chapter 10 Lenses Learning Objectives During this lab, you will, use the Law of Sagitta to determine the radius of curvature of a lens use the lens equation to determine focal length, . use the lensmaker's formula to determine the index of refraction of a trans- parent material. 10.1 Pre-lab This pre-lab will introduce you to a concept in geometrical optics known as ray tracing. Given an object that emits or reflects light, you can place a lens in the...
