A vertical tube open at the top contains 4.4cm of oil (density 0.82 g/cm3) floating on...

A vertical tube open at the top contains 4.4cm of oil (density 0.82 g/cm3) floating on 4.4cm of water.

Part A

Find the gauge pressure at the bottom of the tube.

Express your answer using two significant figures.
P =   Pa

SubmitMy AnswersGive Up
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

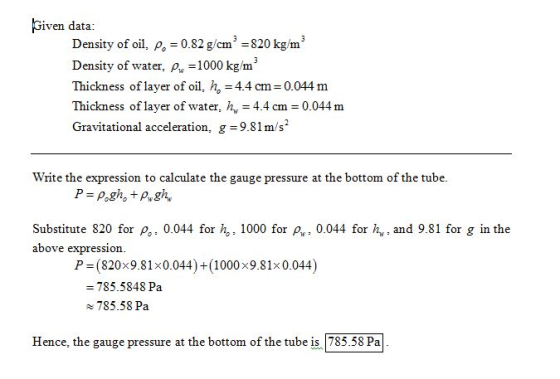

Given data: Density of oil, p 0.82 g/cm3 820 kg/m3 Density of water, p, 1000 kg/m Thickness of layer of oil, =4.4 cm=0.044 m

0 1
Add a comment
Know the answer?
Add Answer to:
A vertical tube open at the top contains 4.4cm of oil (density 0.82 g/cm3) floating on...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Question 1 Constants PartA A barrel contains a 0.155-m layer of oil floating on water that...

    Question 1 Constants PartA A barrel contains a 0.155-m layer of oil floating on water that is o.235 n deep. The density of the oil is 590 kg/u3 What is the gauge pressure at the oil-water interface? uado redo resat keyboard shortcuts Pa Submit Request Answer Part B What is the gauge pressure at the bottom of the barrel? enpBes Smbol Lado jedo reslat keyboard shorteuts bel Pa Submit Request Answer

  • A long vertical tube closed at the bottom contains three layers of liquids. The bottom layer...

    A long vertical tube closed at the bottom contains three layers of liquids. The bottom layer is 5.00x10-1 m of mercury, the middle layer is 1.50 m of water, and the top layer is 1.50 m of oil. The density of the oil is 9.20x102 kg/m3. The density of mercury is 1.36x104 kg/m3. What is the pressure at the bottom of the tube due to the three liquids? Explain principle used. (Ans:9.49 x 104 Pa)

  • Methane, CH4, reacts with I2 according to the reaction CH4(g)+I2(g)⇌CH3I(g)+HI(g) At 630 K, Kp for this...

    Methane, CH4, reacts with I2 according to the reaction CH4(g)+I2(g)⇌CH3I(g)+HI(g) At 630 K, Kp for this reaction is 2.26×10−4. A reaction was set up at 630 K with initial partial pressures of methane of 105.1 torr and of 7.96 torr for I2. Part A Calculate the pressure, in torr, of CH4. Express your answer to four significant figures and include the appropriate units. SubmitMy AnswersGive Up Part B Calculate the pressure, in torr, of I2. Express your answer to three...

  • A U-shaped tube open to the air at both ends contains some mercury. A quantity of...

    A U-shaped tube open to the air at both ends contains some mercury. A quantity of water is carefully poured into the left arm of the U-shaped tube until the vertical height of the water column is hW = 23.0 cm . What is the gauge pressure at the water-mercury interface? Express your answer in pascals. Calculate the vertical distance h from the top of the mercury in the right-hand arm of the tube to the top of the water...

  • h3 h2 A "U" shaped tube (with a constant radius) is filled with water and oil...

    h3 h2 A "U" shaped tube (with a constant radius) is filled with water and oil as shown. The water is a height h1 0.38 m above the bottom of the tube on the left side of the tube and a height h 0.12 m above the bottom of the tube on the right side of the tube The oil is a height h3-0.32 m above the water. Around the tube the atmospheric pressure is PA 101300 Pa. Water has...

  • (a) A large, open at the top, upright cylindrical tank contains fuel oil with a density...

    (a) A large, open at the top, upright cylindrical tank contains fuel oil with a density of 0.890 x 103 kg/m². If the air pressure is 101.3 kPa, determine the absolute pressure (in Pa) in the fluid at a depth of 32.5 m. 283465x The absolute pressure at any point in the fluid is the sum of atmospheric pressure and the pressure due to the depth of the fluid. Did you remember to account for atmospheric pressure? Pa (b) Determine...

  • Exercise 14.54 with feedback For the following reaction, Kc = 255 at 1000 K. CO (g)...

    Exercise 14.54 with feedback For the following reaction, Kc = 255 at 1000 K. CO (g) + Cl2 (g) ⇌ COCl2 (g) A reaction mixture initially contains a COconcentration of 0.1550 M and a Cl2concentration of 0.171 M at 1000 K. Part A What is the equilibrium concentration of CO at 1000 K? Express your answer in molarity to three significant figures. [CO] =   M   SubmitMy AnswersGive Up Part B What is the equilibrium concentration of Cl2 at 1000 K?...

  • A U-tube contains liquid of unknown density. An oil of density 770 kg/m³ is poured into...

    A U-tube contains liquid of unknown density. An oil of density 770 kg/m³ is poured into one arm of the tube until the oil column is 13.5 cm high. The oil-air interface is then 4.5 cm above the liquid level in the other arm of the U-tube. Find the density of the liquid. A raft is made of 11 logs lashed together. Each is 38.0 cm in diameter and has a length of 7.00 m. How many people (whole number)...

  • A graduated cylinder contains a 0.6 m column of water (density 1000 kg/m3) and a 0.1...

    A graduated cylinder contains a 0.6 m column of water (density 1000 kg/m3) and a 0.1 m column of oil (density 850 kg/m3), which rests on top of the water column.  The test tube is open to the atmosphere (Patm=101,300 Pa).  What is the pressure at the midpoint in the water column (point P)?

  • A U-tube with a cross-sectional area of 1.00 cm2 is open to the atmosphere at both...

    A U-tube with a cross-sectional area of 1.00 cm2 is open to the atmosphere at both ends, Water is poured into the tube until the water rises part-way along the straight sides, and then 5.00 cm3 of oil is poured into one end. As a result, the top surface of the oil ends up 0.550 cm higher than the water surface on the other side of the U. What is the density of the oil?
