A U-shaped tube open to the air at both ends contains some mercury. A quantity of...

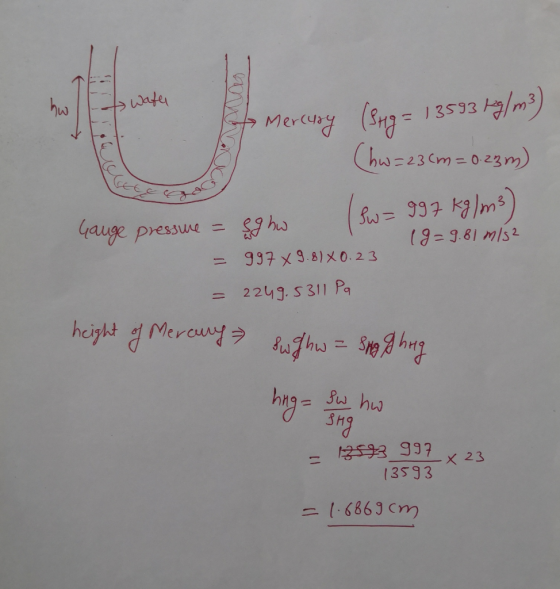

A U-shaped tube open to the air at both ends contains some mercury. A quantity of water is carefully poured into the left arm of the U-shaped tube until the vertical height of the water column is hW = 23.0 cm .
What is the gauge pressure at the water-mercury interface? Express your answer in pascals.
Calculate the vertical distance h from the top of the mercury in the right-hand arm of the tube to the top of the water in the left-hand arm. Express your answer in centimeters.
Homework Answers
Add Answer to:
A U-shaped tube open to the air at both ends contains some
mercury. A quantity of...
A U-shaped tube open to the air at both ends contains some mercury.
A U-shaped tube open to the air at both ends contains some mercury. A quantity of water is carefully poured into the left arm of the U-shaped tube until the vertical height \(h_{W}\) of the water column is \(22.0 \mathrm{~cm}\) as shown in (Figure 1)
A U-shaped tube, open to the air on both ends, contains mercury. Water is poured into...
A U-shaped tube, open to the air on both ends, contains mercury. Water is poured into the left arm until the water column is 16.1 cm deep. How far upward from its initial position does the mercury in the right arm rise? Express your answer using three significant figures. Give the answer in mm
A U-shaped tube, open to the air on both ends, contains mercury. Water is poured into...
A U-shaped tube, open to the air on both ends, contains mercury. Water is poured into the left arm until the water column is 11.3cm deep. How far upward from its initial position does the mercury in the right arm rise?(In mm)
A U-shaped tube, open to the air on both ends, contains mercury. Water is poured into...
A U-shaped tube, open to the air on both ends, contains mercury. Water is poured into the left arm until the water column is 17.0 cm deep. Part A How far upward from its initial position does the mercury in the right arm rise?
Water is poured into a u-shaped tube that’s open on both ends. Oil (typical) is poured...
Water is poured into a u-shaped tube that’s open on both ends. Oil (typical) is poured into one end until it reaches a height of 25 cm above the surface of the water. How much does the water rise on the other end of the tube from it’s original level?
A) A simple U-tube that is open at both ends is partially filled with a liquid...
A) A simple U-tube that is open at both ends is partially filled with a liquid of density 222 kg/m3. Water is then poured into one arm of the tube, forming a column 13 cm in height, as shown in the following diagram. The density of heavy liquid is 1000 kg/m3. What is the difference, h1, in the heights of the two liquid surfaces? Answer in units of cm. b) A simple U-tube that is open at both ends is...
A U-tube open at both ends is partially filled with water. Oil (p=750kg/m^3) is then poured...
A U-tube open at both ends is partially filled with water. Oil (p=750kg/m^3) is then poured into the right arm and forms a column L=5.00cm high. (a) Determine the difference h in the heights of the two liquid surfaces. (b) The right arm is then shielded from any air motion while air is blown across the top of the left arm until the surfaces of the two liquids are at the same height. Determine the speed of the air being...
Figure (a) below shows a U-shaped tube containing an amount of mercury. The left arm of...
Figure (a) below shows a U-shaped tube containing an amount of mercury. The left arm of the tube has cross-sectional area A, of 10.8 cm, and the right arm has a cross-sectional area A, of 4.00 cm. In both arms, the mercury is at the same level, as shown. In figure (b) below. 100 g of water is poured into the right arm of the tube and sits atop the mercury, all of it within the right arm. The mercury...
Problem z (3 pts.). mm (millimeters) contains mercury. A simple U-shaped tube with identical sides of...
Problem z (3 pts.). mm (millimeters) contains mercury. A simple U-shaped tube with identical sides of a diameter 25 mm (millimeters) conta We have poured 718 g of water into its left arm. (a) If adding 815 g of oil into its right arm will bring the surface of the mercury its interface with another liquid) to the same level on each side of our tube, what is the density of the on (0) What is the pressure at each...
contains mercury Problem 2. (3 pts.). A simple U-shaped tube with identical sides of a diameter...
contains mercury Problem 2. (3 pts.). A simple U-shaped tube with identical sides of a diameter 25 mm (millimeters) contains me We have poured 7189 of water into its left arm. (a) If adding 815g of oil into its right arm will bring the surface of the mercury (its interface with another liquid) to the same level on each side of our tube, what is the density of the oil? (6) What is the pressure at each of the points...
A U-shaped tube open to the air at both ends contains some mercury. A quantity of water is carefully poured into the left arm of the U-shaped tube until the vertical height \(h_{W}\) of the water column is \(22.0 \mathrm{~cm}\) as shown in (Figure 1)
Figure (a) below shows a U-shaped tube containing an amount of mercury. The left arm of the tube has cross-sectional area A, of 10.8 cm, and the right arm has a cross-sectional area A, of 4.00 cm. In both arms, the mercury is at the same level, as shown. In figure (b) below. 100 g of water is poured into the right arm of the tube and sits atop the mercury, all of it within the right arm. The mercury...
Problem z (3 pts.). mm (millimeters) contains mercury. A simple U-shaped tube with identical sides of a diameter 25 mm (millimeters) conta We have poured 718 g of water into its left arm. (a) If adding 815 g of oil into its right arm will bring the surface of the mercury its interface with another liquid) to the same level on each side of our tube, what is the density of the on (0) What is the pressure at each...
contains mercury Problem 2. (3 pts.). A simple U-shaped tube with identical sides of a diameter 25 mm (millimeters) contains me We have poured 7189 of water into its left arm. (a) If adding 815g of oil into its right arm will bring the surface of the mercury (its interface with another liquid) to the same level on each side of our tube, what is the density of the oil? (6) What is the pressure at each of the points...
