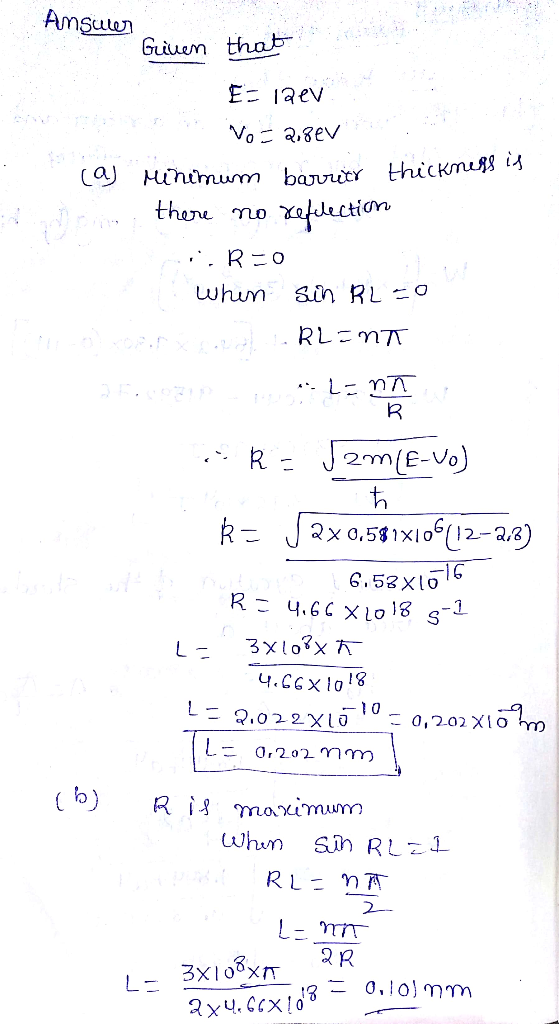

Let 12.0 eV electrons approach a potential barrier of height 2.8 eV. (a) For what minimum...
Let 12.0 eV electrons approach a potential barrier of height 2.8 eV.
(a) For what minimum barrier thickness is there no
reflection?
.................................. nm
(b) For what minimum barrier thickness is the reflection a
maximum?
................................... nm
please answer the quesion
