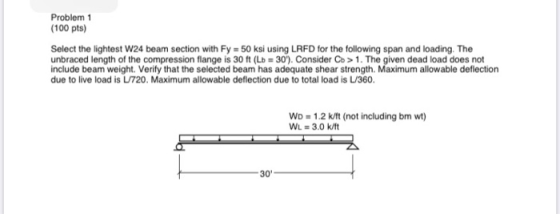

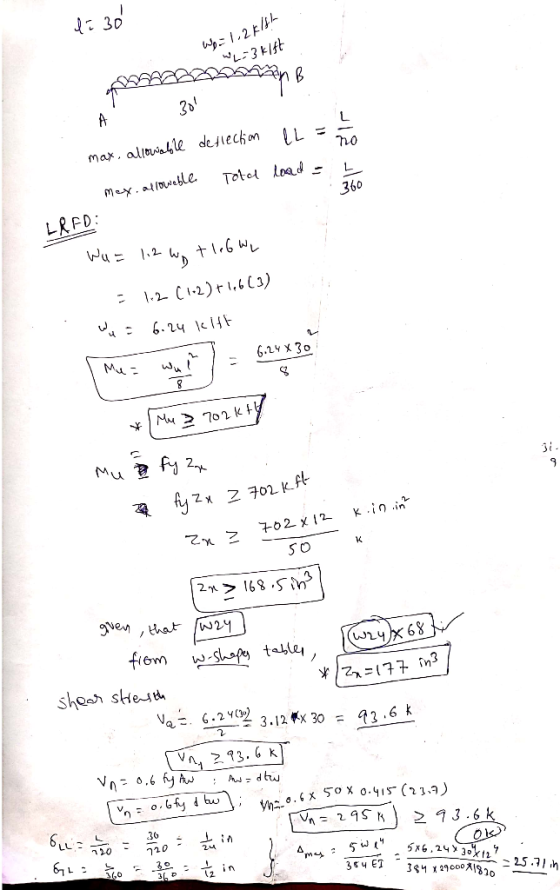

Problem 1 (100 pts) Select the lightest W24 beam section with Fy = 50 ksi using...
Problem 5: Select the lightest steel beam. Fy=50 ksi. The lateral bracing is provided at the...
Problem 5: Select the lightest steel beam. Fy=50 ksi. The lateral bracing is provided at the both ends and at the two points 10 ft each from the ends. Neglect Mn Fy 2 weight of the beam. (1) Check moment. (2) Check shear. (3) Determine the maximum deflection. 50 Pin Pin Po=22k PL=45k PD-22k PL 45k toft 10'x3=30'
Problem 5: Select the lightest steel beam. Fy=50 ksi. The lateral bracing is provided at the both ends and at the two...
Select the lightest W shape for the loading below. All loads are dead loads and the...
Select the lightest W shape for the loading below. All loads are dead loads and the 2 k/ft includes th beam weight. The steel is A992, the compression flange is supported at the ends and at the concentrated load and C 1.0. The maximum service load deflection cannot exceed 1/1000 of the span. Design for moment and check shear and deflection. Identify what zone the beam is in and check that it does not exceed zone 1 maximum strength. 13...
Problem 3: Design of Steel Beam for Bending with Varying Unbraced Lengths Select the lightest A992...
Problem 3: Design of Steel Beam for Bending with Varying Unbraced Lengths Select the lightest A992 steel W-shape for the beam shown below using LRFD. Only consider design (neglect shear a bracing situations: a. Continuous lateral support of the compression flange b. Lateral support at beam ends and at the point of the concentrated load c. Lateral support only at beam ends PD = 10k PL-20k WD-3.33 k/ft w, = 6.67 k/ft 10' 20' 30'
1) Select the lightest section that can be used for the beam shown below if lateral...
1) Select the lightest section that can be used for the beam
shown below if lateral bracing is provided only at the ends of the
beam. Given loads are service loads (dead load given includes beam
dead weight). Use Fy= 50ksi. The point load is applied at
midspan.
4) Select the lightest section that can be used for the beam shown below if lateral bracing is provided only at the ends of the beam. Given loads are service loads (dead...
Please complete the 3 design problems. Problem 1. Select the lightest W12 section available to support...
Please complete the 3 design problems. Problem 1. Select the lightest W12 section available to support working tensile loads of PD - 250k and PL - 325k. The member is to be 30ft long and is assumed to have two lines of holes for 1-inch bolts in each flange. There will be at least three bolts in each line 4-in on center. Neglect Block Shear Problem 2. Select the lightest available W12 section to support the axial loads PD -...
Select the lightest adequate W-section with a nominal depth of 14 in or less, for a...
Select the lightest adequate W-section with a nominal depth of 14 in or less, for a 34ft. beam with a total uniformly distributed load of 1000 lb/ft. Select the beam based only on bending stress then check to see if deflection is O.K. LL Allowable deflection = L/360 TL Allowable deflection = L/240 Fb = 2/3 FY Fy = 50,000 lb/in2 LL is 70% of total load. No figure given. Find M max = Sr = Selection = delta LL...
2. Calculate the instantaneous deflections: 6pt, due to the dead and live loads together, and o, due to the live load only. Use fy 60,000 psi, f in the WD value. 4000 psi, and n 8. Beam weight is...
2. Calculate the instantaneous deflections: 6pt, due to the dead and live loads together, and o, due to the live load only. Use fy 60,000 psi, f in the WD value. 4000 psi, and n 8. Beam weight is incl WD 1.6 k/ft WL 2.4 k/ft 24 in. 4 #10 30 ft
2. Calculate the instantaneous deflections: 6pt, due to the dead and live loads together, and o, due to the live load only. Use fy 60,000 psi, f in...
1.) Select the lightest W beam to support the following loads 4 in. concrete slab 15 ft 40 psf dead load 15 ft 100...
1.) Select the lightest W beam to support the following loads 4 in. concrete slab 15 ft 40 psf dead load 15 ft 100 psf live load Fy- 50 ksi 35 ft 15 ft Wu 35 ft
1.) Select the lightest W beam to support the following loads 4 in. concrete slab 15 ft 40 psf dead load 15 ft 100 psf live load Fy- 50 ksi 35 ft 15 ft Wu 35 ft
Please refer AISC 15th edition 2. Select the lightest W shape to carry a uniformly distributed...
Please refer AISC 15th edition
2. Select the lightest W shape to carry a uniformly distributed dead load of 0.5 kips/ft and a live load of 1.0 kips/ft on a simply supported span of 42 ft. Adequate lateral support is provided. The live load deflection is limited to 360, Use A572 Grade 50 steel and LRFD. (credit weight 30)
Select the lightest adequate W-section with a nominal depth of 14 in or less, for a...
Select the lightest adequate W-section with a nominal depth of 14 in or less, for a 34ft. beam with a total uniformly distributed load of 1000 lb/ft. Select the beam based only on bending stress then check to see if deflection is O.K. LL Allowable deflection = L/360 TL Allowable deflection = L/240 Fb = 2/3 FY Fy = 50,000 lb/in2 LL is 70% of total load M max = Select one: a. 4.25 k-ft b. 144.5 k-ft c. 101.1...
Problem 5: Select the lightest steel beam. Fy=50 ksi. The lateral bracing is provided at the both ends and at the two points 10 ft each from the ends. Neglect Mn Fy 2 weight of the beam. (1) Check moment. (2) Check shear. (3) Determine the maximum deflection. 50 Pin Pin Po=22k PL=45k PD-22k PL 45k toft 10'x3=30'
Problem 5: Select the lightest steel beam. Fy=50 ksi. The lateral bracing is provided at the both ends and at the two...
Select the lightest W shape for the loading below. All loads are dead loads and the 2 k/ft includes th beam weight. The steel is A992, the compression flange is supported at the ends and at the concentrated load and C 1.0. The maximum service load deflection cannot exceed 1/1000 of the span. Design for moment and check shear and deflection. Identify what zone the beam is in and check that it does not exceed zone 1 maximum strength. 13...
Problem 3: Design of Steel Beam for Bending with Varying Unbraced Lengths Select the lightest A992 steel W-shape for the beam shown below using LRFD. Only consider design (neglect shear a bracing situations: a. Continuous lateral support of the compression flange b. Lateral support at beam ends and at the point of the concentrated load c. Lateral support only at beam ends PD = 10k PL-20k WD-3.33 k/ft w, = 6.67 k/ft 10' 20' 30'
1) Select the lightest section that can be used for the beam
shown below if lateral bracing is provided only at the ends of the
beam. Given loads are service loads (dead load given includes beam
dead weight). Use Fy= 50ksi. The point load is applied at
midspan.
4) Select the lightest section that can be used for the beam shown below if lateral bracing is provided only at the ends of the beam. Given loads are service loads (dead...
Please complete the 3 design problems. Problem 1. Select the lightest W12 section available to support working tensile loads of PD - 250k and PL - 325k. The member is to be 30ft long and is assumed to have two lines of holes for 1-inch bolts in each flange. There will be at least three bolts in each line 4-in on center. Neglect Block Shear Problem 2. Select the lightest available W12 section to support the axial loads PD -...
2. Calculate the instantaneous deflections: 6pt, due to the dead and live loads together, and o, due to the live load only. Use fy 60,000 psi, f in the WD value. 4000 psi, and n 8. Beam weight is incl WD 1.6 k/ft WL 2.4 k/ft 24 in. 4 #10 30 ft
2. Calculate the instantaneous deflections: 6pt, due to the dead and live loads together, and o, due to the live load only. Use fy 60,000 psi, f in...
1.) Select the lightest W beam to support the following loads 4 in. concrete slab 15 ft 40 psf dead load 15 ft 100 psf live load Fy- 50 ksi 35 ft 15 ft Wu 35 ft
1.) Select the lightest W beam to support the following loads 4 in. concrete slab 15 ft 40 psf dead load 15 ft 100 psf live load Fy- 50 ksi 35 ft 15 ft Wu 35 ft
Please refer AISC 15th edition
2. Select the lightest W shape to carry a uniformly distributed dead load of 0.5 kips/ft and a live load of 1.0 kips/ft on a simply supported span of 42 ft. Adequate lateral support is provided. The live load deflection is limited to 360, Use A572 Grade 50 steel and LRFD. (credit weight 30)
