Homework Answers
Add Answer to:

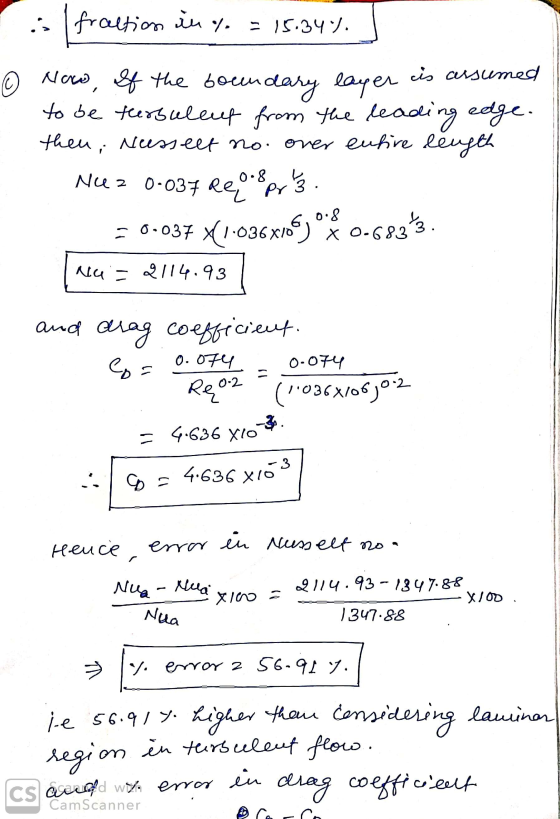

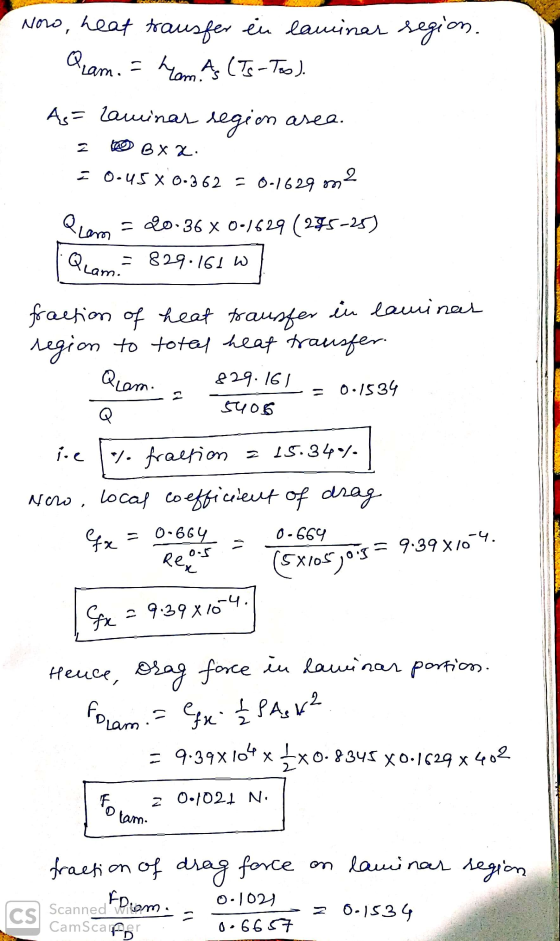

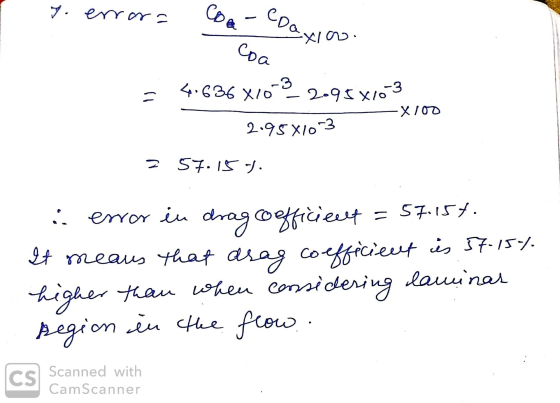

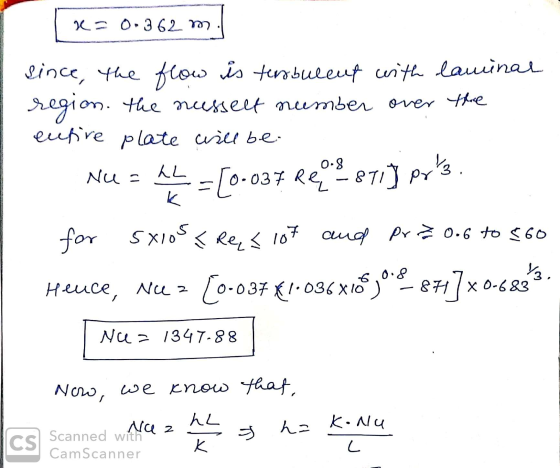

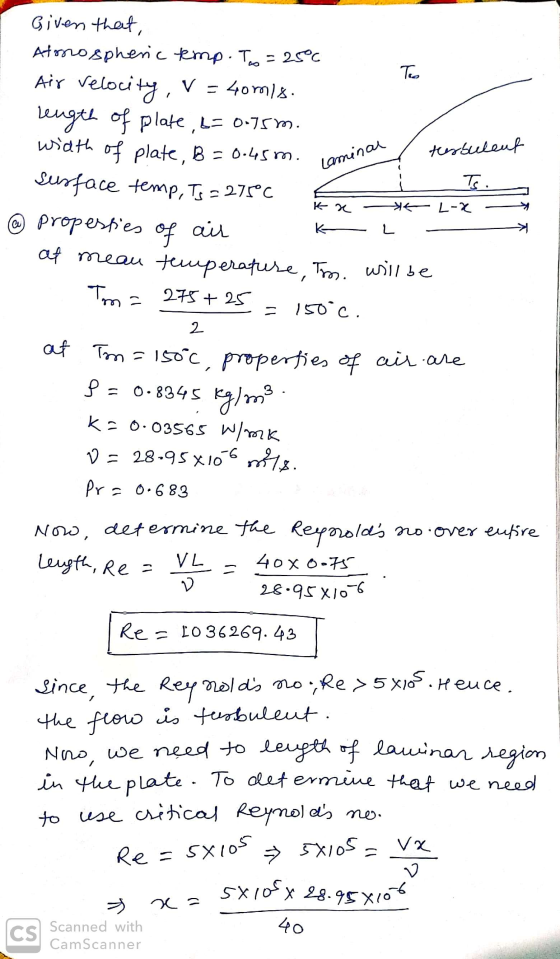

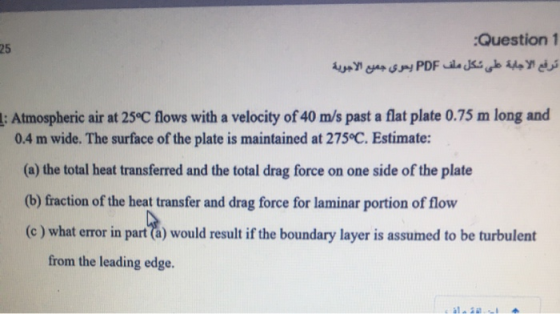

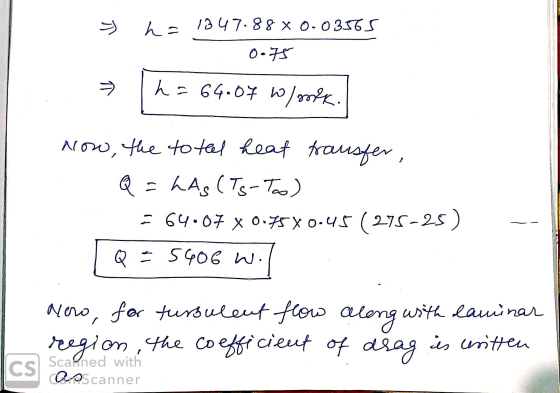

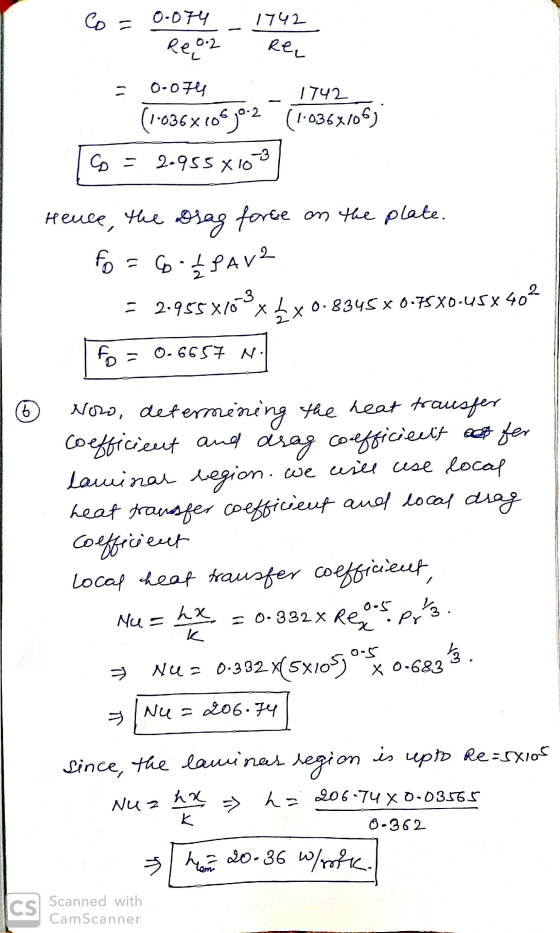

Question 1 25 ترفع الاجابة على شكل ملف PDF يحوي جميع الأجوية 1: Atmospheric air at...
Water at 15.6 [°C] (with kinematic viscosity of 1.12 [cSt]) flows over a flat plate generatinga boundary layer. The thickness of the boundary layer at 0.50 [m] from the leading edge is 6 [mm] (a)...
Water at 15.6 [°C] (with kinematic viscosity of 1.12 [cSt]) flows over a flat plate generatinga boundary layer. The thickness of the boundary layer at 0.50 [m] from the leading edge is 6 [mm] (a) Is the boundary layer laminar or turbulent at that point? (b) At what distance it becomes turbulent? (c) What is the layer thickness at that point?
Water at 15.6 [°C] (with kinematic viscosity of 1.12 [cSt]) flows over a flat plate generatinga boundary layer. The...
Problem 1: Atmospheric air at 25°C flows over both surfaces of 2 m long flat plate...
Problem 1: Atmospheric air at 25°C flows over both surfaces of 2 m long flat plate maintained at 125°C. For upper surface, velocity of air is 1 m/s and for lower surface, velocity is 10 m/s. (Rex,c = 5x105) (a) Determine the flow condition for upper and lower surfaces. (Laminar, or turbulent). If the condition is that laminar to turbulent is taking place, calculate the position where transition from the laminar to turbulent happens. (b) Determine the rate of heat...
A thin, flat plate of 0.6 m square is immersed in a parallel stream of air at atmospheric pressure and 15 ºC flowing at a velocity of 6 m/s. Neglect edge effects. a) Determine the drag force exerted o...
A thin, flat plate of 0.6 m square is immersed in a parallel stream of air at atmospheric pressure and 15 ºC flowing at a velocity of 6 m/s. Neglect edge effects. a) Determine the drag force exerted on the plate. b) Determine the boundary layer thickness and the local drag coefficient at a distance 0.3 m from the leading edge.
Required information Air at 25°C and 1 atm is flowing over a long flat plate with...
Required information Air at 25°C and 1 atm is flowing over a long flat plate with a velocity of 7 m/s. The density and kinematic viscosity of air at 1 atm and 25°C are p= 1.184 kg/m3 and V = 1.562x10-5 m2/s. Calculate the distance from the leading edge of the plate where the flow becomes turbulent. The distance from the leading edge of the plate is m. Required information Air at 25°C and 1 atm is flowing over a...
Air at 25 °C and 1 atm is flowing over a long flat plate with a...
Air at 25 °C and 1 atm is flowing over a long flat plate with a velocity of 8 m/s. (a) Determine the distance from the leading edge of the plate where the flow becomes turbulent. (b) What will be the boundary layer thickness at the end of the plate? (c) If the plate is a 2m by 2 m square, what will be the friction drag acting on the plate? Schematic Given ssumptions Find v=8m/s xcr ,FD ,δ@x=L L-2m...
Heat Transfer Please be neat and organized for a thumbs up! Problem 3 Atmospheric air at...
Heat Transfer
Please be neat and organized for a thumbs up!
Problem 3 Atmospheric air at T 300 K and a free stream velocity of u 10 m/s flows over a flat plate L = 2 m long that is maintained at a uniform temperature T-320 K. (a) Calculate the average heat transfer coefficient over the region where the boundary layer is laminar. What is the boundary layer thickness at this location? plate as well as the velocity boundary layer...
Problem No-3: Air at 20 c(p-1.21kg/mH-38x107 kg.m/s) and with a free stream velocity o 40 m/s...
Problem No-3: Air at 20 c(p-1.21kg/mH-38x107 kg.m/s) and with a free stream velocity o 40 m/s flows past a smooth thin plate which is 3-m wide and 10-m long in the flow direction. turbulent boundary layer from the leading edge determine: (a) the boundary layer thickness 6 m from the leading edge (b) the drag coefficient and drag force exerted by the fluid on the thin plate Take density 1.2 kg/m3 and kinematic viscosity as 1.49 x 10-s m'/s: (12p)...
Exercise 2 Air at 20 °C and 1 atm flows over a flat plate at 50...
Exercise 2 Air at 20 °C and 1 atm flows over a flat plate at 50 m/s. The plate is 300 cm long and is maintained at 60C. The width of the plate is 2 m. The critical Rec = 5 x 105 The properties are Conductivity k = 0.0263 W/mK, kinematic viscosity nu = v = 15.89 x 10-6 m²/s, Prandtl number is Pr=0.707 Density rho = p = 1.128 kg/m3 1. Determine the critical length Xc 2. Determine...
Air at atmospheric pressure and 20 °C flows over a plate with the surface heat flux...
Air at atmospheric pressure and 20 °C flows over a plate with the surface heat flux specified as 20 WImfor 0 <x < 15 cm 10 W/mo 15 cm. Derive the variation of wall temperature with the distance x from the leading edge in the laminar boundary layer region and evaluate the wall temperature numerically at 30 cm.
Start by checking your Reynolds number (Re) at the end of the plate, where it will...
Start by checking your Reynolds number (Re) at the end of the
plate, where it will be at a maximum. This will determine if your
boundary layer is simply laminar along the length of the plate or
if it becomes turbulent (the "mixed BL" condition). Once you know
the conditions of the flow, you can solve for the velocity BL
thickness directly with an equation from the list of external flow
correlations (posted). Your properties should be looked up at...
Water at 15.6 [°C] (with kinematic viscosity of 1.12 [cSt]) flows over a flat plate generatinga boundary layer. The thickness of the boundary layer at 0.50 [m] from the leading edge is 6 [mm] (a) Is the boundary layer laminar or turbulent at that point? (b) At what distance it becomes turbulent? (c) What is the layer thickness at that point?
Water at 15.6 [°C] (with kinematic viscosity of 1.12 [cSt]) flows over a flat plate generatinga boundary layer. The...
Problem 1: Atmospheric air at 25°C flows over both surfaces of 2 m long flat plate maintained at 125°C. For upper surface, velocity of air is 1 m/s and for lower surface, velocity is 10 m/s. (Rex,c = 5x105) (a) Determine the flow condition for upper and lower surfaces. (Laminar, or turbulent). If the condition is that laminar to turbulent is taking place, calculate the position where transition from the laminar to turbulent happens. (b) Determine the rate of heat...
Required information Air at 25°C and 1 atm is flowing over a long flat plate with a velocity of 7 m/s. The density and kinematic viscosity of air at 1 atm and 25°C are p= 1.184 kg/m3 and V = 1.562x10-5 m2/s. Calculate the distance from the leading edge of the plate where the flow becomes turbulent. The distance from the leading edge of the plate is m. Required information Air at 25°C and 1 atm is flowing over a...
Air at 25 °C and 1 atm is flowing over a long flat plate with a velocity of 8 m/s. (a) Determine the distance from the leading edge of the plate where the flow becomes turbulent. (b) What will be the boundary layer thickness at the end of the plate? (c) If the plate is a 2m by 2 m square, what will be the friction drag acting on the plate? Schematic Given ssumptions Find v=8m/s xcr ,FD ,δ@x=L L-2m...
Heat Transfer
Please be neat and organized for a thumbs up!
Problem 3 Atmospheric air at T 300 K and a free stream velocity of u 10 m/s flows over a flat plate L = 2 m long that is maintained at a uniform temperature T-320 K. (a) Calculate the average heat transfer coefficient over the region where the boundary layer is laminar. What is the boundary layer thickness at this location? plate as well as the velocity boundary layer...
Problem No-3: Air at 20 c(p-1.21kg/mH-38x107 kg.m/s) and with a free stream velocity o 40 m/s flows past a smooth thin plate which is 3-m wide and 10-m long in the flow direction. turbulent boundary layer from the leading edge determine: (a) the boundary layer thickness 6 m from the leading edge (b) the drag coefficient and drag force exerted by the fluid on the thin plate Take density 1.2 kg/m3 and kinematic viscosity as 1.49 x 10-s m'/s: (12p)...
Exercise 2 Air at 20 °C and 1 atm flows over a flat plate at 50 m/s. The plate is 300 cm long and is maintained at 60C. The width of the plate is 2 m. The critical Rec = 5 x 105 The properties are Conductivity k = 0.0263 W/mK, kinematic viscosity nu = v = 15.89 x 10-6 m²/s, Prandtl number is Pr=0.707 Density rho = p = 1.128 kg/m3 1. Determine the critical length Xc 2. Determine...
Air at atmospheric pressure and 20 °C flows over a plate with the surface heat flux specified as 20 WImfor 0 <x < 15 cm 10 W/mo 15 cm. Derive the variation of wall temperature with the distance x from the leading edge in the laminar boundary layer region and evaluate the wall temperature numerically at 30 cm.
Start by checking your Reynolds number (Re) at the end of the
plate, where it will be at a maximum. This will determine if your
boundary layer is simply laminar along the length of the plate or
if it becomes turbulent (the "mixed BL" condition). Once you know
the conditions of the flow, you can solve for the velocity BL
thickness directly with an equation from the list of external flow
correlations (posted). Your properties should be looked up at...
