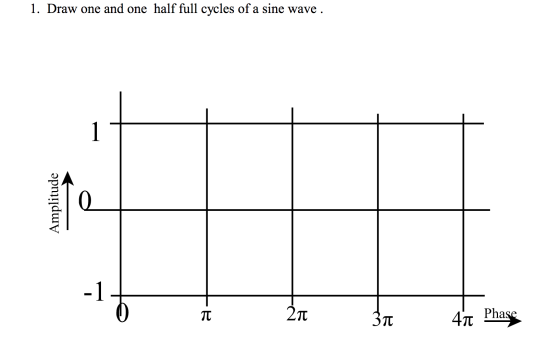

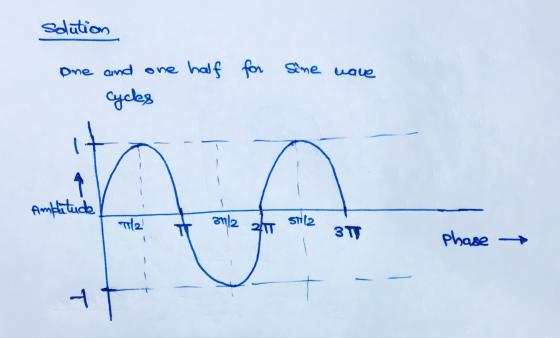

1. Draw one and one half full cycles of a sine wave . Amplitude 0 -17...
The graph to the left shows a red sine wave and a black sine wave. When...
The graph to the left shows a red sine wave and a black sine wave. When you start t black sine wave will be hidden behind the red one. Play around with the red sine wav by changing the values for amplitude, frequency, and phase to see how they change the shape of the wave. Questions to Answer 1) Which setting changes maximum and minimum? A2) Which setting shifts the start and end left or right? 3) Which setting changes...
Determine the Fourier series expressions for the periodic voltage functions for the full wave rectified sine...
Determine the Fourier series expressions for the periodic voltage functions for the full wave rectified sine wave shown in Figure b and the half wave rectified sine wave shown in Figure c. v(t) 0 2T 3T -T
Explain half wave and full wave rectification. Draw the circuit diagrams for half wave, full wave...
Explain half wave and full wave rectification. Draw the circuit diagrams for half wave, full wave bridge and center tapped rectifiers. Explain the rectification process with timing diagrams showing the input and output waveforms. Also discuss the PIV voltage ratings of each case. (4 Marks)
A sine wave with wavelength 10 cm and amplitude 1 cm moves in the positive x...
A sine wave with wavelength 10 cm and amplitude 1 cm moves in the positive x direction with speed 12 cm/s. What would be the direction of the velocity of a particle located at position x=0 and time t=1s
Write an equation for a sine wave with amplitude 0.129 m, wavelength 0.200 m, and wave...
Write an equation for a sine wave with amplitude 0.129 m, wavelength 0.200 m, and wave speed 6.89 m/s traveling in the -x-direction. y(x, t) = (a m)sin[(b s^-1)t + (c m^-1)x] where a = b = c =
Write an equation for a sine wave with amplitude 0.120 m, wavelength 0.293 m, and wave...
Write an equation for a sine wave with amplitude 0.120 m, wavelength 0.293 m, and wave speed 6.41 m/s traveling in the -x-direction. y(x,t) = (a m)sin[( b s-1)t + (c m-1)x] where a = b = c =
Problem 1. Find the Fourier series expansion of a half-wave rectified sine wave depicted below. AS(0)...
Problem 1. Find the Fourier series expansion of a half-wave rectified sine wave depicted below. AS(0) Answer: f(t) = 1+sin at cos2nt 1 nr 15 2 Cos 4t -cost + ... 35 Problem 2. Find the Fourier series approximation of the following periodic function f(x), where the first two leading cosine and sine functions must be included. Angle sum formulas for sine / cosine functions f(x) sin(A + B) = sin A cos B + cos A sin B sin(A...
The oscilloscope display below is connected to a sine wave of 100 Hz frequency and 4...
The oscilloscope display below is connected to a sine wave of 100 Hz frequency and 4 volt amplitude, 100 us seconds/div, and 2 volts/div. What control(s) on the oscilloscope need to be adjusted to bring this signal into focus so that it displays a sine wave? The oscilloscope display below is connected to a sine wave of 150 Hz frequency , 2 ms seconds/div, and 1 volts/div. What control(s) on the oscilloscope need to be adjusted to bring this signal...
A 1 hz sine wave that starts at zero with amplitude zero is generated. if you...
A 1 hz sine wave that starts at zero with amplitude zero is generated. if you sample at 2Hz (the recommended Nyquist rate of sampling), you get zero at zero, zero at .5, and zero at 1. what should be done to make sure you capture the signal appropriately? how would you capture a 1hz signal in the real world scenario? is this a failure of the nyquist theorem?
Page 1. (a) Prove that if the voltage across a resistor Ri is a sine wave with amplitude Vcc, then the average power dissipated during one cycle is given by Vec/2R (b) A Class B BJT output stage...
Page 1. (a) Prove that if the voltage across a resistor Ri is a sine wave with amplitude Vcc, then the average power dissipated during one cycle is given by Vec/2R (b) A Class B BJT output stage is shown in Fig. I. Assume that Vout(t) = Vcc. sin wt; Voe >> VCE(oat); and . Also ignore any crossover distortion effects due to the deddband in the voltage transfer characteristic. Sketch the waveforms for lci(t), Ic2(t) and It(t). (c) Find...
The graph to the left shows a red sine wave and a black sine wave. When you start t black sine wave will be hidden behind the red one. Play around with the red sine wav by changing the values for amplitude, frequency, and phase to see how they change the shape of the wave. Questions to Answer 1) Which setting changes maximum and minimum? A2) Which setting shifts the start and end left or right? 3) Which setting changes...
Determine the Fourier series expressions for the periodic voltage functions for the full wave rectified sine wave shown in Figure b and the half wave rectified sine wave shown in Figure c. v(t) 0 2T 3T -T
Write an equation for a sine wave with amplitude 0.129 m, wavelength 0.200 m, and wave speed 6.89 m/s traveling in the -x-direction. y(x, t) = (a m)sin[(b s^-1)t + (c m^-1)x] where a = b = c =
Problem 1. Find the Fourier series expansion of a half-wave rectified sine wave depicted below. AS(0) Answer: f(t) = 1+sin at cos2nt 1 nr 15 2 Cos 4t -cost + ... 35 Problem 2. Find the Fourier series approximation of the following periodic function f(x), where the first two leading cosine and sine functions must be included. Angle sum formulas for sine / cosine functions f(x) sin(A + B) = sin A cos B + cos A sin B sin(A...
The oscilloscope display below is connected to a sine wave of 100 Hz frequency and 4 volt amplitude, 100 us seconds/div, and 2 volts/div. What control(s) on the oscilloscope need to be adjusted to bring this signal into focus so that it displays a sine wave? The oscilloscope display below is connected to a sine wave of 150 Hz frequency , 2 ms seconds/div, and 1 volts/div. What control(s) on the oscilloscope need to be adjusted to bring this signal...
Page 1. (a) Prove that if the voltage across a resistor Ri is a sine wave with amplitude Vcc, then the average power dissipated during one cycle is given by Vec/2R (b) A Class B BJT output stage is shown in Fig. I. Assume that Vout(t) = Vcc. sin wt; Voe >> VCE(oat); and . Also ignore any crossover distortion effects due to the deddband in the voltage transfer characteristic. Sketch the waveforms for lci(t), Ic2(t) and It(t). (c) Find...
