A parallel plate capacitor is used in a series RLC circuit along with a 0.650-H inductor....

A parallel plate capacitor is used in a series RLC circuit along with a 0.650-H inductor. When the space between the plates is filled with a dielectric with κ = 5.57, the resonant frequency is 220 Hz. Now the dielectric is removed, leaving air between the capacitor plates. What is the new resonant frequency?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

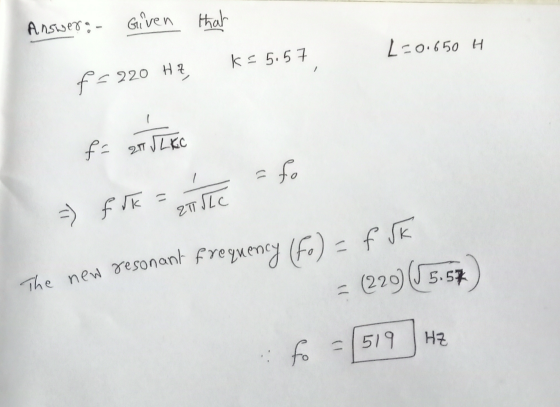

Answer: - Given that L=0.650 H K = 5.5 f=220 Hz f= 21 IT V L KC fo ( = ) f ik = ZT SIC The new resonant frequency (fo) = fuk

0 0
Add a comment
Know the answer?
Add Answer to:
A parallel plate capacitor is used in a series RLC circuit along with a 0.650-H inductor....
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A parallel plate capacitor has plates of area A = 5.50 ✕ 10−2 m2 separated by...

    A parallel plate capacitor has plates of area A = 5.50 ✕ 10−2 m2 separated by distance d = 1.32 ✕ 10−4 m. (The permittivity of free space is ε0 = 8.85 ✕ 10−12 C2/(N · m2).) (a) Calculate the capacitance (in F) if the space between the plates is filled with air. . What is the capacitance (in F) if the space is filled half with air and half with a dielectric of constant κ = 3.10 as in...

  • 24. An RLC series circuit has a 5.0092, a 20.00mH inductor, and a 30.00uF capacitor, and...

    24. An RLC series circuit has a 5.0092, a 20.00mH inductor, and a 30.00uF capacitor, and has a 110V source. a. Find the circuit's impedance at 60 Hz. b. What is the current at the 60Hz frequency? c. What is the resonant frequency of the circuit?

  • An RLC series circuit has a 5.00Ω, a 20.00mH inductor, and a 30.00µF capacitor, and has...

    An RLC series circuit has a 5.00Ω, a 20.00mH inductor, and a 30.00µF capacitor, and has a 110V source. a. Find the circuit’s impedance at 60 Hz. b. What is the current at the 60Hz frequency? c. What is the resonant frequency of the circuit? d. What is the average power dissipated at the circuit’s resonance frequency?

  • A 2.0 μF parallel-plate air-filled capacitor is connected across a 10 V battery. (a) Determine the...

    A 2.0 μF parallel-plate air-filled capacitor is connected across a 10 V battery. (a) Determine the charge on the capacitor and the energy stored in the capacitor. (b) An identical 2.0 μF parallel-plate air-filled capacitor is connected across a 5 V battery, and a dielectric slab with dielectric constant κ is inserted between the plates of the capacitor, completely filling the region between the plates, while the battery remains connected. The energy stored in this capacitor is four times that...

  • A parallel-plate capacitor is constructed with circular plates of radius 0.056 m. The plates are separated...

    A parallel-plate capacitor is constructed with circular plates of radius 0.056 m. The plates are separated by a distance of 0.25 mm, and the space between the plates is filled with a dielectric with dielectric constant κ. When the capacitor is charged to 1.2 µC, the potential difference between the plates is 750 V. What is the value of κ?

  • A parallel-plate capacitor has a plate area of A = 250 cm2 and a separation of...

    A parallel-plate capacitor has a plate area of A = 250 cm2 and a separation of d = 2.00 mm. The capacitor is charged to a potential difference of V0 = 150 V by a battery. A dielectric sheet (κ = 3.50) of the same area but thickness ℓ = 1.00 mm is placed between the plates without disconnecting the battery. (See figure 24-18 on page 642). Determine the initial capacitance of the air-filled capacitor. Determine the charge on the...

  • Problem 20.55 A parallel-plate capacitor is constructed with circular plates of radius 5.30×10−2 m . The...

    Problem 20.55 A parallel-plate capacitor is constructed with circular plates of radius 5.30×10−2 m . The plates are separated by 0.27 mm , and the space between the plates is filled with a dielectric with dielectric constant κ. When the charge on the capacitor is 2.0 μC the potential difference between the plates is 1090 V . Find the value of the dielectric constant, κ.

  • An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to...

    An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to an AC voltage source with an RMS voltage of 75 volts. At half the resonant frequency, the phase angle is -37 degrees and the inductive reactance is 49 Ohms. What is the average dissipated power at twice the resonant frequency in Watts?

  • A series RLC circuit has a capacitor with a capacitance of 31.0 μF , an inductor...

    A series RLC circuit has a capacitor with a capacitance of 31.0 μF , an inductor with an inductance of 0.600 H and a resistor with a resistance of 88.0 Ω. The circuit has a rms current of 9.00 A when the frequency is 71.0 Hz. What is εrms?

  • The plates of an air-filled parallel-plate capacitor with a plate area of 16.5 cm2 and a...

    The plates of an air-filled parallel-plate capacitor with a plate area of 16.5 cm2 and a separation of 8.80 mm are charged to a 130-V potential difference. After the plates are disconnected from the source, a porcelain dielectric with κ = 6.5 is inserted between the plates of the capacitor. (a) What is the charge on the capacitor before and after the dielectric is inserted? Qi = ___C Qf = ____C (b) What is the capacitance of the capacitor after...
