A 2.0 μF parallel-plate air-filled capacitor is connected across a 10 V battery. (a) Determine the...
- A 2.0 μF parallel-plate air-filled capacitor is connected across a 10 V battery.

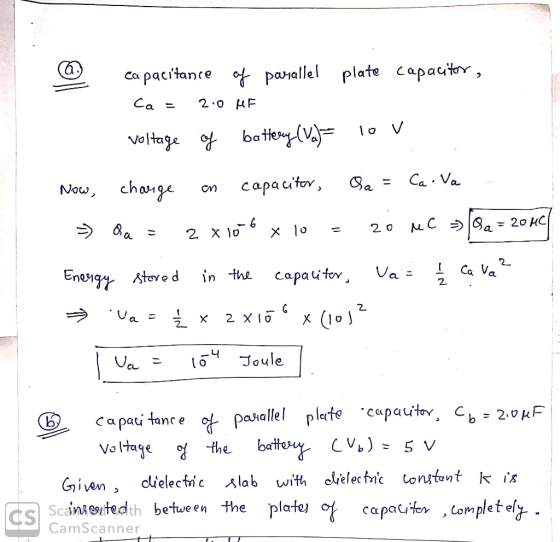

(a) Determine the charge on the capacitor and the energy stored in the capacitor.

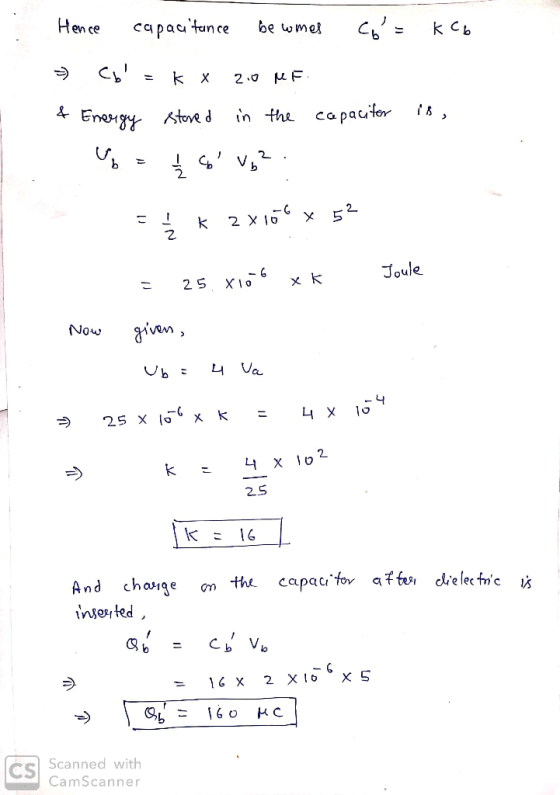

(b) An identical 2.0 μF parallel-plate air-filled capacitor is connected across a 5 V battery, and a dielectric slab with dielectric constant κ is inserted between the plates of the capacitor, completely filling the region between the plates, while the battery remains connected. The energy stored in this capacitor is four times that found in part (a). Determine the dielectric constant κ and the charge on the capacitor after the dielectric is inserted.
Homework Answers
Add Answer to:
A 2.0 μF parallel-plate air-filled capacitor is connected
across a 10 V battery.
(a) Determine the...
A parallel-plate capacitor with air between its plates is connected to an 80.0 V battery. When...
A parallel-plate capacitor with air between its plates is connected to an 80.0 V battery. When fully charged, the capacitor has an energy of 130 nJ. Without disconnecting the battery, a slab of dielectric is inserted between the plates of the capacitor, fully filling the gap. The energy stored in the capacitor is now 410 nJ. (c) What is the dielectric constant of the dielectric? (d) What is the charge on the dielectric-filled capacitor?
A parallel-plate capacitor with air between its plates is connected to an 80.0 V battery. When...
A parallel-plate capacitor with air between its plates is connected to an 80.0 V battery. When fully charged, the capacitor has an energy of 130 nJ. Without disconnecting the battery, a slab of dielectric is inserted between the plates of the capacitor, fully filling the gap. The energy stored in the capacitor is now 410 nJ. The area of each plate of the capacitor is 0.005 m2. (e) What is the electric field in the air-filled capacitor? (f) What is...
A vacuum filled parallel plate capacitor with capacitance 9.00 μF is initially connected to a battery...
A vacuum filled parallel plate capacitor with capacitance 9.00 μF is initially connected to a battery of voltage 3.20 V , thus storing an original charge of 28.8 μC . dielectric constant is 4. what is the final voltage across the capacitor? the answer is NOT 3.20 V. what is the final energy stored in the capacitor? how much charged is stored on the capacitor after the dielectric is inserted? how much energy is stored on the capacitor one the...
Two air-filled parallel-plate capacitors with capacitances C1 and C2 are connected in series to a battery...
Two air-filled parallel-plate capacitors with capacitances C1 and C2 are connected in series to a battery that has voltage V; C1 = 3.00 μF and C2 = 6.00 μF. The electric field between the plates of capacitor C2 is E02. While the two capacitors remain connected to the battery, a dielectric with dielectric constant K = 4 is inserted between the plates of capacitor C1, completely filling the space between them. After the dielectric is inserted in C1, the electric...
An initially uncharged air-filled capacitor is connected to a 5.03 V charging source. As a result,...
An initially uncharged air-filled capacitor is connected to a 5.03 V charging source. As a result, 4.19 × 10 − 5 C of charge is transferred from one of the capacitor's plates to the other. Then, while the capacitor remains connected to the charging source, a sheet of dielectric material is inserted between its plates, completely filling the space. The dielectric constant κ of this substance is 3.49 . Find the voltage V across the capacitor and the charge Q...
An initially uncharged air-filled capacitor is connected to a 3.33 V charging source. As a result, 8.13×10−5 C of charge is transferred...
An initially uncharged air-filled capacitor is connected to a 3.33 V charging source. As a result, 8.13×10−5 C of charge is transferred from one of the capacitor's plates to the other. Then, while the capacitor remains connected to the charging source, a sheet of dielectric material is inserted between its plates, completely filling the space. The dielectric constant κ of this substance is 6.27. Find the voltage V across the capacitor and the charge Qf stored by it after the dielectric is inserted and the circuit has returned to a steady state.
A parallel-plate capacitor filled with air carries a charge Q. The battery is disconnected, and a...
A parallel-plate capacitor filled with air carries a charge Q. The battery is disconnected, and a slab of material with dielectric constant k = 2 is inserted between the plates. Which of the following statements is correct? The voltage across the capacitor decreases by a factor of 2. The voltage across the capacitor is doubled. The electric field is doubled. The charge on the plates decreases by a factor of 2. The charge on the plates is doubled.
An initially uncharged air-filled capacitor is connected to a 3.49 3.49 V charging source. As a...
An initially uncharged air-filled capacitor is connected to a 3.49 3.49 V charging source. As a result, 8.15× 10 −5 8.15×10−5 C of charge is transferred from one of the capacitor's plates to the other. Then, while the capacitor remains connected to the charging source, a sheet of dielectric material is inserted between its plates, completely filling the space. The dielectric constant ? κ of this substance is 4.49 4.49 . Find the voltage ? V across the capacitor and...
An air-filled parallel-plate capacitor has plate area A andplate separation d. The capacitor is connected...
An air-filled parallel-plate capacitor has plate area A and plate separation d. The capacitor is connected to a battery that creates a constant voltage V.A) Find the energy U_0 stored in the capacitor. Express your answer in terms of A, d, V, and ϵ_0.B) The capacitor is now disconnected from the battery, and the plates of the capacitor are then slowly pulled apart until the separation reaches 3d. Find the new energy U_1 of the capacitor after this process. Express...
The plates of an air-filled parallel-plate capacitor with a plate area of 16.5 cm2 and a...
The plates of an air-filled parallel-plate capacitor with a plate area of 16.5 cm2 and a separation of 8.80 mm are charged to a 130-V potential difference. After the plates are disconnected from the source, a porcelain dielectric with κ = 6.5 is inserted between the plates of the capacitor. (a) What is the charge on the capacitor before and after the dielectric is inserted? Qi = ___C Qf = ____C (b) What is the capacitance of the capacitor after...
