A parallel-plate capacitor with air between its plates is connected to an 80.0 V battery. When...

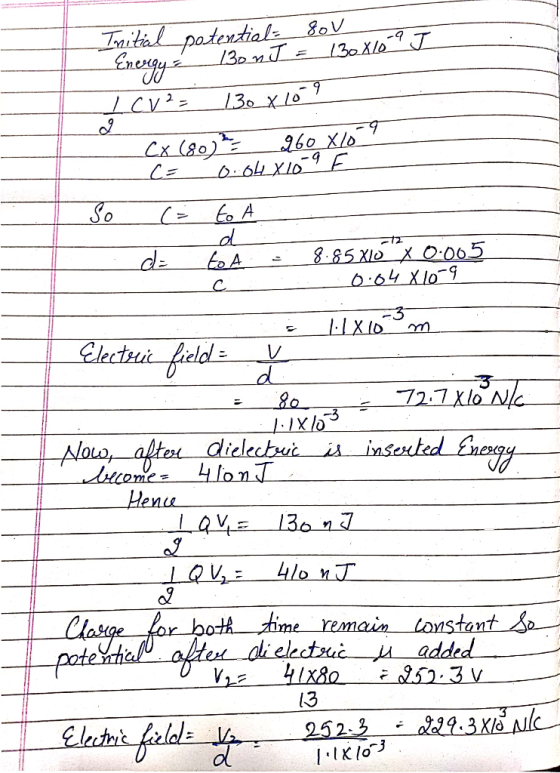

A parallel-plate capacitor with air between its plates is connected to an 80.0 V battery. When fully charged, the capacitor has an energy of 130 nJ. Without disconnecting the battery, a slab of dielectric is inserted between the plates of the capacitor, fully filling the gap. The energy stored in the capacitor is now 410 nJ. The area of each plate of the capacitor is 0.005 m2.
(e) What is the electric field in the air-filled capacitor?
(f) What is the electric field in the dielectric-filled capacitor?
Homework Answers
