Two air-filled parallel-plate capacitors with capacitances C1 and C2 are connected in series to a battery...
Two air-filled parallel-plate capacitors with capacitances C1 and C2 are connected in series to a battery that has voltage V; C1 = 3.00 μF and C2 = 6.00 μF. The electric field between the plates of capacitor C2 is E02. While the two capacitors remain connected to the battery, a dielectric with dielectric constant K = 4 is inserted between the plates of capacitor C1, completely filling the space between them. After the dielectric is inserted in C1, the electric field between the plates of capacitor C2 is E2.
A) What is the ratio E2/E02?
B) When the dielectric is inserted into C1, does the electric field in C2 increase, decrease, or remain the same?

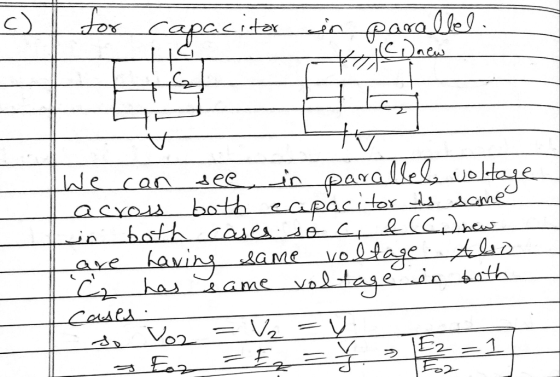

C) Repeat the calculation in part A for the two capacitors connected to the battery in parallel. What is the ratio E2/E02?
Homework Answers

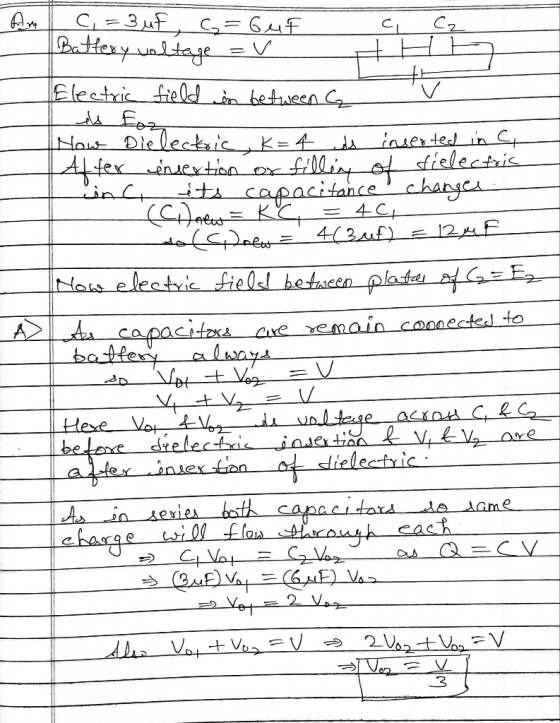

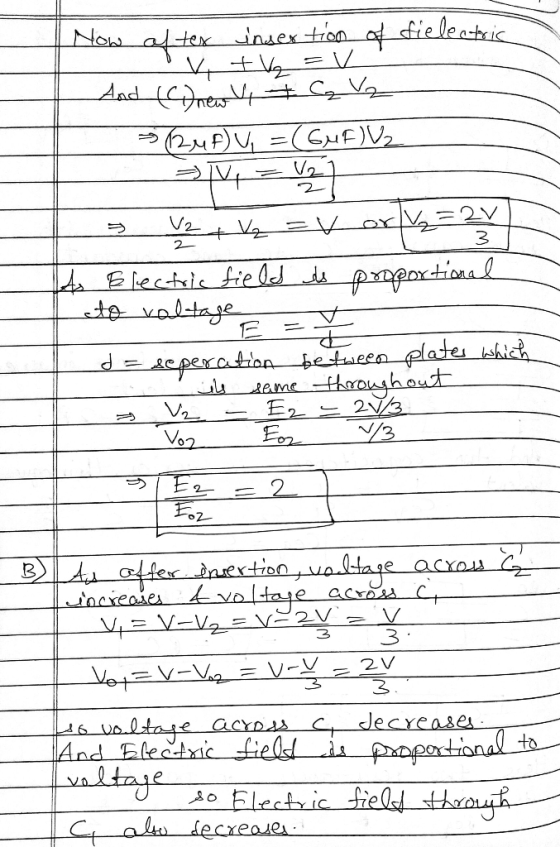

Here we apply concept of capacitance and electric field between capacitor plate.
Add Answer to:
Two air-filled parallel-plate capacitors with capacitances C1
and C2 are connected in series to a battery...
A 2.0 μF parallel-plate air-filled capacitor is connected across a 10 V battery. (a) Determine the...
A 2.0 μF parallel-plate air-filled capacitor is connected across a 10 V battery. (a) Determine the charge on the capacitor and the energy stored in the capacitor. (b) An identical 2.0 μF parallel-plate air-filled capacitor is connected across a 5 V battery, and a dielectric slab with dielectric constant κ is inserted between the plates of the capacitor, completely filling the region between the plates, while the battery remains connected. The energy stored in this capacitor is four times that...
A parallel-plate capacitor with air between its plates is connected to an 80.0 V battery. When...
A parallel-plate capacitor with air between its plates is connected to an 80.0 V battery. When fully charged, the capacitor has an energy of 130 nJ. Without disconnecting the battery, a slab of dielectric is inserted between the plates of the capacitor, fully filling the gap. The energy stored in the capacitor is now 410 nJ. The area of each plate of the capacitor is 0.005 m2. (e) What is the electric field in the air-filled capacitor? (f) What is...
Two capacitors, C1 = 19.0 μF and C2 = 38.0 μF, are connected in series, and...
Two capacitors, C1 = 19.0 μF and C2 = 38.0 μF, are connected in series, and a 21.0-V battery is connected across them. (a) Find the equivalent capacitance, and the energy contained in this equivalent capacitor. equivalent capacitance μF total energy stored J (b) Find the energy stored in each individual capacitor. energy stored in C1 J energy stored in C2 J Show that the sum of these two energies is the same as the energy found in part (a)....
Two capacitors, C1 = 28.0 μF and C2 = 35.0 μF, are connected in series, and...
Two capacitors, C1 = 28.0 μF and C2 = 35.0 μF, are connected in series, and a 9.0-V battery is connected across them. (a) Find the equivalent capacitance, and the energy contained in this equivalent capacitor. equivalent capacitance ______ μF total energy stored _______ J (b) Find the energy stored in each individual capacitor. energy stored in C1 ______ J energy stored in C2 ______ J Show that the sum of these two energies is the same as the energy...
A parallel-plate capacitor with air between its plates is connected to an 80.0 V battery. When...
A parallel-plate capacitor with air between its plates is connected to an 80.0 V battery. When fully charged, the capacitor has an energy of 130 nJ. Without disconnecting the battery, a slab of dielectric is inserted between the plates of the capacitor, fully filling the gap. The energy stored in the capacitor is now 410 nJ. (c) What is the dielectric constant of the dielectric? (d) What is the charge on the dielectric-filled capacitor?
A parallel plate capacitor with plate separation of 1 millimeter is connected to a battery of...
A parallel plate capacitor with plate separation of 1 millimeter is connected to a battery of 10 volts. If the region between the plates is free space (epsilon_r = 1), calculate the electric field between the plates in Volts/meter, and the electric flux density between the plates in Coulombs/m^2. Suppose a dielectric with dielectric constant epsilon_r = 5 is inserted between the plates. With the battery still connected, calculate the electric field and the electric flux density. Which field has...
An air-filled parallel plate capacitor with a plate spacing of 1.90 cm has a capacitance of...
An air-filled parallel plate capacitor with a plate spacing of 1.90 cm has a capacitance of 4.10 μF. The plate spacing is now doubled and a dielectric is inserted, completely filling the space between the plates. As a result the capacitance becomes 16.9 μF. Calculate the dielectric constant of the inserted material.
An air-filled parallel plate capacitor with a plate spacing of 1.30 cm has a capacitance of...
An air-filled parallel plate capacitor with a plate spacing of 1.30 cm has a capacitance of 2.70 μF. The plate spacing is now doubled and a dielectric is inserted, completely filling the space between the plates. As a result the capacitance becomes 12.9 μF. Calculate the dielectric constant of the inserted material.
Two capacitors, C1 = 16.0 μF and C2 = 32.0 μF, are connected in series, and...
Two capacitors, C1 = 16.0 μF and C2 = 32.0 μF, are connected in series, and a 24.0-V battery is connected across them (a) Find the equivalent capacitance, and the energy contained in this equivalent capacitor equivalent capacitance total energy stored (b) Find the energy stored in each individual capacitor. energy stored in C energy stored in C2 Show that the sum of these two energies is the same as the energy found in part (a). Will this equality always...
An empty parallel plate capacitor is connected to a battery that maintains a constant potential difference...
An empty parallel plate capacitor is connected to a battery that maintains a constant potential difference between the plates. With the battery connected, a dielectric is then inserted between the plates. Does the energy stored by the capacitor increase, decrease or remain the same when the dielectric is inserted? remain the same decrease increase
A parallel plate capacitor with plate separation of 1 millimeter is connected to a battery of 10 volts. If the region between the plates is free space (epsilon_r = 1), calculate the electric field between the plates in Volts/meter, and the electric flux density between the plates in Coulombs/m^2. Suppose a dielectric with dielectric constant epsilon_r = 5 is inserted between the plates. With the battery still connected, calculate the electric field and the electric flux density. Which field has...
Two capacitors, C1 = 16.0 μF and C2 = 32.0 μF, are connected in series, and a 24.0-V battery is connected across them (a) Find the equivalent capacitance, and the energy contained in this equivalent capacitor equivalent capacitance total energy stored (b) Find the energy stored in each individual capacitor. energy stored in C energy stored in C2 Show that the sum of these two energies is the same as the energy found in part (a). Will this equality always...
