An air-filled parallel plate capacitor with a plate spacing of 1.30 cm has a capacitance of...

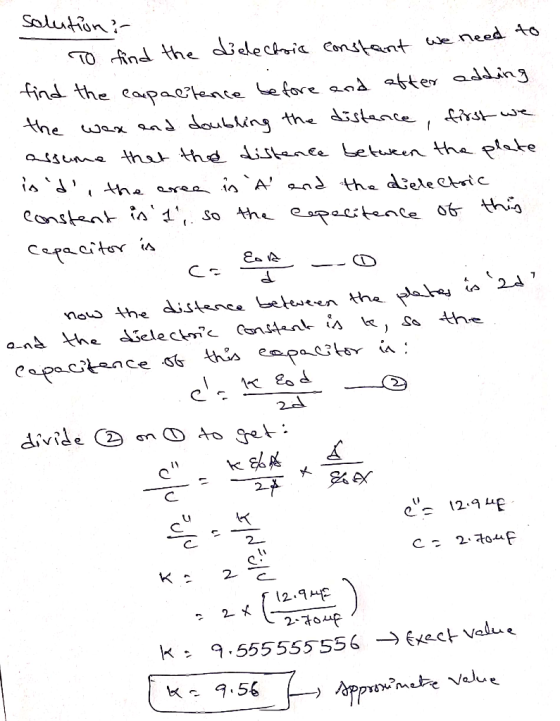

An air-filled parallel plate capacitor with a plate spacing of 1.30 cm has a capacitance of 2.70 μF. The plate spacing is now doubled and a dielectric is inserted, completely filling the space between the plates. As a result the capacitance becomes 12.9 μF. Calculate the dielectric constant of the inserted material.
Homework Answers
Add Answer to:
An air-filled parallel plate capacitor with a plate spacing of
1.30 cm has a capacitance of...
An air-filled parallel plate capacitor with a plate spacing of 1.90 cm has a capacitance of...
An air-filled parallel plate capacitor with a plate spacing of 1.90 cm has a capacitance of 4.10 μF. The plate spacing is now doubled and a dielectric is inserted, completely filling the space between the plates. As a result the capacitance becomes 16.9 μF. Calculate the dielectric constant of the inserted material.
An air-filled parallel plate capacitor with a plate spacing of 1.20 cm has a capacitance of...
An air-filled parallel plate capacitor with a plate spacing of 1.20 cm has a capacitance of 3.40 �F. The plate spacing is now doubled and a dielectric is inserted, completely filling the space between the plates. As a result the capcitance becomes 15.4 �F. Calculate the dielectric constant of the inserted material.
Show work please An air-filled parallel-plate capacitor has a capacitance of 1 pF. The plate separation...
Show work please
An air-filled parallel-plate capacitor has a capacitance of 1 pF. The plate separation is then doubled and a wax dielectric is inserted, completely filling the space between the plates. As a result, the capacitance becomes 2 pF. What is the dielectric constant of the wax? 0.25 0 50 2.0 4.0 8.0 A 60-watt light bulb carries a current of 0.5 ampere. The total charge passing through it in one day is what? 36.200 C 43.200 C 24.200...
An air-filled parallel-plate capacitor has a capacitance of 1.2 pF. The separation of the plates is...
An air-filled parallel-plate capacitor has a capacitance of 1.2 pF. The separation of the plates is doubled and wax is inserted between them. The new capacitance is 1.8 pF. Find the dielectric constant of the wax.
An air-filled parallel-plate capacitor has a capacitance of 1.4 pF. The separation of the plates is...
An air-filled parallel-plate capacitor has a capacitance of 1.4 pF. The separation of the plates is doubled and wax is inserted between them. The new capacitance is 2.1 pF. Find the dielectric constant of the wax.
A 2.0 μF parallel-plate air-filled capacitor is connected across a 10 V battery. (a) Determine the...
A 2.0 μF parallel-plate air-filled capacitor is connected across a 10 V battery. (a) Determine the charge on the capacitor and the energy stored in the capacitor. (b) An identical 2.0 μF parallel-plate air-filled capacitor is connected across a 5 V battery, and a dielectric slab with dielectric constant κ is inserted between the plates of the capacitor, completely filling the region between the plates, while the battery remains connected. The energy stored in this capacitor is four times that...
An air-filled capacitor is made from two flat parallel plates 1.4 mm apart. The inside area...
An air-filled capacitor is made from two flat parallel plates 1.4 mm apart. The inside area of each plate is 8.8 cm2. a) What is the capacitance of this set of plates (in pF) b) If the region between the plates is filled with a material whose dielectric constant is 6.6, what is the new capacitance (in pF)? 2) A parallel-plate capacitor with only air between its plates is charged by connecting the capacitor to a battery. The capacitor is...
A parallel plate air-filled capacitor has a capacitance of 1.3 pF. When the separation between the...
A parallel plate air-filled capacitor has a capacitance of 1.3 pF. When the separation between the plates is doubled and wax is inserted between the plates the capacitance is found to be 2.6 pF. The dielectric constant of the wax is Group of answer choices 2 1 8 4
Chapter 25, Problem 040 An air-filled parallel-plate capacitor has a capacitance of 1.6 pF. The separation...
Chapter 25, Problem 040 An air-filled parallel-plate capacitor has a capacitance of 1.6 pF. The separation of the plates is doubled and wax is inserted between them. The new capacitance is 4.3 pF. Find the dielectric constant of the wax. Number the tolerance is +/-2% Click if you would like to Show Work for this question: Open Show Work Units
Two air-filled parallel-plate capacitors with capacitances C1 and C2 are connected in series to a battery...
Two air-filled parallel-plate capacitors with capacitances C1 and C2 are connected in series to a battery that has voltage V; C1 = 3.00 μF and C2 = 6.00 μF. The electric field between the plates of capacitor C2 is E02. While the two capacitors remain connected to the battery, a dielectric with dielectric constant K = 4 is inserted between the plates of capacitor C1, completely filling the space between them. After the dielectric is inserted in C1, the electric...
Show work please
An air-filled parallel-plate capacitor has a capacitance of 1 pF. The plate separation is then doubled and a wax dielectric is inserted, completely filling the space between the plates. As a result, the capacitance becomes 2 pF. What is the dielectric constant of the wax? 0.25 0 50 2.0 4.0 8.0 A 60-watt light bulb carries a current of 0.5 ampere. The total charge passing through it in one day is what? 36.200 C 43.200 C 24.200...
Chapter 25, Problem 040 An air-filled parallel-plate capacitor has a capacitance of 1.6 pF. The separation of the plates is doubled and wax is inserted between them. The new capacitance is 4.3 pF. Find the dielectric constant of the wax. Number the tolerance is +/-2% Click if you would like to Show Work for this question: Open Show Work Units
