Please
do problem 3 and problem 4 .
Homework Answers
Add Answer to:
Please
do problem 3 and problem 4 .

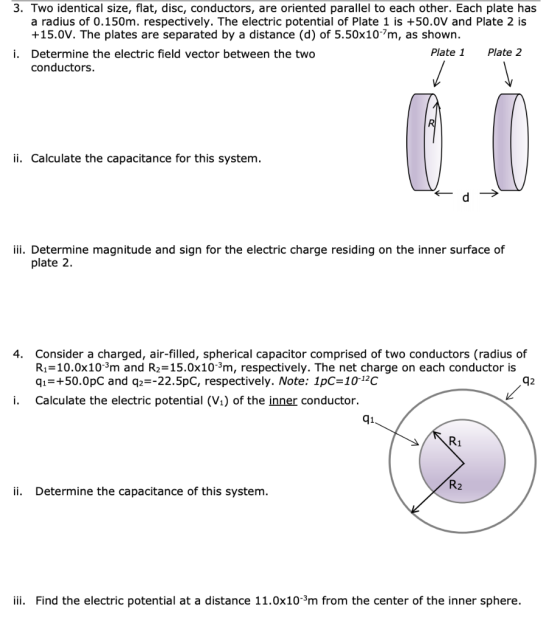

3. Two identical size, flat, disc, conductors, are...
