Exercise 31.20 In a series L-R-C circuit, the components have the following values: L =20.0 mH. C =140 nF and R= 350 2. The g

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

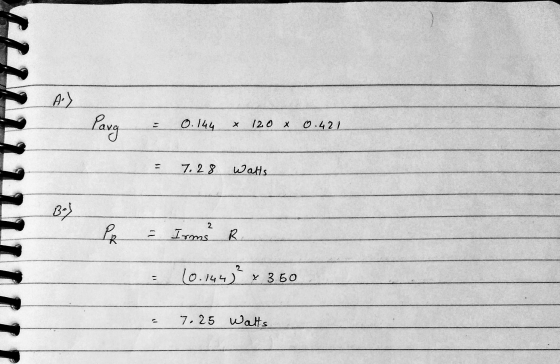

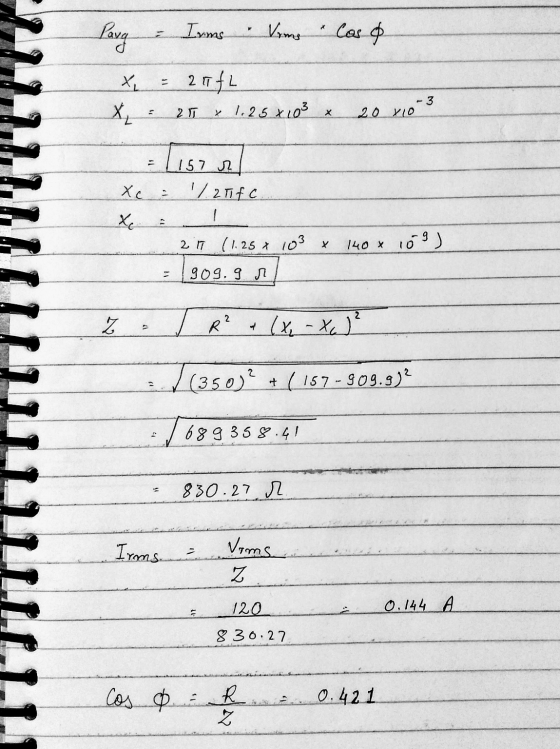

Pavy = Irms Vams Caso x x 2 IfL 25 x 1.25x103 x 20x10 3 Tisor Xc 1/21fc x 1 2 IT (1.25 x 103 x 140 x 109 ) 909.9 M R? (x - X)Ay Pavy 0.144 120 x 0.421 7.28 Watts Boy 2 22 Irms R (0.144)² x 350 7.25 Watts

0 0
Add a comment
Know the answer?
Add Answer to:
Exercise 31.20 In a series L-R-C circuit, the components have the following values: L =20.0 mH....
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • In a series L-R-C circuit, the components have the following values: L = 20.0 mH, C...

    In a series L-R-C circuit, the components have the following values: L = 20.0 mH, C = 140 nF, and R = 350 Ohm. The generator has an rms voltage 120 V and a frequency of 1.25 kHz. Part A Determine the average power supplied by the generator. P = W Submit My Answers Give Up Part B Determine the average power dissipated in the resistor. PR = W Submit My Answers Give Up

  • Exercise 31 A series ac circuit contains a 350 - resistor, a 20.0 - mH inductor,...

    Exercise 31 A series ac circuit contains a 350 - resistor, a 20.0 - mH inductor, a 2.90 - uF capacitor, and an ac power source of voltage amplitude 45.0 V operating at an angular frequency of 360 rad/s. Part A What is the power factor of this circuit? ANSWER: cos - Part B Find the average power delivered to the entire circuit ANSWER: P- w Part C What is the average power delivered to the resistor, to the capacitor,...

  • Constants An L-R-C series circuit L = 0.117 H , R = 241 2, and C...

    Constants An L-R-C series circuit L = 0.117 H , R = 241 2, and C = 7.26 uF carries an rms current of 0.454 A with a frequency of 402 Hz. Part E What average power is delivered by the source? EVO AEO ? P = w Submit Request Answer Part F What is the average rate at which electrical energy is converted to thermal energy in the resistor? VI PR = W Submit Renneet Anewer Constants Part 6...

  • An RLC circuit with R = 23.5 Ω , L = 396 mH , and C...

    An RLC circuit with R = 23.5 Ω , L = 396 mH , and C = 49.5 μF is connected to an ac generator with an rms voltage of 29 V . Part A Determine the average power delivered to this circuit when the frequency of the generator is equal to the resonance frequency. Express your answer using two significant figures. P = __W Part B Determine the average power delivered to this circuit when the frequency of the...

  • A coil (L = 94.1 mH), a resistor (R = 31 Ω), a capacitor (C =...

    A coil (L = 94.1 mH), a resistor (R = 31 Ω), a capacitor (C = 98.6 μF) and an A.C. source (52.9 V, 84.4 Hz) are connected in series. Find the rms power, in W, dissipated by the circuit. NOTE: If the voltage of an A.C. power source is given without specification, it is rms. For example: a "10 V A.C. power source" an output voltage of 10 V rms.

  • In the figure, R = 13.0 ?, C = 7.60 ?F, and L = 40.0 mH....

    In the figure, R = 13.0 ?, C = 7.60 ?F, and L = 40.0 mH. The generator provides a sinusoidal voltage of 75 V (rms) and frequency f = 690 Hz . Calculate the rms current. Find the rms voltage, Vab. Find the rms voltage, Vbc. Find the rms voltage, Vcd. Find the rms voltage, Vbd. Find the rms voltage, Vad. At what average rate is energy dissipated by the capacitor? At what average rate is energy dissipated by...

  • Help A series RLC circuit has components with the following values: L = 16.0 mH. C...

    Help A series RLC circuit has components with the following values: L = 16.0 mH. C = 82.0 nF, R = 15.0 ohm, and Delta V_max = 100 V, with Delta v = Delta V_max sin omega t. Find the resonant frequency of the circuit. 4.3939e03 Resonance occurs when the impedance is at a minimum. kHz Find the amplitude of the current at the resonant frequency. 6.67 A Find the Q of the circuit. 2.68 How is the Q related...

  • A 1.15-kΩkΩ resistor and a 595-mH inductor are connected in series to a 1350-Hz generator with...

    A 1.15-kΩkΩ resistor and a 595-mH inductor are connected in series to a 1350-Hz generator with an rms voltage of 12.3 V . Part A: What is the rms current in the circuit? (Express answer in mA) Part B: What capacitance must be inserted in series with the resistor and inductor to reduce the rms current to half the value found in part A? (Express answer in nF).

  • A 1.15-kΩ resistor and a 520-mH inductor are connected in series to a 1450-Hz generator with...

    A 1.15-kΩ resistor and a 520-mH inductor are connected in series to a 1450-Hz generator with an rms voltage of 13.9 V a.) What is the rms current in the circuit? b.)What capacitance must be inserted in series with the resistor and inductor to reduce the rms current to half the value found in part A? answer in nF

  • A 1.15-kΩ resistor and a 600-mH inductor are connected in series to a 1350-Hz generator with...

    A 1.15-kΩ resistor and a 600-mH inductor are connected in series to a 1350-Hz generator with an rms voltage of 12.2 V . Part A: What is the rms current in the circuit? Part B:What capacitance must be inserted in series with the resistor and inductor to reduce the rms current to half the value found in part A? Please show with steps, thank you! Item 15 < 15 of 15 A 1.15-k22 resistor and a 600-mH inductor are connected...
