Exercise 31.29 In an L-R-C series circuit, 310 ,0.396 H and 5.98x10-8F. When the ac source...

Question

Question

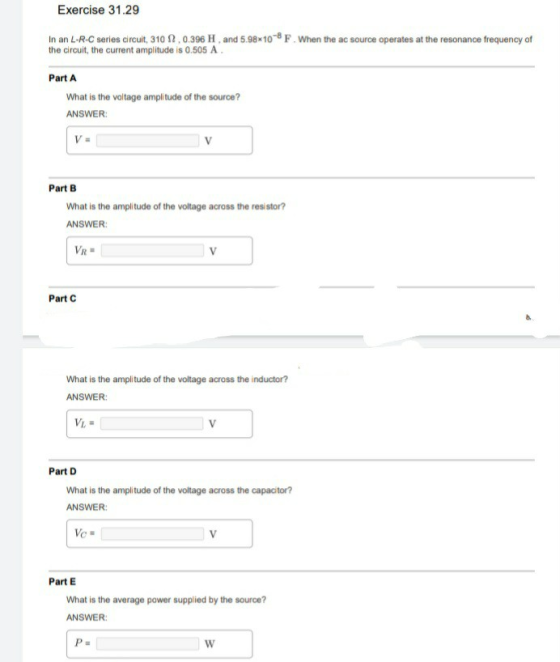

Exercise 31.29 In an L-R-C series circuit, 310 ,0.396 H and 5.98x10-8F. When the ac source operates at the resonance frequenc

science physics

Answer 1

Answer #1

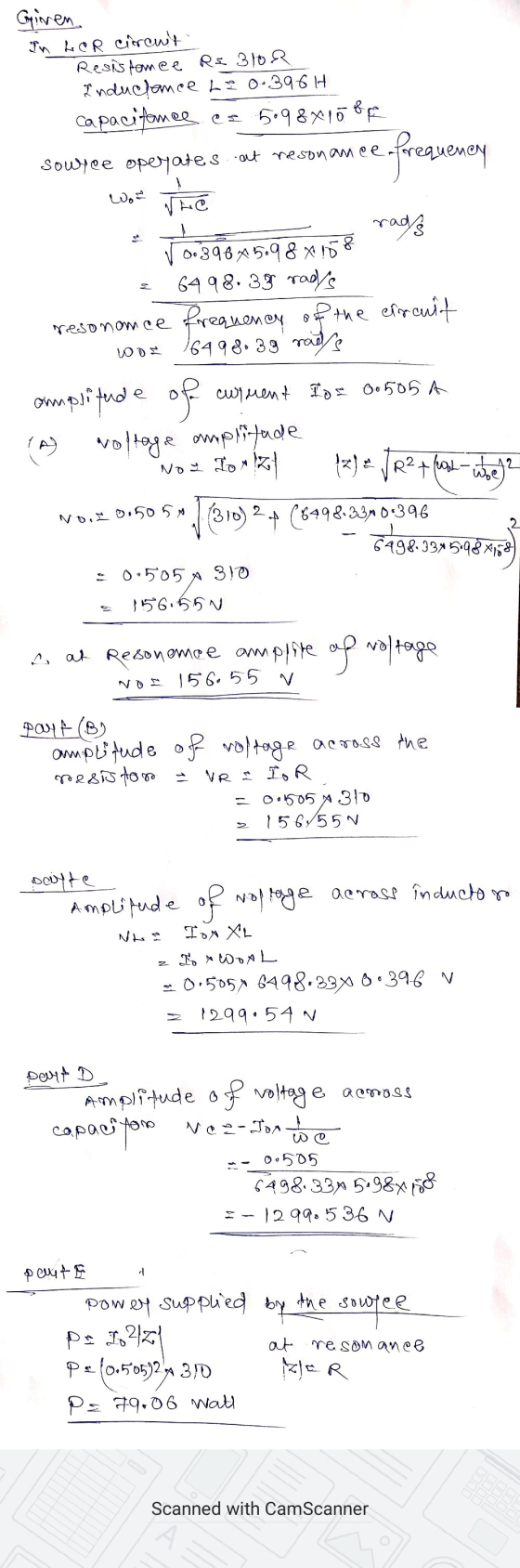

Given In her chront Resistomee RE 3108 Inductance Le 0.396H capacitance ca ca 5098x10 OF source operates at resonance. -freq

Answer 2

Similar Homework Help Questions

In a series R-L-C circuit, L = 0.190 H , C = 84.5 μF and the...

In a series R-L-C circuit, L = 0.190 H , C = 84.5 μF and the voltage amplitude of the source is 290 V . Part A What is the resonance angular frequency of the circuit? ω0 = rad/s SubmitMy AnswersGive Up Part B When the source operates at the resonance angular frequency, the current amplitude in the circuit is 0.610 A . What is the resistance R of the resistor? R = Ω SubmitMy AnswersGive Up Part C At...
In a series R-L-C circuit, L = 0.215 H , C = 82.5 μF and the...

In a series R-L-C circuit, L = 0.215 H , C = 82.5 μF and the voltage amplitude of the source is 260 V . 1)What is the resonance angular frequency of the circuit? 2)When the source operates at the resonance angular frequency, the current amplitude in the circuit is 0.595 A . What is the resistance R of the resistor? 3)At the resonance frequency, what are the peak voltages across the inductor, the capacitor, and the resistor?
please answer! Part A Series Resonance: A series circuit consists of a 0.440-H inductor, a 380.00...

please answer! Part A Series Resonance: A series circuit consists of a 0.440-H inductor, a 380.00 resistor, a 5.70-4F capacitor, and an ac voltage source of amplitude 250.0 V. Find the rs voltage across the capacitor when the circuit operates at resonance. Express your answer with appropriate units. HA ? 182.8 V Submit Request Answer

A circuit has an ac voltage source and a resistor and capacitor connected in series. There is no inductor.

A circuit has an ac voltage source and a resistor and capacitor connected in series. There is no inductor. The ac voltage source has voltage amplitude 0.900 kV and angular frequency w = 20.0 rad/s. The voltage amplitude across the capacitor is 0.500 kV. The resistor has resistance R= 0.300 kΩ. Part A What is the voltage amplitude across the resistor? Part B What is the capacitance C of the capacitor? Part C Does the source voltage lag or lead the current? Part D What is the average...
can you explain how to answer this question In an R-L-C ac series circuit the voltage...

can you explain how to answer this question In an R-L-C ac series circuit the voltage across the capacitor is 64 V and the voltage amplitude across the inductor is 96 V. Does the source voltage lag or lead the current in the circuit? (a) lag (b) lead
In a series R-L-C circuit, R = 380 Ω , L = 0.330 H and C...

In a series R-L-C circuit, R = 380 Ω , L = 0.330 H and C = 1.10×10−2μF . Part A What is the resonance angular frequency of the circuit? Part B The capacitor can withstand a peak voltage of 550 V . If the voltage source operates at the resonance frequency, what maximum voltage amplitude can it have if the maximum capacitor voltage is not exceeded?

1. A resistor R and capacitor care connected in series with an AC voltage source with...

1. A resistor R and capacitor care connected in series with an AC voltage source with frequency f and maximum voltage Vo. a. Find the complex impedance (in the form Z = R + jX). If the impedance is written in polar form (Z = Zejº), find expressions for Z and Ⓡ. Write your answers in terms of the variables R, C, and o(= 21f). b. If the voltage source is described by the phasor V = V, ejwt, and...
Constants In a series R-L-C circuit, R = 480.2 L = 0.370 H and C =...

Constants In a series R-L-C circuit, R = 480.2 L = 0.370 H and C = 1.50x10-2uF Part A What is the resonance angular frequency of the circuit? ΟΙ ΑΣΦ ? p = 13801 rad/s Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining Part B The capacitor can withstand a peak voltage of 550 V. If the voltage source operates at the resonance frequency, what maximum voltage amplitude can it have if the maximum capacitor voltage...
6) In an L-R-C series circuit L = 0.440 H, R 380.0 n, and C-5.70μF. The...

6) In an L-R-C series circuit L = 0.440 H, R 380.0 n, and C-5.70μF. The 6) voltage amplitude of the source is 250.0 V. Find the rms voltage across the capacitor when the source operates at resonance

a. An AC source of amplitude 10 Vmax and 500 Hz frequency is connected in series...

a. An AC source of amplitude 10 Vmax and 500 Hz frequency is connected in series with a 3 Kohm resistor and a 15 micro Farad capacitor. Draw the circuit. Determine the total current and the voltage drops across the resistor and the capacitor, respectively. b. An AC source of amplitude 10 Vmax and 5000 Hz frequency is connected in series with a 2 Kohm resistor and a 10 mH (milli Henry) inductor. Draw the circuit. Determine the total current...
