a. An AC source of amplitude 10 Vmax and 500 Hz frequency is connected in series...

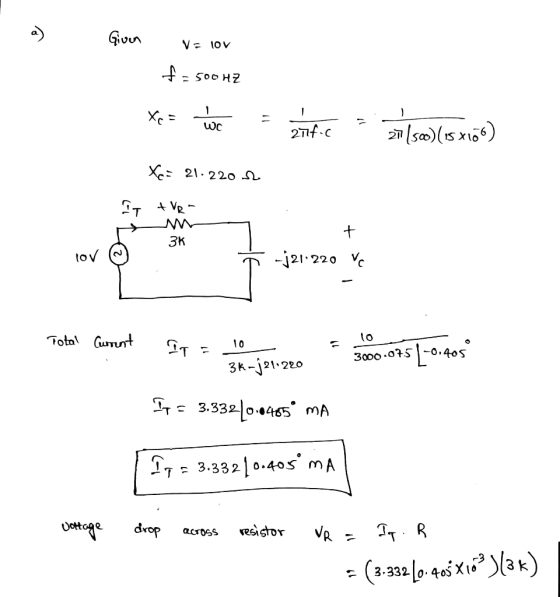

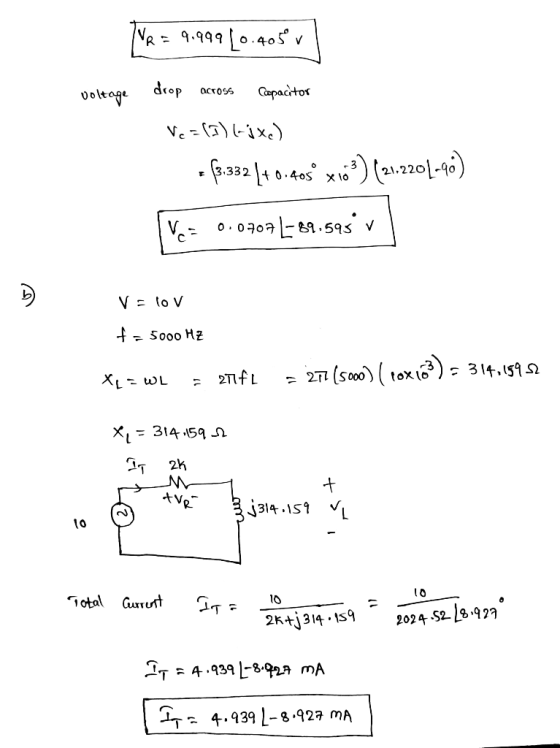

a. An AC source of amplitude 10 Vmax and 500 Hz frequency is connected in series with a 3 Kohm resistor and a 15 micro Farad capacitor. Draw the circuit. Determine the total current and the voltage drops across the resistor and the capacitor, respectively.

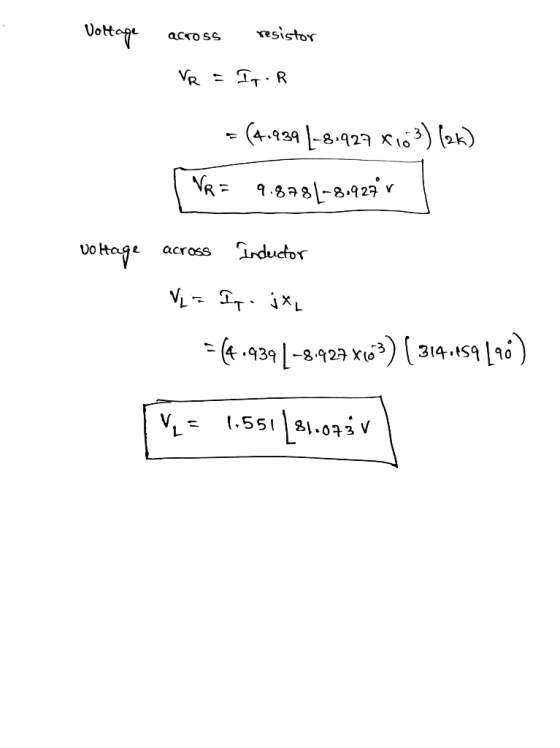

b. An AC source of amplitude 10 Vmax and 5000 Hz frequency is connected in series with a 2 Kohm resistor and a 10 mH (milli Henry) inductor. Draw the circuit. Determine the total current and the voltage drops across the resistor and the inductor, respectively.
Homework Answers
Add Answer to:
a. An AC source of amplitude 10 Vmax and 500 Hz frequency is
connected in series...
A circuit has an ac voltage source and a resistor and capacitor connected in series. There is no inductor.
A circuit has an ac voltage source and a resistor and capacitor connected in series. There is no inductor. The ac voltage source has voltage amplitude 0.900 kV and angular frequency w = 20.0 rad/s. The voltage amplitude across the capacitor is 0.500 kV. The resistor has resistance R= 0.300 kΩ. Part A What is the voltage amplitude across the resistor? Part B What is the capacitance C of the capacitor? Part C Does the source voltage lag or lead the current? Part D What is the average...
An ac series circuit consists of a voltage source of frequency 60 Hz and voltage amplitude...
An ac series circuit consists of a voltage source of frequency 60 Hz and voltage amplitude V, a 788-Ω resistor, and a capacitor of capacitance 2 μF. What must be the source voltage amplitude V for the average electrical power consumed in the resistor to be 587 W? There is no inductance in the circuit.
2) Consider an ac source Vincos(wt + p), a capacitor and a resistor, all connected in...
2) Consider an ac source Vincos(wt + p), a capacitor and a resistor, all connected in series. IV.nl is the amplitude of the input voltage. Let outc and outur denote the amplitude of voltage across the capacitor and resistor respectively. In this problem we are looking only the steady state response (you! can ignore transients). (a) Derive an expression for the amplitude of voltage across the capacitor divided by the amplitude of the input voltage (b) Assuming that C =...
A series LRC circuit is driven by an ac source with a voltage amplitude of 36.0...
A series LRC circuit is driven by an ac source with a voltage amplitude of 36.0 V and a frequency of 60.0 Hz. The resistance is 160 Ohm, the inductance is 0.230 H, and the capacitance is 70.0 mu F. a) Determine the impedance of the circuit. b) Determine the current amplitude. c) Determine the voltage amplitude across (i) the resistor, (ii) the inductor and (iii) the capacitor. d) Sketch the phasor diagram (at t = 0) for the circuit,...
A resistor, an inductor, and a capacitor are connected in series to an AC source. The...
A resistor, an inductor, and a capacitor are connected in series to an AC source. The AC source is operating at the resonance frequency. Which of the following statements are true? Check all that apply. The current is in phase with the driving voltage. The total voltage across the inductor and the capacitor at any instant is equal to zero. The peak voltage across the capacitor is greater than the peak voltage across the inductor. The peak voltage across the...
An ac series circuit consists of a voltage source of frequency 60 Hz and voltage amplitude...
An ac series circuit consists of a voltage source of frequency 60 Hz and voltage amplitude V, a 358-12 resistor, and a capacitor of capacitance 6.2 uF. What must be the source voltage amplitude V for the average electrical power consumed in the resistor to be 432 W? There is no inductance in the circuit. Express your answer using two significant figures. temp@tes Symbols uado ředo reset keyboard shortcuts help, VE
An ac series circuit consists of a voltage source of frequency f = 60 Hz and...
An ac series circuit consists of a voltage source of frequency f = 60 Hz and voltage amplitude V, a resistor of resistance R = 593 Ω, and a capacitor of capacitance C = 2.8×10−6F. What must the source voltage amplitude V be for the average electrical power consumed in the resistor to be 382 watts? There is no inductance in the circuit.
A resistor, 50.0-mH inductor, and 100.0-uF capacitor are connected in series with a 50-Hz voltage source....
A resistor, 50.0-mH inductor, and 100.0-uF capacitor are connected in series with a 50-Hz voltage source. The maximum voltage through the circuit is 240 V. Calculate the power across the LCR circuit, if phase angle between the current and voltage is 60degrees.
A continuous AC voltage with peak voltage of 6 V and frequency f=732398 Hz is connected...
A continuous AC voltage with peak voltage of 6 V and frequency f=732398 Hz is connected with a resistor (R-220 Ω), a capacitor with C-0.1 μΕ and an an inductor with L=680 nH. What is the capacitive reactance? What is the inductive reactance? What is the impedance when all three components are connected in SERIES? What is the current when all three components are connected in SERIES? What is the impedance of the circuit when all three components are connected...
1. A resistor R and capacitor care connected in series with an AC voltage source with...
1. A resistor R and capacitor care connected in series with an AC voltage source with frequency f and maximum voltage Vo. a. Find the complex impedance (in the form Z = R + jX). If the impedance is written in polar form (Z = Zejº), find expressions for Z and Ⓡ. Write your answers in terms of the variables R, C, and o(= 21f). b. If the voltage source is described by the phasor V = V, ejwt, and...
2) Consider an ac source Vincos(wt + p), a capacitor and a resistor, all connected in series. IV.nl is the amplitude of the input voltage. Let outc and outur denote the amplitude of voltage across the capacitor and resistor respectively. In this problem we are looking only the steady state response (you! can ignore transients). (a) Derive an expression for the amplitude of voltage across the capacitor divided by the amplitude of the input voltage (b) Assuming that C =...
A series LRC circuit is driven by an ac source with a voltage amplitude of 36.0 V and a frequency of 60.0 Hz. The resistance is 160 Ohm, the inductance is 0.230 H, and the capacitance is 70.0 mu F. a) Determine the impedance of the circuit. b) Determine the current amplitude. c) Determine the voltage amplitude across (i) the resistor, (ii) the inductor and (iii) the capacitor. d) Sketch the phasor diagram (at t = 0) for the circuit,...
An ac series circuit consists of a voltage source of frequency 60 Hz and voltage amplitude V, a 358-12 resistor, and a capacitor of capacitance 6.2 uF. What must be the source voltage amplitude V for the average electrical power consumed in the resistor to be 432 W? There is no inductance in the circuit. Express your answer using two significant figures. temp@tes Symbols uado ředo reset keyboard shortcuts help, VE
A continuous AC voltage with peak voltage of 6 V and frequency f=732398 Hz is connected with a resistor (R-220 Ω), a capacitor with C-0.1 μΕ and an an inductor with L=680 nH. What is the capacitive reactance? What is the inductive reactance? What is the impedance when all three components are connected in SERIES? What is the current when all three components are connected in SERIES? What is the impedance of the circuit when all three components are connected...
1. A resistor R and capacitor care connected in series with an AC voltage source with frequency f and maximum voltage Vo. a. Find the complex impedance (in the form Z = R + jX). If the impedance is written in polar form (Z = Zejº), find expressions for Z and Ⓡ. Write your answers in terms of the variables R, C, and o(= 21f). b. If the voltage source is described by the phasor V = V, ejwt, and...
