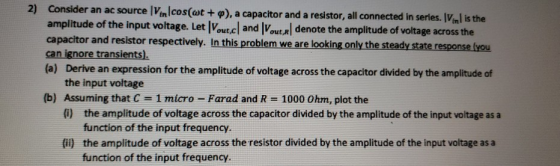

2) Consider an ac source Vincos(wt + p), a capacitor and a resistor, all connected in...
a. An AC source of amplitude 10 Vmax and 500 Hz frequency is connected in series...
a. An AC source of amplitude 10 Vmax and 500 Hz frequency is connected in series with a 3 Kohm resistor and a 15 micro Farad capacitor. Draw the circuit. Determine the total current and the voltage drops across the resistor and the capacitor, respectively. b. An AC source of amplitude 10 Vmax and 5000 Hz frequency is connected in series with a 2 Kohm resistor and a 10 mH (milli Henry) inductor. Draw the circuit. Determine the total current...
A circuit has an ac voltage source and a resistor and capacitor connected in series. There is no inductor.
A circuit has an ac voltage source and a resistor and capacitor connected in series. There is no inductor. The ac voltage source has voltage amplitude 0.900 kV and angular frequency w = 20.0 rad/s. The voltage amplitude across the capacitor is 0.500 kV. The resistor has resistance R= 0.300 kΩ. Part A What is the voltage amplitude across the resistor? Part B What is the capacitance C of the capacitor? Part C Does the source voltage lag or lead the current? Part D What is the average...
A resistor, an inductor, and a capacitor are connected in series to an AC source. The...
A resistor, an inductor, and a capacitor are connected in series to an AC source. The AC source is operating at the resonance frequency. Which of the following statements are true? Check all that apply. The current is in phase with the driving voltage. The total voltage across the inductor and the capacitor at any instant is equal to zero. The peak voltage across the capacitor is greater than the peak voltage across the inductor. The peak voltage across the...
1. A resistor R and capacitor care connected in series with an AC voltage source with...
1. A resistor R and capacitor care connected in series with an AC voltage source with frequency f and maximum voltage Vo. a. Find the complex impedance (in the form Z = R + jX). If the impedance is written in polar form (Z = Zejº), find expressions for Z and Ⓡ. Write your answers in terms of the variables R, C, and o(= 21f). b. If the voltage source is described by the phasor V = V, ejwt, and...
A resistor and capacitor are connected in series across an ac generator. The voltage of the...
A resistor and capacitor are connected in series across an ac generator. The voltage of the generator is given by V() = Vocos(wt), where Vo = 120V,w = 120x rad/s, R = 55082, and C = 7.54F. (a) What is the magnitude of the impedance of the RC circuit? (b) What is the amplitude of the current through the resistor? (e) What is the phase difference between the voltage and current? The magnitude of the impedance is The amplitude of...
A resistor and capacitor are connected in series across an ac generator. The voltage of the...
A resistor and capacitor are connected in series across an ac generator. The voltage of the generator is given by V(0) = Vocos(wt), where VO = 120V, w = 120+ rad/s, R=55092, and C = 3pF. (a) What is the magnitude of the impedance of the RC circuit (b) What is the amplitude of the current through the resistor? (c) What is the phase difference between the voltage and current? The magnitude of the impedance is 1041.3 22. The amplitude...
5. A resistor and capacitor are connected in series with an applied AC voltage source. There...
5. A resistor and capacitor are connected in series with an applied AC voltage source. There is no inductor. Separate voltmeter readings across the resistor and capacitor give values of 50 V and 75 V (rms) respectively. What is the (rms) voltage of the source? (5 points)
Consider three different AC circuits (A-C) consist of a resistor, capacitor and inductor, connected in series...
Consider three different AC circuits (A-C) consist of a resistor, capacitor and inductor, connected in series to a function generator that creates a voltage of Av-2.0 cos(wt) Volts with ?-2x104 rad/s. The circuits are: (A) R-3 ; C-25 F, L-300 H 1. Rank the circuits by the amplitude of the alternating current flowing in the circuit from greatest to least.
. A 250-ohm resistor, a 0.450 H inductor, and a 6.45 F capacitor are connected in...
. A 250-ohm resistor, a 0.450 H inductor, and a 6.45 F capacitor are connected in series across an emf with a 36.0 volt amplitude and an angular frequency of 260 rad/s. a. What is the impedance? b. What is the current amplitude? c. What is the phase angle between the voltage and current? Does the voltage lag or lead? d. What are the voltage amplitudes across the resistor, inductor and capacitor individually? e. What is the power? f. What...
#3. A 250-ohm resistor, a 0.450 H inductor, and a 6.45 uF capacitor are connected in...
#3. A 250-ohm resistor, a 0.450 H inductor, and a 6.45 uF capacitor are connected in series across an emf with a 36.0 volt amplitude and an angular frequency of 260 rad/s. a. What is the impedance? b. What is the current amplitude? c. What is the phase angle between the voltage and current? Does the voltage lag or lead? d. What are the voltage amplitudes across the resistor, inductor and capacitor individually? e. What is the power? f. What...
1. A resistor R and capacitor care connected in series with an AC voltage source with frequency f and maximum voltage Vo. a. Find the complex impedance (in the form Z = R + jX). If the impedance is written in polar form (Z = Zejº), find expressions for Z and Ⓡ. Write your answers in terms of the variables R, C, and o(= 21f). b. If the voltage source is described by the phasor V = V, ejwt, and...
A resistor and capacitor are connected in series across an ac generator. The voltage of the generator is given by V() = Vocos(wt), where Vo = 120V,w = 120x rad/s, R = 55082, and C = 7.54F. (a) What is the magnitude of the impedance of the RC circuit? (b) What is the amplitude of the current through the resistor? (e) What is the phase difference between the voltage and current? The magnitude of the impedance is The amplitude of...
A resistor and capacitor are connected in series across an ac generator. The voltage of the generator is given by V(0) = Vocos(wt), where VO = 120V, w = 120+ rad/s, R=55092, and C = 3pF. (a) What is the magnitude of the impedance of the RC circuit (b) What is the amplitude of the current through the resistor? (c) What is the phase difference between the voltage and current? The magnitude of the impedance is 1041.3 22. The amplitude...
5. A resistor and capacitor are connected in series with an applied AC voltage source. There is no inductor. Separate voltmeter readings across the resistor and capacitor give values of 50 V and 75 V (rms) respectively. What is the (rms) voltage of the source? (5 points)
Consider three different AC circuits (A-C) consist of a resistor, capacitor and inductor, connected in series to a function generator that creates a voltage of Av-2.0 cos(wt) Volts with ?-2x104 rad/s. The circuits are: (A) R-3 ; C-25 F, L-300 H 1. Rank the circuits by the amplitude of the alternating current flowing in the circuit from greatest to least.
