An ac series circuit consists of a voltage source of frequency 60 Hz and voltage amplitude...

An ac series circuit consists of a voltage source of frequency 60 Hz and voltage amplitude V, a 788-Ω resistor, and a capacitor of capacitance 2 μF. What must be the source voltage amplitude V for the average electrical power consumed in the resistor to be 587 W? There is no inductance in the circuit.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

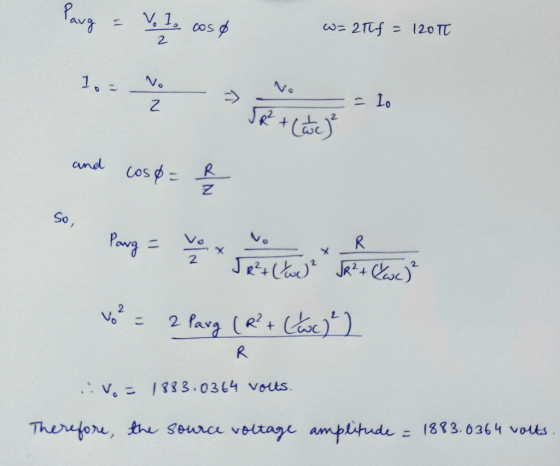

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
An ac series circuit consists of a voltage source of frequency 60 Hz and voltage amplitude...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • An ac series circuit consists of a voltage source of frequency f = 60 Hz and...

    An ac series circuit consists of a voltage source of frequency f = 60 Hz and voltage amplitude V, a resistor of resistance R = 593 Ω, and a capacitor of capacitance C = 2.8×10−6F. What must the source voltage amplitude V be for the average electrical power consumed in the resistor to be 382 watts? There is no inductance in the circuit.

  • An ac series circuit consists of a voltage source of frequency 60 Hz and voltage amplitude...

    An ac series circuit consists of a voltage source of frequency 60 Hz and voltage amplitude V, a 358-12 resistor, and a capacitor of capacitance 6.2 uF. What must be the source voltage amplitude V for the average electrical power consumed in the resistor to be 432 W? There is no inductance in the circuit. Express your answer using two significant figures. temp@tes Symbols uado ředo reset keyboard shortcuts help, VE

  • Part A An ac series circuit consists of a voltage source of frequency 60 Hz and...

    Part A An ac series circuit consists of a voltage source of frequency 60 Hz and voltage amplitude V. a 354- resistor, and a capacitor of capacitance 3.3 uF. What must be the source voltage amplitude V for the average electrical power consumed in the resistor to be 468 W? There is no inductance in the circuit. Express your answer using two significant figures. VE V Submit Previous Answers Request Answer X Incorrect; Try Again; 2 attempts remaining Provide Feedback...

  • An ac series circuit consists of a voltage source of frequency f = 60 Hz and...

    An ac series circuit consists of a voltage source of frequency f = 60 Hz and voltage amplitude V, a resistor of resistance 163 ohms and a capacitor of capacitance C= 6.2x10-6 F. What must the source voltage amplitude V be for the average electrical power consumed in the resistor to be 529 watts? There is no inductance in the circuit. Answer is 1200 V. Please show work. Thank you in advance! Will Thumbs up! Please help!

  • A series AC circuit has a power source with frequency f = 60 Hz, peak voltage...

    A series AC circuit has a power source with frequency f = 60 Hz, peak voltage of epsilon_0 = 5.0 V, resistance R = 0.50 omega, capacitance C = 320 mu F, and inductance L = 0.40 H. what is the period circuit? What is the maximum current through the inductor? What is the largest power reached in resistor? Suppose the power supply reaches maximum voltage at time t_1, how the long after t_1 does the current though the resistor...

  • A series LRC circuit is driven by an ac source with a voltage amplitude of 36.0...

    A series LRC circuit is driven by an ac source with a voltage amplitude of 36.0 V and a frequency of 60.0 Hz. The resistance is 160 Ohm, the inductance is 0.230 H, and the capacitance is 70.0 mu F. a) Determine the impedance of the circuit. b) Determine the current amplitude. c) Determine the voltage amplitude across (i) the resistor, (ii) the inductor and (iii) the capacitor. d) Sketch the phasor diagram (at t = 0) for the circuit,...

  • A series circuit consists of an AC source of variable frequency, a 115 Ohm resistor, a...

    A series circuit consists of an AC source of variable frequency, a 115Ω resistor, a 1.25 μF capacitor, and a 4.50 mH inductor. Find the impedance of this circuit when the angular frequency of the ac source is adjusted to (a) the resonance angular frequency; (b) twice the resonance angular frequency. If the power source provides a peak voltage of 60 V. what ore (c) the peak current in the circuit and (d) the average power dissipated in the circuit...

  • An effective AC voltage of 175 V at 60 Hz is applied to an RLC circuit...

    An effective AC voltage of 175 V at 60 Hz is applied to an RLC circuit with 26.7 mH in- ductor, 0.547 μF capacitor, and 42 Ω resistor in series. What is the effective current? Answer in units of A. What is the power factor of the circuit? What is the power consumed in the circuit? Answer in units of W. Answer within a tolerance of ± 2 percent.

  • Circuit Analysis in Electrical Engineering 4. A resistor and a capacitor are connected in series across a 270-V ac supply. When the frequency is 40 Hz, the current flowing in the circuit is 6.25...

    Circuit Analysis in Electrical Engineering 4. A resistor and a capacitor are connected in series across a 270-V ac supply. When the frequency is 40 Hz, the current flowing in the circuit is 6.25 A. When the frequency is 50 Hz, the current flowing in the circuit is 7.5 A Calculate the resistance and capacitance of the resistor and capacitor respectively. (99.97 μF; 16.798 Ω) If the resistor and capacitor are now connected in parallel across the 60-Hz supply, calculate...

  • A circuit has an ac voltage source and a resistor and capacitor connected in series. There is no inductor.

     A circuit has an ac voltage source and a resistor and capacitor connected in series. There is no inductor. The ac voltage source has voltage amplitude 0.900 kV and angular frequency w = 20.0 rad/s. The voltage amplitude across the capacitor is 0.500 kV. The resistor has resistance R= 0.300 kΩ. Part A What is the voltage amplitude across the resistor? Part B What is the capacitance C of the capacitor? Part C Does the source voltage lag or lead the current? Part D What is the average...
