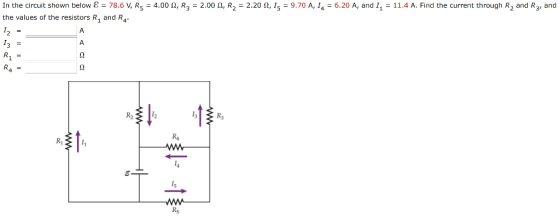

A In the circuit shown below & = 78.6 V, R5 = 4.00 12, R2 = 2.00 2, R2 = 2.20 2,15 = 9.70 A, 14 = 6.20 A, and I, = 11.4 A. Fi

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

Here,

Answers are

R4= 6.4194 or 6.42 ohm

I3 = 3.5 A

I2 = 14.91 A

R1 = 4.02 ohm

These are obtained by using kirchoff voltage and current law, which is,

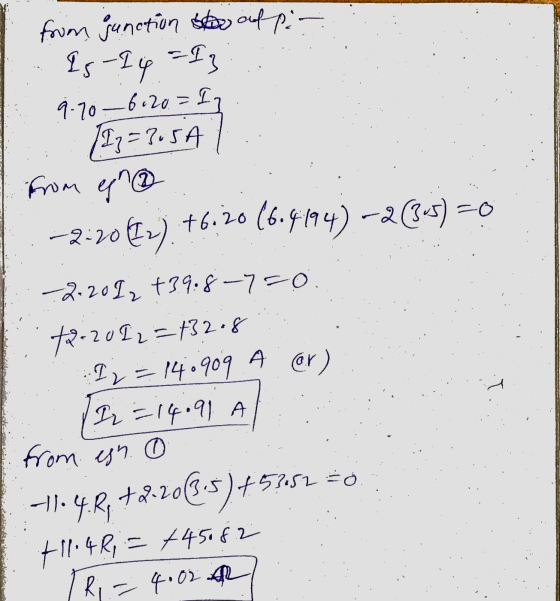

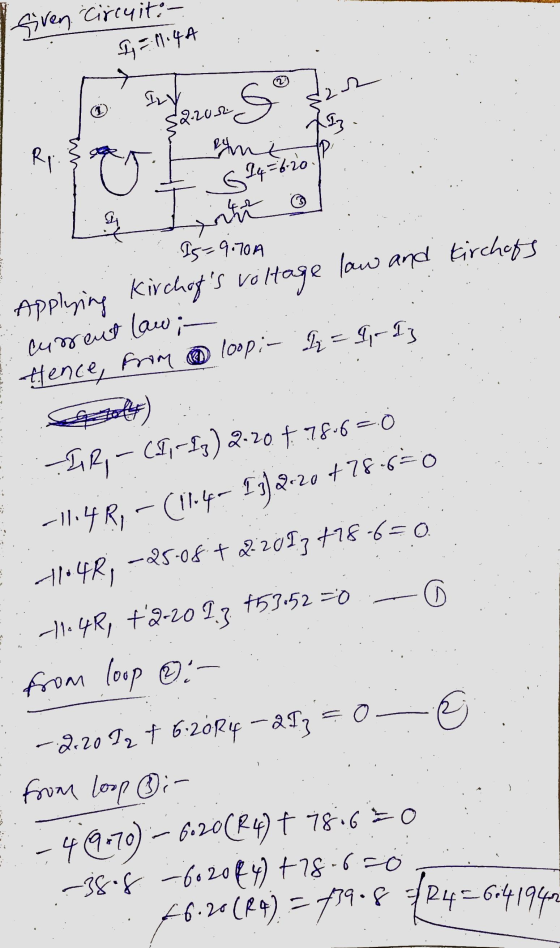

siven circuit:- L = 11:44 ILY 2 s .2.2002 org Iz Rynt 7o 6 14 = 6:20. الرعا 9 in Is=9.70A Kirchofs v voltage Applying 1. IRIfrom sunction staff: Is-14 =1} 9-70 -6.20=1 (12=3.5A from en -2-70kn). 76.20 (6.4194) -2(3-5) =0 -2.20 I2 +39.8-75o. +2-2022=

Please rate it if u like it. Tq
