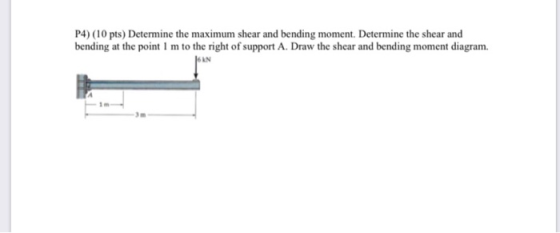

P4) (10 pts) Determine the maximum shear and bending moment. Determine the shear and bending at...

Question

Question

science physics

Answer 1

Answer #1

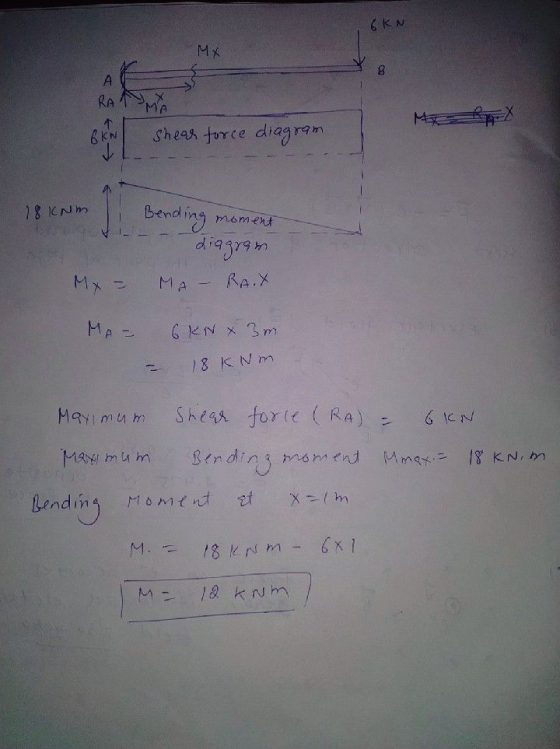

6kN MX B A RA SMA shear force diagram RIN 18 kNm moment Bending diagram My = MA- RA.X MA- 6 KNX 3m 18 KNm Maximum Shear force
