CQ3: What is the current after the switch has been closed for a very long time?...

Question

Question

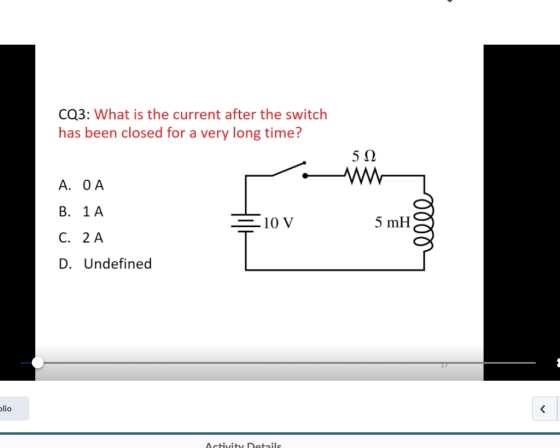

CQ3: What is the current after the switch has been closed for a very long time? 512 Α. ΟΑ B. 1A 10 V 5 mH 000 C. 2 A D. Undef

science physics

Answer 1

Answer #1

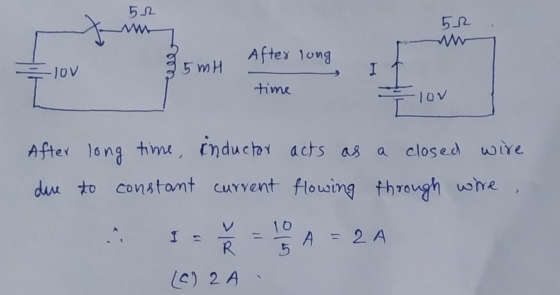

After long 10V 5 mH I time ·lov After long time, inductor acts as a closed wire due to constant current flowing through wire

Answer 2

Similar Homework Help Questions

After the switch has been closed and left closed for a very long time, what is...

After the switch has been closed and left closed for a very long time, what is the potential drop across the 60.0-Ω resistor? Can you please give a detailed and informative explanation for this answer. 100.0 V 10.00 40.0 mH 30.0 60.0 15.0
1. after the switch has been closed for a very long time it is suddenly opened....

1. after the switch has been closed for a very long time it is suddenly opened. What happens? Specifically explain what happens to the current in each of the resistors and the charge on the capacitors? 2. What is the current supplied by the battery the instant after the switch is closed? What is the current supplied by the battery after the switch has been closed for a very long time?
(b) what is the current through the battery after the switch has been closed for a...

(b) what is the current through the battery after the switch has been closed for a long time? In the circuit below R1 = 7.50, R2 = R3-50, and L = 31 mH. The battery supplies 12 V. mun 8 R2 ell (b) What is the current through the battery after the switch has been closed for a long time? Select one O a. 0.96 A Ob. 0.00 A c. 1.60 A d. 1.20 A e. 0.53 A

The following circuit contains a 10 V battery, a 5 resistor, a 5 mH inductor, and...

The following circuit contains a 10 V battery, a 5 resistor, a 5 mH inductor, and a switch connected in series. What is the battery current after the switch has been closed for a very long time? 512 w 10 V 5 mH 0000 Select one: o a. O A b.1A O c. 2 A d. 0.5 A
The switch in (Figure 1) has been open for a very long time. The switch is closed at t=0 s. Assume ε = 100 V.

The switch in (Figure 1) has been open for a very long time. The switch is closed at t=0 s. Assume ε = 100 V. At t = 0s, what is the current in the 60 Ω resistor? The switch in (Figure 1) has been open for a very long time. The switch is closed at t = 0 s. Assume ε = 100 V. At t =0s, what is the current in the 40 Ω resistor?At t = 0s, what is the...
After a very long time, the capacitor is discharged and switch A is closed. Switch B...

After a very long time, the capacitor is discharged and switch A is closed. Switch B remains closed. What is the magnitude of the current I1through resistor R1 immediately after switch A is closed ? Thank you! After a very long time, the capacitor is discharged and switch A is closed. Switch B remains closed. What is the magnitude of the current l1 through resistor R1 immediately after switch A is closed RA 250 R2 100 R3 100 E-17V 0.567...

2) What is 1(), the magnitude of the current through the resistor R after the switch...

2) What is 1(), the magnitude of the current through the resistor R after the switch has been closed for a very long time? A Submit 3) What is l_(-), the magnitude of the current through the inductor after the switch has been closed for a very long time? A Submit 4) After the switch has been closed for a very long time, it is then opened. What is Iz(topen), the current through the resistor R3 at a time topen...
I4(0) ... current through R4 just after switch is closed ... = 0.04196 A I4(∞) ......

I4(0) ... current through R4 just after switch is closed ... = 0.04196 A I4(∞) ... current through R4 after switch has been closed for a very long time ... = 0.05539 A IL(∞) ... current through inductor after switch has been closed for a very long time ... = 0.03767 A VL,max(closed) ... maximum voltage across inductor during the time when switch is closed ... = 4.28 V VL,max(open) ... maximum voltage across inductor during the time when switch...
13. The switch in the circuit below has been closed for a long time, after which...

13. The switch in the circuit below has been closed for a long time, after which it is opened. Just after the switch is opened, the potential difference across the inductor is (A) 30 V (B) 25 V (C) 20 V (D) 15 V (E) 10V (F) 5 V R = 1002 R = 300 25V R= 300 22 L= 20 uHŽ

For the circuit shown in Fig. 4.2, the switch has been closed for a long time...

For the circuit shown in Fig. 4.2, the switch has been closed for a long time and was open at t=0. For t >0, (a) Obtain the circuit in the s-domain (b) Determine the current 12(s) (c) Determine for iz(t). 16 H t=0 512 10 H 512 M + 5 V 8 H
