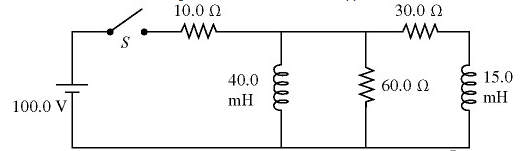

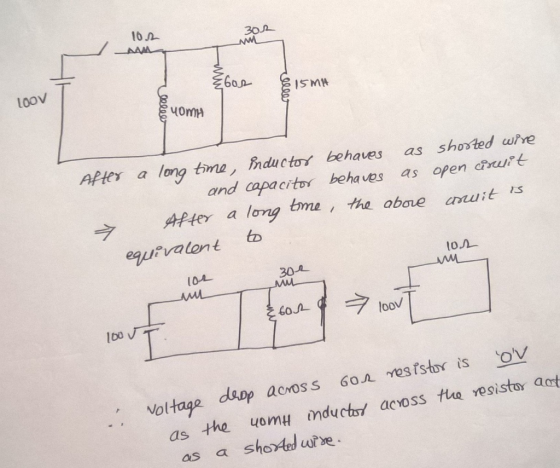

After the switch has been closed and left closed for a very long time, what is the potential drop across the 60.0-Ω resistor?


Can you please give a detailed and informative explanation for this answer.
