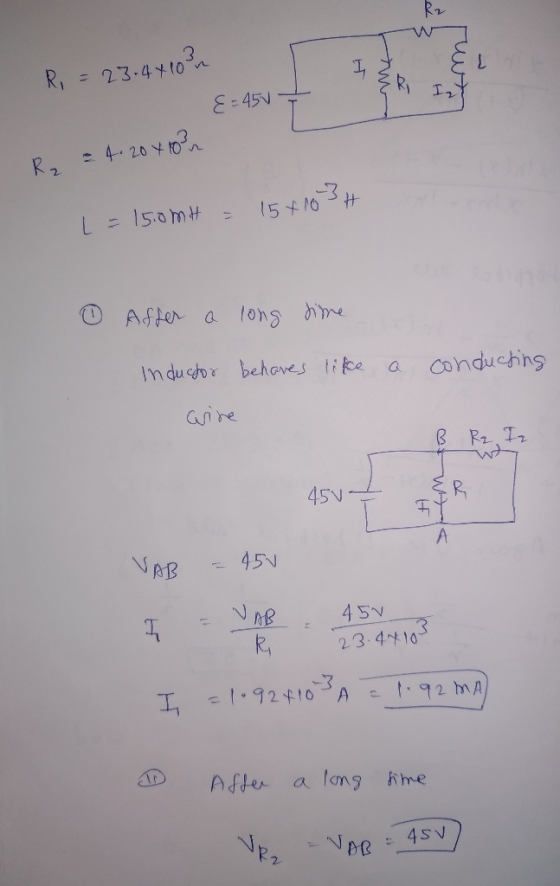

No currents flow in the circuit diagrammed before the switch is closed. Consider all the circuit elements to be ideal.
where R1= 23.4 kΩ, R2 = 4.20 kΩ, and L = 15.0 mH.
After the switch has been closed for a long time, what is the value of the current I1?
After the switch has been closed for a long time, what is the value of the potential difference across the resistor R2?
