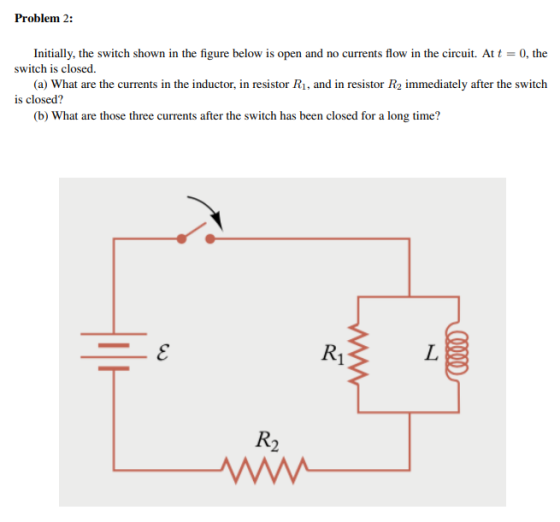

Problem 2: Initially, the switch shown in the figure below is open and no currents flow...
in the circuit the switch is initially open as shown w 1) In the circuit, the...
in the circuit the switch is initially open as shown
w 1) In the circuit, the switch is initially open as shown. At time 0 , the switch is closed. The values are: R = 100 92, R = 150 2, L=1.00 H, and 8 = 50.0 V. Explain your reasoning clearly in your answers to the following. a) Determine the currents (i, and in through each resistor immediately after the switch is closed. b) Determine each of these currents...
IP The switch in the circuit shown in the figure(Figure 1) is open initially. Part A...
IP The switch in the circuit shown in the figure(Figure 1) is
open initially.
Part A Find the current in the circuit a long
time after the switch is closed. Express your answer in terms of
some or all of the variables E, R1, R2, and
L.
Part B. Describe the behavior of the lightbulb
from the time the switch is closed until the current reaches the
value found in part A.
Part C. Now, suppose the switch is opened...
Problem 6. The circuit shown below initially has no charge on the capacitors and the switch...
Problem 6. The circuit shown below initially has no charge on
the capacitors and the switch S is originally open.R1= 4Ω,R2=
6Ω,R3= 8Ω,R4= 8Ω,C1= 2μF, and C2= 6μF.
a) Just after closing the switch S, find the currents I1,I2,I3,
and I4.
b) After the switch has been closed a very long time, find the
currents I1,I2,I3, and I4.
c) After the switch S has been closed for a very long time, find
the potential at points A,B, C, and D....
No currents flow in the circuit diagrammed before the switch is closed. Consider all the circuit...
No currents flow in the circuit diagrammed before the switch is
closed. Consider all the circuit elements to be ideal.
where R1= 23.4 kΩ, R2 =
4.20 kΩ, and L = 15.0 mH.
After the switch has been closed for a long time, what is the
value of the current I1?
After the switch has been closed for a long time, what is the
value of the potential difference across the resistor
R2?
45.0 + IS
A circuit is constructed with two resistors and one inductor as shown in the Figure below....
A circuit is constructed with two resistors and one inductor as shown in the Figure below. The values for the resistors are: R1 = 2.50 and R2 = 4.5 0. The battery voltage is V = 12 V. The switch S is initially open. S R V R2 L 000 1) After the switch has been opened a long time, it is closed. What is the magnitude of the voltage across L immediately after the switch is closed? O 7.7...
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown....
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1-R2-76 Ω, R3-105 Ω and R4-810. The inductance is L-478 mH and the battery voltage is V-24 V 1) The switch has been open for a long time when at time t - o, the switch is closed. What is 11(0), the magnitude of the current through the resistor R1 just after the switch is closed? A uIii...
Consider the RC circuit in the figure. The switch has been open for a long time...
Consider the RC circuit in the figure. The switch has been open for a long time and is closed at t=0s. The capacitor initially uncharged. (a) Immediately after the switch is closed, what is value of the current through each resistor? (b) After a long time has elapsed and the capacitor is fully charged, what is the value of the current through each resistor and the charge on the capacitor?
In the circuit below, the switch was open for a long time and then closed at t=0 s.
In the circuit below, the switch was open for a long time and then closed at t=0 s. The values of the emf, resistors, and capacitors are ε = 11.5V, R1 = 2.4 Ω, R2 = 7.4 Ω, R3 = 0.3 Ω, CA = 7.1 μF, CB = 5.0 μF.(a) Immediately after the switch is closed, what is the current
through resistor R1?A long time after the switch was closed, what are the charges
stored on the two capacitors?(b) on...
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown....
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1 = R2 = 49 Q, R = 105 Q and Ra = 142 . The inductance is L = 354 mH and the battery voltage is V = 12 V. The positive terminal of the battery is indicated with a + sign. "TII Luni 1) The switch has been open for a long time when at time...
In the circuit shown in the figure, the battery is ideal, = 12.6 V, L =...
In the circuit shown in the
figure, the battery is ideal, = 12.6 V, L = 11.3 mH, R1 = 11.1 ?,
and R2 = 20.1 ?. The switch has been open for a long time before it
is closed at t = 0. At what rate is the current in the inductor
changing (a) immediately after the switch is closed and (b) when
the current in the battery is 0.530 A? (c) What is the current (in
A) in...
in the circuit the switch is initially open as shown
w 1) In the circuit, the switch is initially open as shown. At time 0 , the switch is closed. The values are: R = 100 92, R = 150 2, L=1.00 H, and 8 = 50.0 V. Explain your reasoning clearly in your answers to the following. a) Determine the currents (i, and in through each resistor immediately after the switch is closed. b) Determine each of these currents...
IP The switch in the circuit shown in the figure(Figure 1) is
open initially.
Part A Find the current in the circuit a long
time after the switch is closed. Express your answer in terms of
some or all of the variables E, R1, R2, and
L.
Part B. Describe the behavior of the lightbulb
from the time the switch is closed until the current reaches the
value found in part A.
Part C. Now, suppose the switch is opened...
Problem 6. The circuit shown below initially has no charge on
the capacitors and the switch S is originally open.R1= 4Ω,R2=
6Ω,R3= 8Ω,R4= 8Ω,C1= 2μF, and C2= 6μF.
a) Just after closing the switch S, find the currents I1,I2,I3,
and I4.
b) After the switch has been closed a very long time, find the
currents I1,I2,I3, and I4.
c) After the switch S has been closed for a very long time, find
the potential at points A,B, C, and D....
No currents flow in the circuit diagrammed before the switch is
closed. Consider all the circuit elements to be ideal.
where R1= 23.4 kΩ, R2 =
4.20 kΩ, and L = 15.0 mH.
After the switch has been closed for a long time, what is the
value of the current I1?
After the switch has been closed for a long time, what is the
value of the potential difference across the resistor
R2?
45.0 + IS
A circuit is constructed with two resistors and one inductor as shown in the Figure below. The values for the resistors are: R1 = 2.50 and R2 = 4.5 0. The battery voltage is V = 12 V. The switch S is initially open. S R V R2 L 000 1) After the switch has been opened a long time, it is closed. What is the magnitude of the voltage across L immediately after the switch is closed? O 7.7...
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1-R2-76 Ω, R3-105 Ω and R4-810. The inductance is L-478 mH and the battery voltage is V-24 V 1) The switch has been open for a long time when at time t - o, the switch is closed. What is 11(0), the magnitude of the current through the resistor R1 just after the switch is closed? A uIii...
Consider the RC circuit in the figure. The switch has been open for a long time and is closed at t=0s. The capacitor initially uncharged. (a) Immediately after the switch is closed, what is value of the current through each resistor? (b) After a long time has elapsed and the capacitor is fully charged, what is the value of the current through each resistor and the charge on the capacitor?
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1 = R2 = 49 Q, R = 105 Q and Ra = 142 . The inductance is L = 354 mH and the battery voltage is V = 12 V. The positive terminal of the battery is indicated with a + sign. "TII Luni 1) The switch has been open for a long time when at time...
In the circuit shown in the
figure, the battery is ideal, = 12.6 V, L = 11.3 mH, R1 = 11.1 ?,
and R2 = 20.1 ?. The switch has been open for a long time before it
is closed at t = 0. At what rate is the current in the inductor
changing (a) immediately after the switch is closed and (b) when
the current in the battery is 0.530 A? (c) What is the current (in
A) in...
