Question

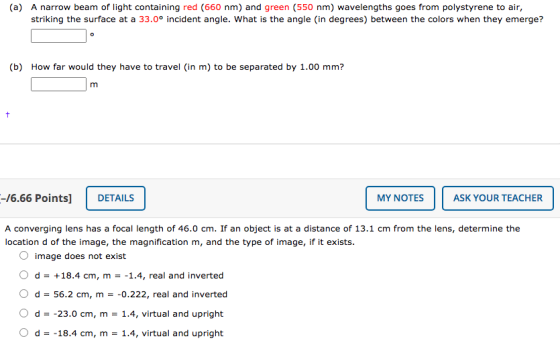

(a) A narrow beam of light containing red (660 nm) and green (550 nm) wavelengths goes from polystyrene to air, striking the surface at a 33.0 incident angle. What is the angle in degrees) between the colors when they emerge? (b) How far would they have to travel in m) to be separated by 1.00 mm? m + C-16.66 Points) DETAILS MY NOTES ASK YOUR TEACHER A converging lens has a focal length of 46.0 cm. If an object is at a distance of 13.1 cm from the lens, determine the location d of the image, the magnification m, and the type of image, if it exists. image does not exist d = +18.4 cm, m = -1.4, real and inverted d = 56.2 cm, m = -0.222, real and inverted d = -23.0 cm, m = 1.4, virtual and upright d = -18.4 cm, m = 1.4, virtual and upright

Answer 1

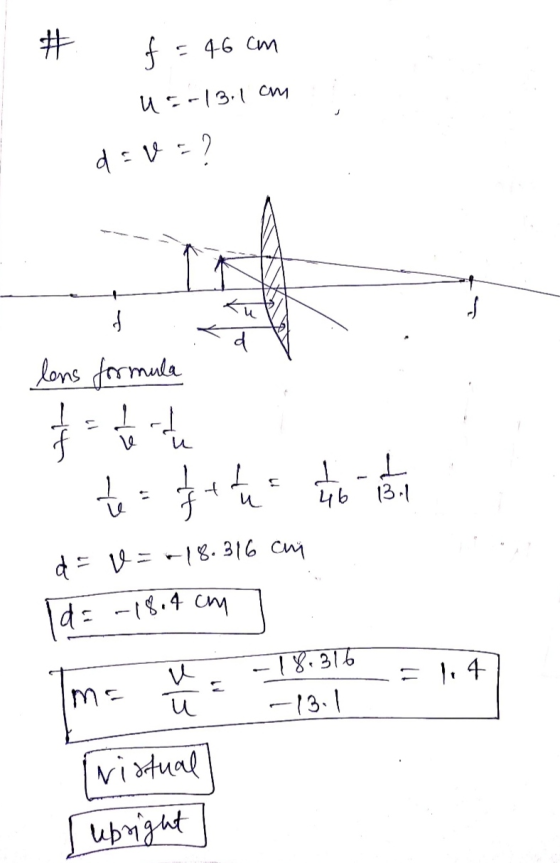

# f = 46 cm u-13.1 cm d=VE? f d lens formula st 1 + I-L 46 1311 te d = v. Id = -18.4 cm -18.316 cui -18.316 = 114 ma u -13.1 nistual upright
