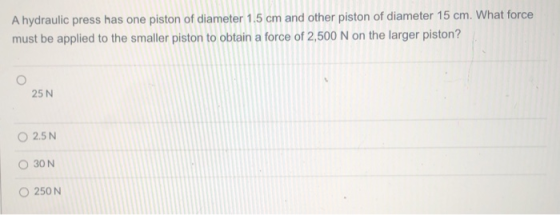

A hydraulic press has one piston of diameter 1.5 cm and other piston of diameter 15...

Question

Question

science physics

Answer 1

Answer #1

Pascal's Principle:

will be Pascals principles a. In hydraulic equally prees, pressure transfered => P = P2 Fi AL N F2 Ag Now, Ai=- rota 1.5810-

Answer 2

Similar Homework Help Questions

A hydraulic press has one piston of diameter 2.0 cm and the other piston of diameter...

A hydraulic press has one piston of diameter 2.0 cm and the other piston of diameter 8.0 cm. What force must be applied to the smaller piston to obtain a force of 1600 N at the larger piston? 1) 6.25 N 2) 25 N 3) 100 N 4) 400 N 5) 1600 N Question 2 (1 point) A penny has a diameter of 19.55 mm, a thickness of 1.55 mm and a mass of 2.500 g. What is the density?...
The small piston of a hydraulic lift has a diameter of 8.0 cm, and large piston...

The small piston of a hydraulic lift has a diameter of 8.0 cm, and large piston has a diameter of 40 cm. The lift raises a load of 15,000 N. Determine the force that must be applied to the small piston. Determine the pressure applied to the fluid in the lift.
What force must be applied to a 2.5 cm diameter piston in a hydraulic lift system...

What force must be applied to a 2.5 cm diameter piston in a hydraulic lift system i order to lift a truck of mass 1210 kg upon a platform supported by a 15 cm diameter piston?

Example: Aliguld is the hydraulic line shown. A 50 block sits on the larger piston. The...

Example: Aliguld is the hydraulic line shown. A 50 block sits on the larger piston. The smaller piston a diameter of 10 cm and the larger pistan has a diameter of 80 cm a) Determine the area of the input piston. bi Determine the area of the output piston. c) How much force is needed on the smaller piston to raise the piston 40 cm? d) By what factor is the input force increased in this hydraulic device? e) How...
b) A hydraulic press (Figure 4) has a small and large piston with diameter of 50...

b) A hydraulic press (Figure 4) has a small and large piston with diameter of 50 mm and 400 mm, respectively. i) Calculate the force (F2) required to hold the weight of container when the force applied at the small piston is 800 N and both pistons are at the same elevation (h=0). [7 Marks) i) w Compare and discuss the force with pat b () if the height has been lifted three meters. Support your answer with calculations. [5...
10) The smaller and larger pistons of a hydraulic press have diameters of 7 and 50...

10) The smaller and larger pistons of a hydraulic press have diameters of 7 and 50 cm A) what input force is required to deliver a total output force of 2300 N? B) how far does the smaller piston have to move to raise the large piston 12 cm?

How far must a 2.0-cm-diameter piston be pushed down into one cylinder of a hydraulic lift...

How far must a 2.0-cm-diameter piston be pushed down into one cylinder of a hydraulic lift to raise an 7-cm-diameter piston by 30 cm?
A hydraulic lift has pistons that are 1 cm and 15 cm in diameter. If a...

A hydraulic lift has pistons that are 1 cm and 15 cm in diameter. If a force of 180 N is applied to the master cylinder, what is the largest mass that the lift can support?
The radii of the small piston and the large piston of a hydraulic press are 1...

The radii of the small piston and the large piston of a hydraulic press are 1 m-and 10 m-respectively. Find the upward thrust on the large piston when 20 N force is applied to the small piston 1000 N 2000 N 3000 N 5000 N 4000 N

a force of 227N is applied to a hydraulic jack piston that is 0.0250m in diameter....

a force of 227N is applied to a hydraulic jack piston that is 0.0250m in diameter. the piston supporting the load has a diameter of 0.175m (ignore any difference in height between the two pistons) a. what is the magnitude of the output force (N) on the hydraulic jack? b. how much mass (kg) can be lifted by the jack?
