What force must be applied to a 2.5 cm diameter piston in a hydraulic lift system...

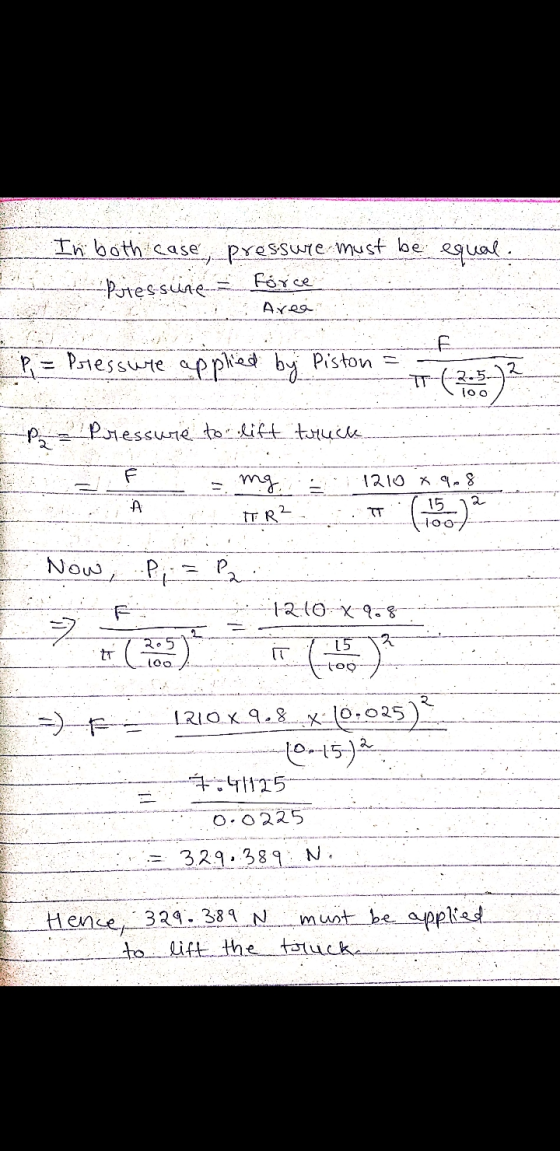

What force must be applied to a 2.5 cm diameter piston in a hydraulic lift system i order to lift a truck of mass 1210 kg upon a platform supported by a 15 cm diameter piston?
Homework Answers
Kindly
like the answer if it is correct.Add Answer to:
What force must be applied to a 2.5 cm diameter piston in a
hydraulic lift system...
The small piston of a hydraulic lift has a diameter of 8.0 cm, and large piston...
The small piston of a hydraulic lift has a diameter of 8.0 cm, and large piston has a diameter of 40 cm. The lift raises a load of 15,000 N. Determine the force that must be applied to the small piston. Determine the pressure applied to the fluid in the lift.
Pascal’s principle: What force must be exerted on the master cylinder of a hydraulic lift to...
Pascal’s principle: What force must be exerted on the master cylinder of a hydraulic lift to support the weight of a 1800 kg car resting on the slave cylinder? The master cylinder has a 2.00 cm diameter and the slave has a 25.0 cm diameter. Pascal’s principle: A barber’s chair rests on a hydraulic piston 10 cm in diameter. The input side has a piston with cross-sectional area of 10 cm2 which is pumped on using a foot pedal. If...
A hydraulic lift uses a compressor to compress the hydraulic fluid with a moving piston (piston...

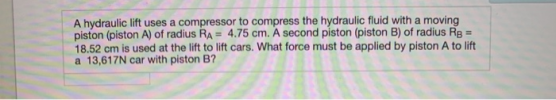

A hydraulic lift uses a compressor to compress the hydraulic fluid with a moving piston (piston A) of radius RA = 4.75 cm. A second piston (piston B) of radius Rg = 18.52 cm is used at the lift to lift cars. What force must be applied by piston A to lift a 13,617N car with piston B?
An automobile of mass 500 kg is supported by a hydraulic lift having a large piston...
An automobile of mass 500 kg is supported by a hydraulic lift having a large piston of cross-sectional area 15 m 2. The mechanic has a foot pedal attached to a small piston of cross-sectional area 0.5 m2. What force in Newtons must be applied to the small piston to raise the automobile? What distance must the small piston be moved to raise the automobile 0.4 m?
a force of 227N is applied to a hydraulic jack piston that is 0.0250m in diameter....
a force of 227N is applied to a hydraulic jack piston that is 0.0250m in diameter. the piston supporting the load has a diameter of 0.175m (ignore any difference in height between the two pistons) a. what is the magnitude of the output force (N) on the hydraulic jack? b. how much mass (kg) can be lifted by the jack?
How far must a 2.0-cm-diameter piston be pushed down into one cylinder of a hydraulic lift...
How far must a 2.0-cm-diameter piston be pushed down into one cylinder of a hydraulic lift to raise an 7-cm-diameter piston by 30 cm?
6. A hydraulic lift system has a small piston (r = 10 cm) and a large...

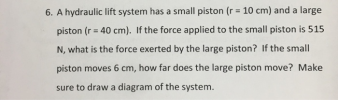

6. A hydraulic lift system has a small piston (r = 10 cm) and a large piston (r = 40 cm). If the force applied to the small piston is 515 N, what is the force exerted by the large piston? If the small piston moves 6 cm, how far does the large piston move? Make sure to draw a diagram of the system.
A hydraulic lift has pistons that are 1 cm and 15 cm in diameter. If a...
A hydraulic lift has pistons that are 1 cm and 15 cm in diameter. If a force of 180 N is applied to the master cylinder, what is the largest mass that the lift can support?
A hydraulic press has one piston of diameter 2.0 cm and the other piston of diameter...
A hydraulic press has one piston of diameter 2.0 cm and the other piston of diameter 8.0 cm. What force must be applied to the smaller piston to obtain a force of 1600 N at the larger piston? 1) 6.25 N 2) 25 N 3) 100 N 4) 400 N 5) 1600 N Question 2 (1 point) A penny has a diameter of 19.55 mm, a thickness of 1.55 mm and a mass of 2.500 g. What is the density?...
A hydraulic press has one piston of diameter 1.5 cm and other piston of diameter 15...
A hydraulic press has one piston of diameter 1.5 cm and other piston of diameter 15 cm. What force must be applied to the smaller piston to obtain a force of 2,500 N on the larger piston? 25N 2.5N 30 N 250 N
The small piston of a hydraulic lift has a diameter of 8.0 cm, and large piston has a diameter of 40 cm. The lift raises a load of 15,000 N. Determine the force that must be applied to the small piston. Determine the pressure applied to the fluid in the lift.
A hydraulic lift uses a compressor to compress the hydraulic fluid with a moving piston (piston A) of radius RA = 4.75 cm. A second piston (piston B) of radius Rg = 18.52 cm is used at the lift to lift cars. What force must be applied by piston A to lift a 13,617N car with piston B?
6. A hydraulic lift system has a small piston (r = 10 cm) and a large piston (r = 40 cm). If the force applied to the small piston is 515 N, what is the force exerted by the large piston? If the small piston moves 6 cm, how far does the large piston move? Make sure to draw a diagram of the system.
A hydraulic press has one piston of diameter 2.0 cm and the other piston of diameter 8.0 cm. What force must be applied to the smaller piston to obtain a force of 1600 N at the larger piston? 1) 6.25 N 2) 25 N 3) 100 N 4) 400 N 5) 1600 N Question 2 (1 point) A penny has a diameter of 19.55 mm, a thickness of 1.55 mm and a mass of 2.500 g. What is the density?...
A hydraulic press has one piston of diameter 1.5 cm and other piston of diameter 15 cm. What force must be applied to the smaller piston to obtain a force of 2,500 N on the larger piston? 25N 2.5N 30 N 250 N
