Homework Answers

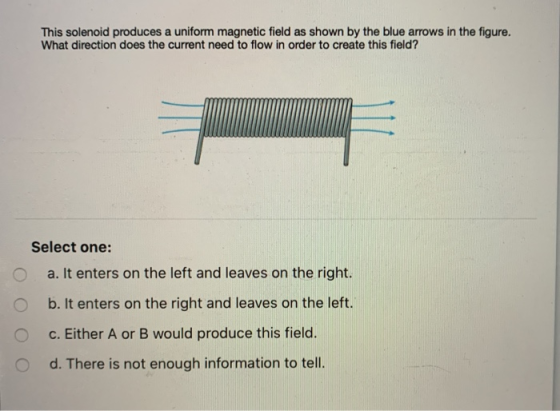

From right hand rule we can find the direction of current,
When electric current moves from left to right aling the turns of solenoid, which can be represented by wrap the fingers of right hand around solenoid, then the direction of thumb represetns the direction of the magnetic field.
In the given case, current enters on the left and leaves on the right.
Correct option: (a)
