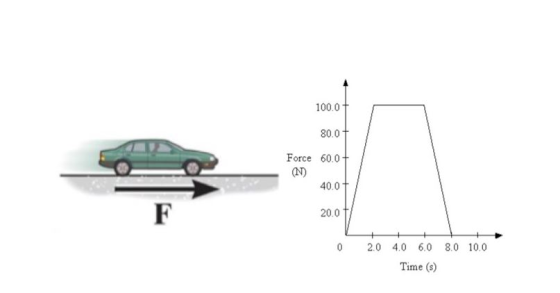

The 1610 kg car’s wheels exerts the F-t graph shown in order to change speeds. If the car was traveling at 50 m/s before the force was applied, what is the velocity (in m/s) of the car after 8 seconds?
Homework Answers
Add Answer to:
The 1610 kg car’s wheels exerts the F-t graph shown in order to
change speeds. If...
3. Below is a F vs x graph and a F vs t graph. What do the areas under each curve represent? F(N)...
3. Below is a F vs x graph and a F vs t graph. What do the areas under each curve represent? F(N) 100.0 80.0 Force 60.0 40.0 20.0 10N (1の 5Ni--- 0 20 4.0 6.0 8.0 10.0 Time (s) 4m 8m 12m14m 'X(m)
3. Below is a F vs x graph and a F vs t graph. What do the areas under each curve represent? F(N) 100.0 80.0 Force 60.0 40.0 20.0 10N (1の 5Ni--- 0 20 4.0 6.0...
The wheels on the 1500 kg car generate the friction force F described by the graph....
The wheels on the 1500 kg car generate the friction force F
described by the graph. If the car starts from rest, determine its
speed (in m/s) when t = 6 seconds.
Please use four significant figures in the final answer.
Thank you! :)
The wheels on the 1500 kg car generate the friction force F described by the graph. If the car starts from rest, determine its speed (in m/s) when t = 6 seconds. F (kN) F 6...
1. (Show work) A 120.0 lb person stands in an elevator. If the elevator is slowing...
1. (Show work) A 120.0 lb person stands in an elevator. If the elevator is slowing while moving downwards the force that the floor exerts on the person is: a) less than 120.0 lbs b) more than 120.0 lbs c) 120.0 lbs 2. A ball is thrown upwards into the air with an initial velocity of 10.0 m/s at 60.0 degrees to the horizontal. Assuming it reaches a maximum height then falls back down to the ground, what is its...
A 4.2 kg particle moving along the x-axis is acted upon by the force whose functional...
A 4.2 kg particle moving along the x-axis is acted upon
by the force whose functional form appears below. The velocity of
the particle at x = 0 is v = 6.6 m/s.
(a) Find the particle's speed (in m/s) at x = 2.0
m.
____ m/s
(b) Find the particle's speed (in m/s) at x = 5.0
m.
____ m/s
(c) Find the particle's speed (in m/s) at x = 10.0
m.
____ m/s
(d) Does the particle turn...
A child pulls a wagon at a constant velocity along a level sidewalk. The child does...
A child pulls a wagon at a constant velocity along a level sidewalk. The child does this by a 22-newton force to the inclined at 35° to the s n handle, which is k as shown below 35° Level sidewalk What is the magnitude of the force of friction on the wagon? (3) 18 N (4) 22 N (2) 13 N The graph below shows the relationship between the speed and elapsed time for an object falling freely from rest...
please answer 12-14 12) The graph shows the force on an object as it moves a...
please answer 12-14
12) The graph shows the force on an object as it moves a distance x. What is the work done by the force as the object moves from 2.0 m to 8.0 m? F(ND A) 35 ) B) 48 ) C) 50 J D) 52) E) 60 x (m) 13) A car traveling at 30 mph skids to a stop in 60 meters. If an identical car traveling at 60 mph skids to a stop under the...
4. In this experiment students measure the force (F) holding a 2.0 kg mass on rotating...
4. In this experiment students measure the force (F) holding a 2.0 kg mass on rotating platfornm of radius r when the mass is traveling at different velocities (v). The centripetal force acting on an object of mass m can be expressed as mv E N 2.0 v (m/s) 0.46 0.55 0.61 0.70 0.78 4.0 5.0 6.0 Plot a graph for this data and find the radius from your linear fit equation assuming that m 2.0 kg. Note: 1 N...
7. AS kg ball is initially at rest on a horizontal frictionless surface as shown to...
7. AS kg ball is initially at rest on a horizontal frictionless surface as shown to the right. A hard plastic cube of mass 0.5 kg slides across the surface at a speed of 26 ms and strikes the ball The figure below shows a graph of the force exerted on the ball by the cube as a function of time. Oslo Force (x10'N) 10 2.0 10.0 4.0 6.0 8.0 Time (x10's) A) Determine the total impulse given to the...
PLEASE EXPLAIN ALL ANSWERS 3 kg vertically cing is 10 kg g is used to frictionless...
PLEASE EXPLAIN ALL ANSWERS
3 kg vertically cing is 10 kg g is used to frictionless maximum these ag is most 11. Three blocks, A, B, and C. of masses 1, 2, and 3 kg, respectively, are initially at rest on a frictionless surface as indicated in the figure above. What force has to be applied on block C 5= 200 mis? to accelerate the three blocks at 2 m/s? (A) 0.33 N (2) +22) 4362) 16 V=20mis (B) 1.5...
What are the Solutions to Part B of Chapter 2 of Tillery Physics 9th edition.......kinda pointless...
What are the Solutions to Part B of Chapter 2 of Tillery Physics 9th edition.......kinda pointless for you guys to only have the solutions that the book has already. 1. What was the average speed in km/h of a car that travels 400.0 km in 4.5 h? 2. What was the average speed in km/h of a boat that moves 15.0 km across a lake in 45 min? 3. How much would a 80.0 kg person weigh (a) on Mars,...
3. Below is a F vs x graph and a F vs t graph. What do the areas under each curve represent? F(N) 100.0 80.0 Force 60.0 40.0 20.0 10N (1の 5Ni--- 0 20 4.0 6.0 8.0 10.0 Time (s) 4m 8m 12m14m 'X(m)
3. Below is a F vs x graph and a F vs t graph. What do the areas under each curve represent? F(N) 100.0 80.0 Force 60.0 40.0 20.0 10N (1の 5Ni--- 0 20 4.0 6.0...
The wheels on the 1500 kg car generate the friction force F
described by the graph. If the car starts from rest, determine its
speed (in m/s) when t = 6 seconds.
Please use four significant figures in the final answer.
Thank you! :)
The wheels on the 1500 kg car generate the friction force F described by the graph. If the car starts from rest, determine its speed (in m/s) when t = 6 seconds. F (kN) F 6...
A 4.2 kg particle moving along the x-axis is acted upon
by the force whose functional form appears below. The velocity of
the particle at x = 0 is v = 6.6 m/s.
(a) Find the particle's speed (in m/s) at x = 2.0
m.
____ m/s
(b) Find the particle's speed (in m/s) at x = 5.0
m.
____ m/s
(c) Find the particle's speed (in m/s) at x = 10.0
m.
____ m/s
(d) Does the particle turn...
A child pulls a wagon at a constant velocity along a level sidewalk. The child does this by a 22-newton force to the inclined at 35° to the s n handle, which is k as shown below 35° Level sidewalk What is the magnitude of the force of friction on the wagon? (3) 18 N (4) 22 N (2) 13 N The graph below shows the relationship between the speed and elapsed time for an object falling freely from rest...
please answer 12-14
12) The graph shows the force on an object as it moves a distance x. What is the work done by the force as the object moves from 2.0 m to 8.0 m? F(ND A) 35 ) B) 48 ) C) 50 J D) 52) E) 60 x (m) 13) A car traveling at 30 mph skids to a stop in 60 meters. If an identical car traveling at 60 mph skids to a stop under the...
4. In this experiment students measure the force (F) holding a 2.0 kg mass on rotating platfornm of radius r when the mass is traveling at different velocities (v). The centripetal force acting on an object of mass m can be expressed as mv E N 2.0 v (m/s) 0.46 0.55 0.61 0.70 0.78 4.0 5.0 6.0 Plot a graph for this data and find the radius from your linear fit equation assuming that m 2.0 kg. Note: 1 N...
7. AS kg ball is initially at rest on a horizontal frictionless surface as shown to the right. A hard plastic cube of mass 0.5 kg slides across the surface at a speed of 26 ms and strikes the ball The figure below shows a graph of the force exerted on the ball by the cube as a function of time. Oslo Force (x10'N) 10 2.0 10.0 4.0 6.0 8.0 Time (x10's) A) Determine the total impulse given to the...
PLEASE EXPLAIN ALL ANSWERS
3 kg vertically cing is 10 kg g is used to frictionless maximum these ag is most 11. Three blocks, A, B, and C. of masses 1, 2, and 3 kg, respectively, are initially at rest on a frictionless surface as indicated in the figure above. What force has to be applied on block C 5= 200 mis? to accelerate the three blocks at 2 m/s? (A) 0.33 N (2) +22) 4362) 16 V=20mis (B) 1.5...
