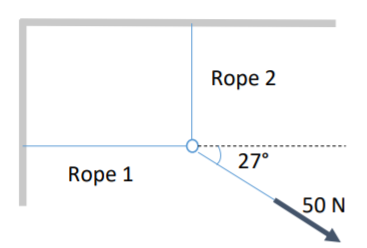

. Three ropes are attached to a
very light ring. See the diagram below. The view in the diagram is
looking down on the system. Two ropes are anchored to walls at
right angles. The third rope pulls as shown. The system is in
static equilibrium.
a. Draw a free body diagram of the ring, including a coordinate system.
b. What is the magnitude of the tension in Rope 1? T1 =
c. What is the magnitude of the tension in Rope 2? T2 =

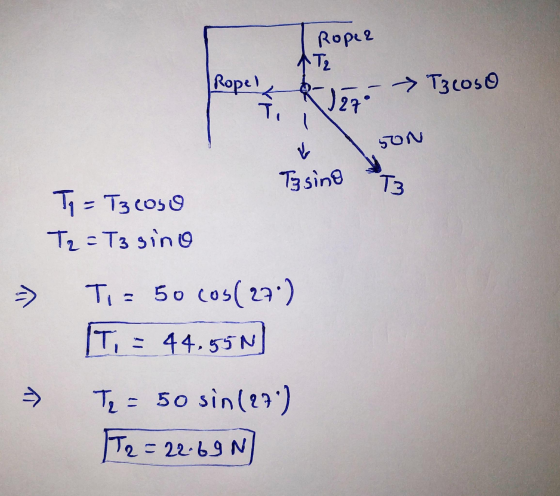

Homework Answers
Add Answer to:
. Three ropes are attached to a
very light ring. See the diagram below. The view...
1. Three ropes are attached to a very light ring. See the diagram below. The view...
1. Three ropes are attached to a very light ring. See the diagram below. The view in the diagram is looking down on the system. Two ropes are anchored to walls at right angles. The third rope pulls as shown. The system is in static equilibrium. a. Draw a free body diagram of the ring, including a coordinate system. (6) b. What is the magnitude of the tension in Rope 1? (7) T1 = c. What is the magnitude of...
The three ropes in figure P5.1 are tied to a small, very light ring. Two ropes...
The three ropes in figure P5.1 are tied to a small, very light ring. Two ropes are anchored to walls at right angles, and the third rope pulls as shown. What is the T1 and T2 the magnitudes of the tension forces in the first two ropes?
The three ropes in FIGURE are tied to a small, very light ring. Two of these ropes are anchored...
The three ropes in FIGURE are tied to a small, very light ring. Two of these ropes are anchored to walls at right angles with the tensions shown in the figure. What is the magnitude of the tension in the third rope? Use a=0.63 m, b=0.57 m, T1=39.7 N, T2=91.1 N.What is the direction of the tension in the third rope? (relative to horizontal)
1. The three ropes in the figure are tied to a small, very light ring. Two...
1. The three ropes in the figure are tied to a small, very light
ring. Two of the ropes are anchored to walls at right angles, and
the third rope pulls as shown. What are T1and T2, the magnitudes of
the tension forces in the first two ropes?
A. T1=
B T2=
3. The two angled ropes used to support the crate in the figure
below can withstand a maximum tension of 1700N before they
break.
A. What is the...
three ropes are attached to a center ring and are in equilibrium (balanced). The first rope...
three ropes are attached to a center ring and are in equilibrium (balanced). The first rope is being pulled with 156 lb of force in a direction 35 degree north of east. the third rope is being pulled with a tension of 294 lb due south. what is the tension (magnitude and direction CCW from east) in the second rope
Problem 1. An oil rig in the Gulf is held steady at its designated drilling location...
Problem 1.
An oil rig in the Gulf is held steady at its designated drilling
location by three tugboats (see figure). Tugboat A pulls with 53000
N straight in the easterly direction. Tugboat B pulls at an angle
of 27 degree north of west. Tugboat C pulls 31 degree west of
south.
a) Draw a proper free-body diagram.
b) Find the magnitude of the tension of the ropes attached to
tugboats B and C.
(Show your work step by step....
An oil rig in the Gulf is held steady at its designated drilling location by three...
An oil rig in the Gulf is held steady at its designated drilling location by three tugboats (see figure). Tugboat A pulls with 54330 N straight in the easterly direction. Tugboat B pulls at an angle of 45 degree north of west. Tugboat C pulls 42 degree west of south. Draw a proper free-body diagram. Find the magnitude of the tension of the ropes attached to tugboats B and C. (Show your work step by step. Always use units with...
Answer all parts 1.(50 points) Two blocks of masses Mi and M2 hang one under the...
Answer all parts
1.(50 points) Two blocks of masses Mi and M2 hang one under the other as shown in the figure below. For this problem, take the positive direction to be upward and use g for the magnitude of the acceleration due to gravity 72 Fore parts a-c assume that the blocks are at rest. (10 points) Draw a free body diagram for each block separately and clearly identify your a) b) (10 points) Find the tension T2 in...
A small sphere of charge q+67 pC and mass m-5.4 g is attached to a light...
A small sphere of charge q+67 pC and mass m-5.4 g is attached to a light string and placed in a uniform electric field e that makes an angle θ-31° with the horizontal. The opposite end of the string is attached to a wall and the sphere is in static equilibrium when the string is horizontal as in the figure shown below. (a) Construct a free body diagram for the sphere. (Submit a file with a maximum size of 1...
1. Three ropes are attached to a very light ring. See the diagram below. The view in the diagram is looking down on the system. Two ropes are anchored to walls at right angles. The third rope pulls as shown. The system is in static equilibrium. a. Draw a free body diagram of the ring, including a coordinate system. (6) b. What is the magnitude of the tension in Rope 1? (7) T1 = c. What is the magnitude of...
1. The three ropes in the figure are tied to a small, very light
ring. Two of the ropes are anchored to walls at right angles, and
the third rope pulls as shown. What are T1and T2, the magnitudes of
the tension forces in the first two ropes?
A. T1=
B T2=
3. The two angled ropes used to support the crate in the figure
below can withstand a maximum tension of 1700N before they
break.
A. What is the...
Problem 1.
An oil rig in the Gulf is held steady at its designated drilling
location by three tugboats (see figure). Tugboat A pulls with 53000
N straight in the easterly direction. Tugboat B pulls at an angle
of 27 degree north of west. Tugboat C pulls 31 degree west of
south.
a) Draw a proper free-body diagram.
b) Find the magnitude of the tension of the ropes attached to
tugboats B and C.
(Show your work step by step....
An oil rig in the Gulf is held steady at its designated drilling location by three tugboats (see figure). Tugboat A pulls with 54330 N straight in the easterly direction. Tugboat B pulls at an angle of 45 degree north of west. Tugboat C pulls 42 degree west of south. Draw a proper free-body diagram. Find the magnitude of the tension of the ropes attached to tugboats B and C. (Show your work step by step. Always use units with...
Answer all parts
1.(50 points) Two blocks of masses Mi and M2 hang one under the other as shown in the figure below. For this problem, take the positive direction to be upward and use g for the magnitude of the acceleration due to gravity 72 Fore parts a-c assume that the blocks are at rest. (10 points) Draw a free body diagram for each block separately and clearly identify your a) b) (10 points) Find the tension T2 in...
A small sphere of charge q+67 pC and mass m-5.4 g is attached to a light string and placed in a uniform electric field e that makes an angle θ-31° with the horizontal. The opposite end of the string is attached to a wall and the sphere is in static equilibrium when the string is horizontal as in the figure shown below. (a) Construct a free body diagram for the sphere. (Submit a file with a maximum size of 1...
