three ropes are attached to a center ring and are in equilibrium (balanced). The first rope...

three ropes are attached to a center ring and are in equilibrium (balanced). The first rope is being pulled with 156 lb of force in a direction 35 degree north of east. the third rope is being pulled with a tension of 294 lb due south. what is the tension (magnitude and direction CCW from east) in the second rope

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

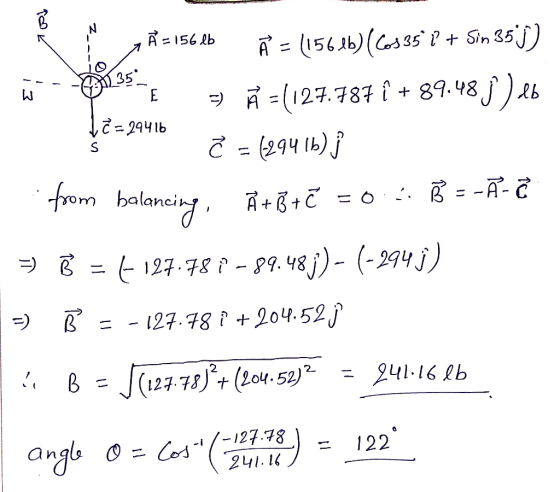

Answer #1

please give a thumb up. Thank you...

0 0
