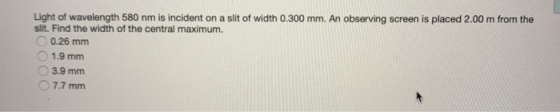

Light of wavelength 580 nm is incident on a slit of width 0.300 mm. An observing...

Question

Question

science physics

Answer 1

Answer #1

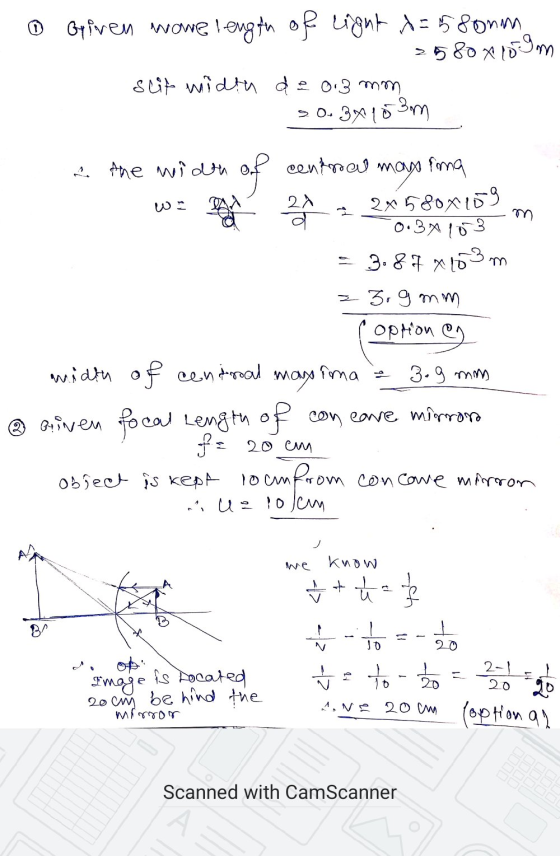

① Griven wone length of light s=588mm 3.580 x 10.9m slit width d so. 3x10 m 2 0.3 mm the wide of centroca mano fima a 22 2x58

Answer 2

Similar Homework Help Questions

4. 580 nm light is incident on a vertical slit of width 0.035 mm. On a...

4. 580 nm light is incident on a vertical slit of width 0.035 mm. On a screen 2.0 m away, a horizontal pattern of light and dark appears. Describe (and/or draw a and calculate the dimensions of the major features of the pattern. diagram) the pattern 4. 580 nm light is incident on a vertical slit of width 0.035 mm. On a screen 2.0 m away, a horizontal pattern of light and dark appears. Describe (and/or draw a and calculate...
Light with wavelength 508. nm is incident on a slit with width 0.016 mm. The distance...

Light with wavelength 508. nm is incident on a slit with width 0.016 mm. The distance from the slit to a screen is 284. cm. Calculate the percentage of the intensity at a point on the screen 30.0 mm from the central maximum relative to the intensity at the central maximum.
Monochromatic light with wavelength 654 nm is incident on a slit with width 0.0247 mm. The...

Monochromatic light with wavelength 654 nm is incident on a slit with width 0.0247 mm. The distance from the slit to a screen is 4.8 m. Consider a point on the screen 1.0 cm from the central maximum. Calculate (a) θ for that point, (b) α, and (c) the ratio of the intensity at that point to the intensity at the central maximum.

Red light of wavelength 675 nm is incident on a slit of width 4.56 × 10−6...

Red light of wavelength 675 nm is incident on a slit of width 4.56 × 10−6 m. An observing screen is placed 1.50 m from the slit. 9a) Find the distance between the third order dark fringe and the central bright fringe (in meters).
Light of wavelength 454 nm is incident on a slit of width 0.22 mm, and a...

Light of wavelength 454 nm is incident on a slit of width 0.22 mm, and a diffraction pattem is produced on a screen that is 2.00 m from the slit. What is the width of the central bright fringe? (1 nm - 10-ºm) 1.7E-2 m 8.3E-3 m 4.1E-3 m 2.5E-2 m 1.0E-3 m
Light of wavelength 608.0 nm is incident on a narrow slit. The diffraction pattern is viewed...

Light of wavelength 608.0 nm is incident on a narrow slit. The diffraction pattern is viewed on a screen 94.5 cm from the slit. The distance on the screen between the second order minimum and the central maximum is 1.21 cm. What is the width of the slit, in mm?

Light of wavelength 588.0 nm is incident on a narrow slit. The diffraction pattern is viewed...

Light of wavelength 588.0 nm is incident on a narrow slit. The diffraction pattern is viewed on a screen 83.5 cm from the slit. The distance on the screen between the third order minimum and the central maximum is 1.37 cm. What is the width of the slit? Number mm
A 0.50-mm-wide slit is illuminated by light of wavelength 500 nm. What is the width of...

A 0.50-mm-wide slit is illuminated by light of wavelength 500 nm. What is the width of the central maximum on a screen 2.0 m behind the slit? Please answer in mm.
Light of wavelength 613.0 nm is incident on a narrow slit.

Light of wavelength 613.0 nm is incident on a narrow slit. The diffraction pattern is viewed on a screen 83.5 cm from the slit. The distance on the screen between the fifth order minimum and the central maximum is 1.85 cm. What is the width a of the slit in micrometers (μm)?

Light of wavelength 540 nanometer is incident on a slit of width 0.150 mm and a...

Light of wavelength 540 nanometer is incident on a slit of width 0.150 mm and a diffraction pattern is produced on a screen that is 2.00 m from the slit. If the dark images are very very thin, what is the width of the central bright fringe in cm ? (1nanometer = 1x 10-9 m) ( 10 pts ) 1.44 cm 0.720 cm 2.16 cm 1.76 cm
