Monochromatic light with wavelength 654 nm is incident on a slit with width 0.0247 mm. The...

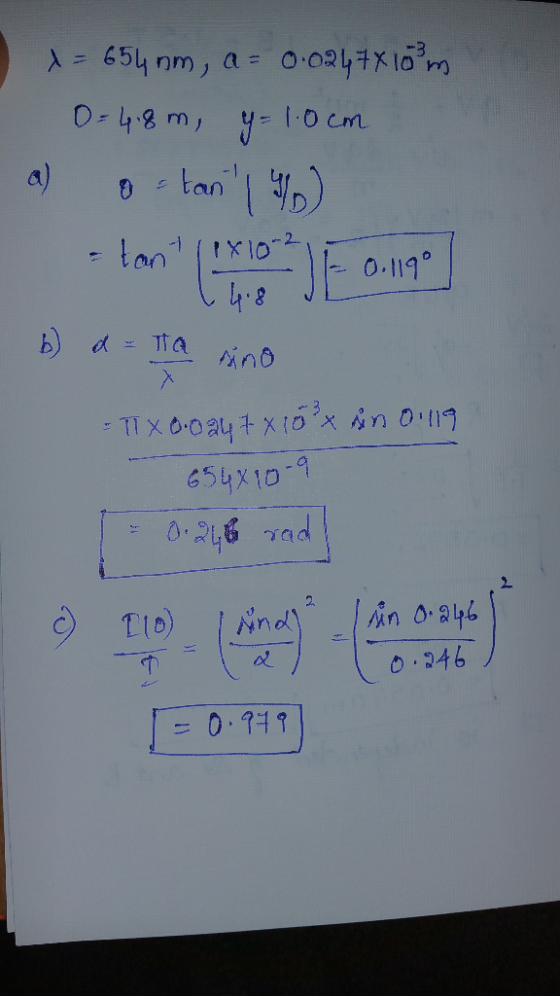

Monochromatic light with wavelength 654 nm is incident on a slit
with width 0.0247 mm. The distance from the slit to a screen is 4.8
m. Consider a point on the screen 1.0 cm from the central maximum.
Calculate (a) θ for that point,
(b) α, and (c) the ratio
of the intensity at that point to the intensity at the central
maximum.
Homework Answers
