Answer) (A) x'y + x

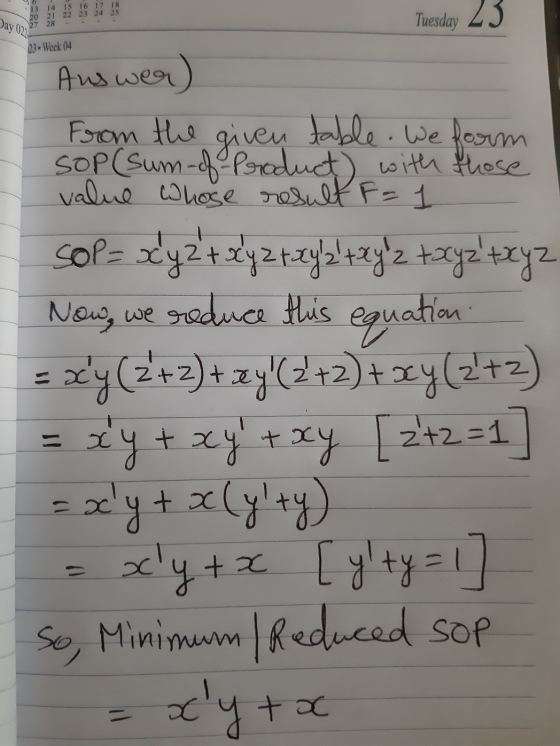

We Form SOP equation through those varables in tables whose result F is 1. There are 6 rows with F=1. We pick these to form SOP and if x=0 then it is written as x' and if x=1 then it is written as x. similarly for y and z. See solution below:
Add Answer to:
Question 10 5 pt Which of the following expression is a minimum SOP (Sum-of-Product) expression for...
Question 10 5 pts Which of the following expression is the correct minimum SOP (Sum-of-Products) expression...
Question 10 5 pts Which of the following expression is the correct minimum SOP (Sum-of-Products) expression of the function F shown in the truth table below? X 2 F y 0 0 0 2 1 0 0 0 0 0 0 0 1 شما 0 1 1 1 0 2 5 6 7 0 0 0 1 1 1 0 1 1 1 1 1 Yz' + x2 + xy yz' + x2 yz + xy yz + xy+ xy'z...
Question 20 (5 marks) For the truth table shown below in Table 1, A C X...
Question 20 (5 marks) For the truth table shown below in Table 1, A C X 0 C C 1 0 C 1 1 0 1 C 1 0 1 1 0 1 0 C 0 1 0 1 0 1 1 C 0 1 1 1 Table 1 a) Derive the standard Sum Of Product (SOP) expression (1 mark) b) Derive the standard Product Of Sums (POS) expression. (1 mark) c) Use a Karnaugh map to find the minimum...
#1,2,7,9 Fall 2019 Test 2 Practice Problems EE210 m(1.6.7). Use a K-map to simplify the Show...
#1,2,7,9
Fall 2019 Test 2 Practice Problems EE210 m(1.6.7). Use a K-map to simplify the Show a truth table for the function F(w, x, y)= function. Find a minimal AND-OR realization 2. Using a 3.variable Karnaugh map, find a minimum SOP reduction for F(A,B,C) - m(0,1,5,7). Using a 4-variable Kamaugh map, find a minimum SOP reduction for F(A.B.C.D) - Ym(1.5.7.11.13.15) Using a 4-variable Karnaugh map, find a minimum SOP reduction for F(A,B,C,D) - Sm(1.5.7,11,13,15) + d(2,3) Study Guide, Unit 5....
1. Use K-maps to reduce each of the following to a minimized SOP form: (a) A...
1. Use K-maps to reduce each of the following to a minimized SOP form: (a) A + BC + CD (b) ABCD + ABCD + ABCD + ABCD (c) ABCD + CD) + ABCD + CD) + ABCD (d) (AB + ABXCD + CD) (e) AB + AB + CD + CD 2. Use K-maps to find the minimum SOP expression for the logic function shown in the table to the right. Implement the circuit using NAND gates only. Inputs...
Question 4. (a) Find the minimum sum-of-products expression for each of the functions below using Karnaugh...
Question 4. (a) Find the minimum sum-of-products expression for each of the functions below using Karnaugh maps i) F = EA,B,C,D(2, 3, 6, 7, 12, 13, 14) (Note: the numbers in the brackets correspond to positions in the Karnaugh map where F takes the logic value 1, ie F = 1 when ABCD = 0010, 0011, 0110, etc). ii) F = []w.x,y,z(0, 2, 6, 7, 8, 14, 15) (Note: the numbers in the brackets correspond to positions in the Karnaugh...
Question 2 1. Formulate the minimized SOP and POS Boolean expression for the following truth table...
Question 2 1. Formulate the minimized SOP and POS Boolean expression for the following truth table using Karnaugh map techniques. Out of the SOP and POS implementations, which is cheaper in terms of number of transistors? You can assume two transistors per input for a gate. (10 points) A B C Output 0 0 0 1 1 0 0 1 0 1 0 0 0 1 0 1 1
5) Reduce the following sum of min-terms to a product of max-terms using a K-map. 15...
5) Reduce the following sum of min-terms to a product of max-terms using a K-map. 15 pts. FW'X'Y' + W'X'YZ + W'XY + W'X'YZ' + WYZ' + WXYZ + WX'Y' + WX'YZ F Ewxyz (2,6,7,8,9,12,15) + d(13) 15 pts. a) Draw the Karnaugh Map of the above function. 3 pts b) Determine the Distinguished "1" cells. 3 pts Select the reduced prime implicants for the function using the K map. 3 pts Write out the logical expression for the function....
Using the K-Map method, find the optimized "product of sums" expression for the following function: F(W,...
Using the K-Map method, find the optimized "product of sums" expression for the following function: F(W, X, Y, Z) = II (0, 1, 4, 5, 7, 9, 12, 13, 14, 15)
Can you please provide the canonical sum of products and minimum sum of products for both...
Can you please provide the canonical sum of products and
minimum sum of products for both functions?
f(a,b,c)=Σ m(3,5,6,7) b) a) f(w, x, y, z)=Σ m(0,2,3,4,5,7,8,10, 12,13) Prelab: Develop a canonical SOP and minimum SOP expression for the two functions using the techniques you learned in class. Design an implementation for each 1.
5. Apply Boolean algebra theorems to minimize the following expression. x(y + xy) + xy(x +...
5. Apply Boolean algebra theorems to minimize the following expression. x(y + xy) + xy(x + yy) 6. Consider the following digital circuit diagram. Write the corresponding logic expression for f and the truth table. D A $(91, 02, ) f(x1, X2, X3)
Question 10 5 pts Which of the following expression is the correct minimum SOP (Sum-of-Products) expression of the function F shown in the truth table below? X 2 F y 0 0 0 2 1 0 0 0 0 0 0 0 1 شما 0 1 1 1 0 2 5 6 7 0 0 0 1 1 1 0 1 1 1 1 1 Yz' + x2 + xy yz' + x2 yz + xy yz + xy+ xy'z...
Question 20 (5 marks) For the truth table shown below in Table 1, A C X 0 C C 1 0 C 1 1 0 1 C 1 0 1 1 0 1 0 C 0 1 0 1 0 1 1 C 0 1 1 1 Table 1 a) Derive the standard Sum Of Product (SOP) expression (1 mark) b) Derive the standard Product Of Sums (POS) expression. (1 mark) c) Use a Karnaugh map to find the minimum...
#1,2,7,9
Fall 2019 Test 2 Practice Problems EE210 m(1.6.7). Use a K-map to simplify the Show a truth table for the function F(w, x, y)= function. Find a minimal AND-OR realization 2. Using a 3.variable Karnaugh map, find a minimum SOP reduction for F(A,B,C) - m(0,1,5,7). Using a 4-variable Kamaugh map, find a minimum SOP reduction for F(A.B.C.D) - Ym(1.5.7.11.13.15) Using a 4-variable Karnaugh map, find a minimum SOP reduction for F(A,B,C,D) - Sm(1.5.7,11,13,15) + d(2,3) Study Guide, Unit 5....
1. Use K-maps to reduce each of the following to a minimized SOP form: (a) A + BC + CD (b) ABCD + ABCD + ABCD + ABCD (c) ABCD + CD) + ABCD + CD) + ABCD (d) (AB + ABXCD + CD) (e) AB + AB + CD + CD 2. Use K-maps to find the minimum SOP expression for the logic function shown in the table to the right. Implement the circuit using NAND gates only. Inputs...
Question 4. (a) Find the minimum sum-of-products expression for each of the functions below using Karnaugh maps i) F = EA,B,C,D(2, 3, 6, 7, 12, 13, 14) (Note: the numbers in the brackets correspond to positions in the Karnaugh map where F takes the logic value 1, ie F = 1 when ABCD = 0010, 0011, 0110, etc). ii) F = []w.x,y,z(0, 2, 6, 7, 8, 14, 15) (Note: the numbers in the brackets correspond to positions in the Karnaugh...
Question 2 1. Formulate the minimized SOP and POS Boolean expression for the following truth table using Karnaugh map techniques. Out of the SOP and POS implementations, which is cheaper in terms of number of transistors? You can assume two transistors per input for a gate. (10 points) A B C Output 0 0 0 1 1 0 0 1 0 1 0 0 0 1 0 1 1
5) Reduce the following sum of min-terms to a product of max-terms using a K-map. 15 pts. FW'X'Y' + W'X'YZ + W'XY + W'X'YZ' + WYZ' + WXYZ + WX'Y' + WX'YZ F Ewxyz (2,6,7,8,9,12,15) + d(13) 15 pts. a) Draw the Karnaugh Map of the above function. 3 pts b) Determine the Distinguished "1" cells. 3 pts Select the reduced prime implicants for the function using the K map. 3 pts Write out the logical expression for the function....
Using the K-Map method, find the optimized "product of sums" expression for the following function: F(W, X, Y, Z) = II (0, 1, 4, 5, 7, 9, 12, 13, 14, 15)
Can you please provide the canonical sum of products and
minimum sum of products for both functions?
f(a,b,c)=Σ m(3,5,6,7) b) a) f(w, x, y, z)=Σ m(0,2,3,4,5,7,8,10, 12,13) Prelab: Develop a canonical SOP and minimum SOP expression for the two functions using the techniques you learned in class. Design an implementation for each 1.
5. Apply Boolean algebra theorems to minimize the following expression. x(y + xy) + xy(x + yy) 6. Consider the following digital circuit diagram. Write the corresponding logic expression for f and the truth table. D A $(91, 02, ) f(x1, X2, X3)
