Consider the following partial UML class diagram for the class Student:
| Student |
|---|
| -studentID: String |
| -name: String |
| -school: String |
| +validateStudentID (s: Student):boolean |
studentID is a string that consists of a letter representing the school followed by 5 digits. The codes used for the schools in this scenario are shown below:
| School | Code | Example of student ID |
|---|---|---|
| FASC | 'A' | "A12345" refers to a student from FASC. |
| FAFB | 'B' | "B88888" refers to a student from FAFB. |
Write the code for the method validateStudentID (Student student) such that it performs validations on the parameter's student ID to ensure that:
- the format is correct (i.e. the student ID consists of a letter followed by 5 digits) and
- the letter value corresponds to the student's school.
Program: In this program, we create a class Student with three attributes - studentID(String), name(String), school(String). We create a boolean method validateStudentID(Student s) which takes a student class object as its parameter and checks if the student id is in the correct format, if it is, it returns true else return false.
To test the function we also need to assign the values to the attributes and for that we create an additional parameterized constructor in our class which assigns values to the attributes.
We also create a main() method in which we can create our class object and test our function.
Code:
public class Student {
//Class attributes
private String studentID;
private String name;
private String school;
//Constructor to initialize
public Student(String school, String name, String studentID){
this.school = school;
this.name = name;
this.studentID = studentID;
}
//Method validateStudentID
public boolean validateStudentID(Student student){
String id = this.studentID;
//The length of string studentID must be of length 6
if(id.length() < 6 || id.length() > 6){
return false;
}
//Check if id contains a letter at the start
if(!Character.isLetter(id.charAt(0))){
return false;
}
//Check if rest of characters after letter are digits
for (int i = 1; i < id.length(); i++) {
if(!Character.isDigit(id.charAt(i))){
return false;
}
}
//Check if the first letter corresponds to A or B
if(id.charAt(0) != 'A' && id.charAt(0) != 'B'){
return false;
}
else {
//If all conditions are true return true
return true;
}
}

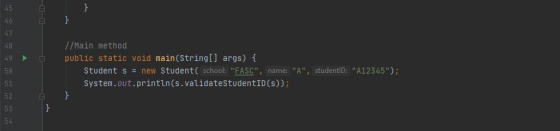

//Main method
public static void main(String[] args) {
Student s = new Student("FASC","A","A12345");
System.out.println(s.validateStudentID(s));
}
}

![نها 46 } 47 48 49 //Main method public static void main(String[] args) { Student s = new Student ( school: EASC, name: A,](http://img.homeworklib.com/questions/6c714890-de1e-11ea-a6ab-d9c396a3aa13.png?x-oss-process=image/resize,w_560)
Output:
