Homework Answers
Add Answer to:

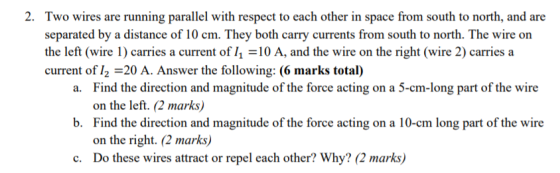

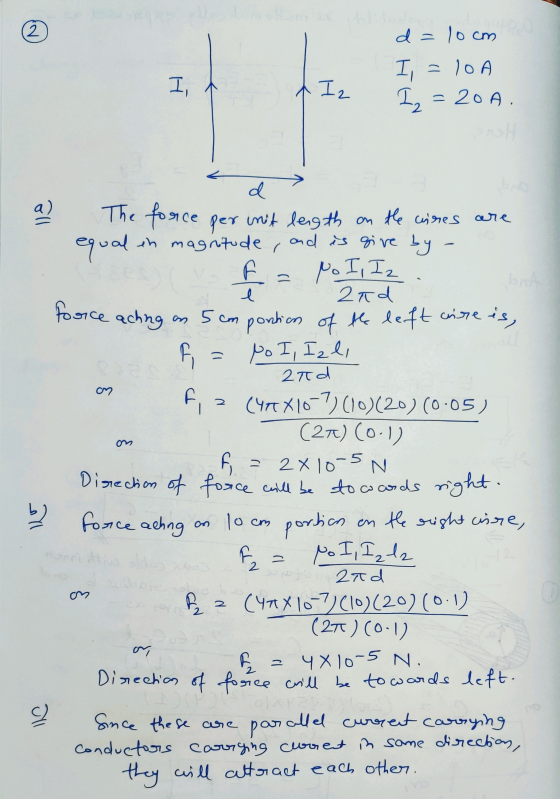

2. Two wires are running parallel with respect to each other in space from south to...
1. A positive ion of charge 1 uC with a weight of 2 x 10-6 kg...
1. A positive ion of charge 1 uC with a weight of 2 x 10-6 kg is released from the positive plate of a capacitor. When it reaches the negative plate, it has achieved a velocity of v = 100 m/s. Calculate the following: (6 marks total) a. What is the potential difference between the two plates? (2 marks) b. If the distance between the two plates is 1 nm and filled with vacuum, and the dimensions of the plates...
Two straight parallel wires, running north/south are separated by 12 cm and carry currents of 4...
Two straight parallel wires, running north/south are separated by 12 cm and carry currents of 4 A in the same direction (north). Find the magnitude and direction of the magnetic field at a point midway between the wires. Now find the magnetic field 6 cm east of the "easternmost" wire. Also, calculate the force of one wire on the other. Is it attractive or repulsive?
Help me solve this question asap Two long parallel wires, P and Q are fixed on...
Help me solve this question asap
Two long parallel wires, P and Q are fixed on a horizontal plane north-south direction. Wire P is 10 cm left of wire Q. Wire P carries 40 A current northwards (a) while wire Q carries 20 A current southwards. Determine the magnitude and direction of i. the resultant magnetic field at midpoint between the wires. the resultant magnetic field at a point on the horizontal plane, 8.0 cm from the wire P and...
Two wires carrying current in the same direction are parallel to each other. Which of the...
Two wires carrying current in the same direction are parallel to each other. Which of the following statements is correct? No net force will act on either wire The wires will attract each other The answer will depend on the relative strengths of the currents. The wires will repel each other
We have two very long wires, which are parallel to each other pointing to the right...
We have two very long wires, which are parallel to each other pointing to the right in front of us. The pair of wire is horizontal. The wire closest to us carries a charge per unit length of 1mC/m and the other the opposite charge. The two wires are 1m apart and both move together at 100m/s along the wire to the right. We are looking at what happens in the middle region of the two wires (not the end)....
Part A Determine the magnitude and direction of the force between two parallel wires 30 m...
Part A Determine the magnitude and direction of the force between two parallel wires 30 m long and 3.0 cm apart, each carrying 30 A in the same direction. The force on each wire will be attractive. The force on each wire will be repulsive. The wires will not interact. ----------------------- A long horizontal wire carries 23.0 A of current due north. The Earth's field 20.0 cm due west of the wire points north but downward, 45 ∘ below the...
The figure below shows a cross-section of two long, straight, parallel wires, where the currents are flowing perpendicul...
The figure below shows a cross-section of two long, straight,
parallel wires, where the currents are flowing perpendicular to the
page. Wire 1 carries a current
I1
directed into the page (in the
−z
direction) and passes through the x-axis at
x = +a.
Wire 2 passes through the x-axis at
x = −2a
and carries an unknown current
I2.
The total magnetic field at the origin due to the
current-carrying wires has the magnitude
2μ0I1
(2πa)
. Note that...
Two long, parallel wires are separated by a distance of 4.00 cm . The force per...
Two long, parallel wires are separated by a distance of 4.00 cm . The force per unit length that each wire exerts on the other is 4.80×10−5 N/m , and the wires repel each other. The current in one wire is 0.700 A . Part A What is the current in the second wire? I I = nothing A SubmitRequest Answer Part B Are the two currents in the same direction or in opposite directions? Are the two currents in...
9. Four wires are running parallel at the corners of a square. The wires run parallel to the x ax...
9. Four wires are running parallel at the corners of a square. The wires run parallel to the x axis and hit the yz-plane at (x, y, z) coordinates: (0, 0, 0), (0, 10, 0), (0, 0, 10), and (0, 10, 10). The magnitude of the currents running through all four wires is the same, but the direction of the current flow is as follows: the first three have the current running in the +x direction, and the last one...
The figure shows three long, parallel, current-carrying wires perpendicular to the page. In the picture, the...
The figure shows three long, parallel, current-carrying wires
perpendicular to the page. In the picture, the current directions
are indicated for I1 and I3. The three currents have equal
magnitudes. The direction of the current I2 is INTO the page.
Determine the direction of the net force acting on the wire I3 due
to the presence of the other two wires. Group of answer choices
left
right
Up
down
The figure shows three long, parallel, current-carrying wires perpendicular to the...
1. A positive ion of charge 1 uC with a weight of 2 x 10-6 kg is released from the positive plate of a capacitor. When it reaches the negative plate, it has achieved a velocity of v = 100 m/s. Calculate the following: (6 marks total) a. What is the potential difference between the two plates? (2 marks) b. If the distance between the two plates is 1 nm and filled with vacuum, and the dimensions of the plates...
Two straight parallel wires, running north/south are separated by 12 cm and carry currents of 4 A in the same direction (north). Find the magnitude and direction of the magnetic field at a point midway between the wires. Now find the magnetic field 6 cm east of the "easternmost" wire. Also, calculate the force of one wire on the other. Is it attractive or repulsive?
Help me solve this question asap
Two long parallel wires, P and Q are fixed on a horizontal plane north-south direction. Wire P is 10 cm left of wire Q. Wire P carries 40 A current northwards (a) while wire Q carries 20 A current southwards. Determine the magnitude and direction of i. the resultant magnetic field at midpoint between the wires. the resultant magnetic field at a point on the horizontal plane, 8.0 cm from the wire P and...
Two wires carrying current in the same direction are parallel to each other. Which of the following statements is correct? No net force will act on either wire The wires will attract each other The answer will depend on the relative strengths of the currents. The wires will repel each other
The figure below shows a cross-section of two long, straight,
parallel wires, where the currents are flowing perpendicular to the
page. Wire 1 carries a current
I1
directed into the page (in the
−z
direction) and passes through the x-axis at
x = +a.
Wire 2 passes through the x-axis at
x = −2a
and carries an unknown current
I2.
The total magnetic field at the origin due to the
current-carrying wires has the magnitude
2μ0I1
(2πa)
. Note that...
9. Four wires are running parallel at the corners of a square. The wires run parallel to the x axis and hit the yz-plane at (x, y, z) coordinates: (0, 0, 0), (0, 10, 0), (0, 0, 10), and (0, 10, 10). The magnitude of the currents running through all four wires is the same, but the direction of the current flow is as follows: the first three have the current running in the +x direction, and the last one...
The figure shows three long, parallel, current-carrying wires
perpendicular to the page. In the picture, the current directions
are indicated for I1 and I3. The three currents have equal
magnitudes. The direction of the current I2 is INTO the page.
Determine the direction of the net force acting on the wire I3 due
to the presence of the other two wires. Group of answer choices
left
right
Up
down
The figure shows three long, parallel, current-carrying wires perpendicular to the...
