Find the shaded area shown here when h1 = 10 in., h2 = 7 in., b...

Question

Question

Find the shaded area shown here when h₁ = 10 in., h₂ = 7 in., b = 22 in., and the diameter of the circle = b.

math geometry

Answer 1

Answer #1

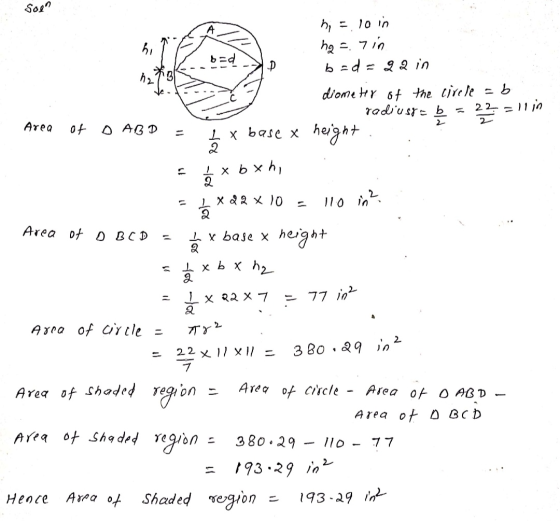

Soon hi he h = 10 in ha=7in bed P b = d = 22 in diameter of the circle = b radius= b 22 2 1x base x height 2 Ixbxhi 2 I X 22

Answer 2
