Question 6) Steam enters a nozzle at 400°C and 800 kPa with a velocity of 10...

Question

Question

Question 6) Steam enters a nozzle at 400°C and 800 kPa with a velocity of 10 m/s, and leaves at 3008C and 200 kPa while losin

engineering Mechanical-Engineering

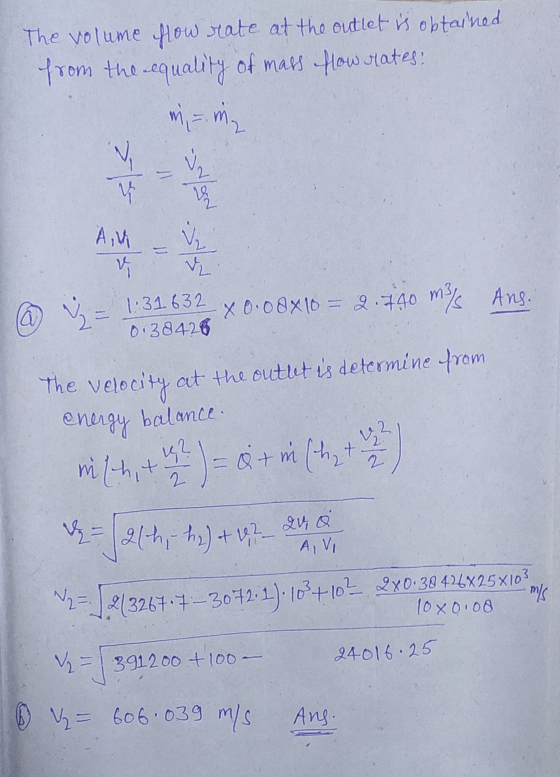

Answer 1

Answer #1

Answer 2
