steam enters a nozzle at 400C and 0.1MPa with a velocity of 10m/s, and leaves at...

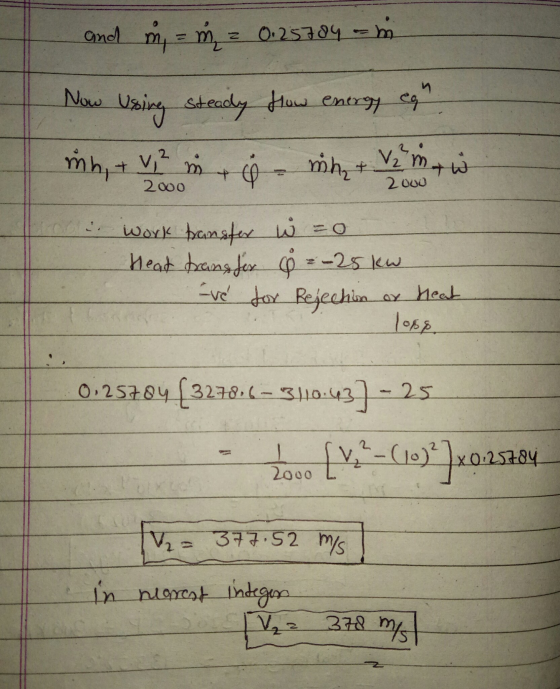

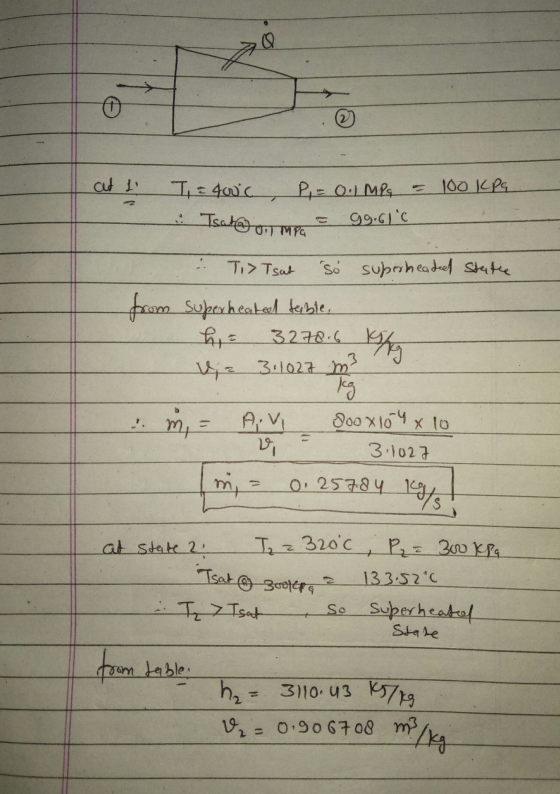

steam enters a nozzle at 400C and 0.1MPa with a velocity of 10m/s, and leaves at 320C and 300kPa while losing heat at a rate of 25kW. For an inlet and exit area of 800cm^2, and 200cm^2 respectively, determine the exit velocity of the steam at the nozzle exit.
a) 622m/s
b) 596m/s
c) 440m/s
d) 558 m/s
Homework Answers
Add Answer to:
steam enters a nozzle at 400C and 0.1MPa with a velocity of
10m/s, and leaves at...
Question 6) Steam enters a nozzle at 400°C and 800 kPa with a velocity of 10...
Question 6) Steam enters a nozzle at 400°C and 800 kPa with a velocity of 10 m/s, and leaves at 3008C and 200 kPa while losing heat at a rate of 25 kW. For an inlet area of 800 cm2, determine the velocity and the volume flow rate of the steam at the nozzle exit.
Steam enters a nozzle at 400°C and 800 kPa with a velocity of 10 m/s, and...
Steam enters a nozzle at 400°C and 800 kPa with a velocity of 10 m/s, and leaves at 300°C and 200 kPa while losing heat at a rate of 24 kW. For an inlet area of 675 cm, determine the velocity and the volume flow rate of the steam at the nozzle exit. 2-m/s (Round to the nearest integer) m3/s (Round to two decimal places) 400 C 800 kPa Steam200 kPa 10 m/s 300 C
5-33 Steam enters a nozzle at 400 C and 800 kPa with a velocity of 10...
5-33 Steam enters a nozzle at 400 C and 800 kPa with a velocity of 10 m/s, and leaves at 375°C and 400 kPa while losing heat at a rate of 25 kW. For an inlet area of 800 cm determine the velocity and the volume flow rate of the steamat the nozzle exit. Answers: 260 m/s, 1.55 m/s 400 C 800 kPa 0 m/s 375°C 400 kPa Steam FIGURE P5-33
3. Steam enters a nozzle at 400°C and 800 kPa with a velocity of 5 m/s...
3. Steam enters a nozzle at 400°C and 800 kPa with a velocity of 5 m/s and leaves at 500 kPa and 350°C, while losing 60 kJ/kg of heat. For an inlet area of 0.5 m², determine the velocity. volumetric flow rate and mass flow rate at the outlet
Steam enters a nozzle at 600 kPa and 400 ∘ ∘ C at a velocity of...
Steam enters a nozzle at 600 kPa and 400 ∘ ∘ C at a velocity of 9.9 m/s. Steam leaves the nozzle at 500 kPa and 350 ∘ ∘ C. The nozzle has an inlet area of 200 cm 2 2 and loses heat at a rate of 91 kJ/kg. !! I already got the mass flow rate and it is correct What is the mass flow rate of steam that passes through the nozzle? .3854089617 kg/s What is the...
Steam enters an adiabatic nozzle at 400 °C and 800 kPa with a velocity of 16...
Steam enters an adiabatic nozzle at 400 °C and 800 kPa with a velocity of 16 m/s. It leaves the nozzle at 300 °C and 400 kPa. The inlet area of the nozzle is 800 cm2. Determine; a. The mass flow rate through the nozzle, in kg/s Ans. _kg/s b. The volume flow rate of the steam at the exit, in m3/s Ans._ _m3/s The velocity of the steam at the nozzle exit, in c. m/s Ans. m/s
Problem 4 Steam enters a nozzle at 500°C and 500 kPa with a velocity of 15...
Problem 4 Steam enters a nozzle at 500°C and 500 kPa with a velocity of 15 m/s; it exits the nozzle at 200°C and 100 kPa while losing heat at a rate of 30 kW. Given that the mass flow rate of the steam is 1.688 kg/s, determine the velocity of the steam at the nozzle exit.
Steam enters an insulated nozzle at 6000 kPa, 360oC, with a velocity of 20 m/s. At...
Steam enters an insulated nozzle at 6000 kPa, 360oC, with a velocity of 20 m/s. At the exit, the pressure and velocity are 1500 kPa and 691.7 m/s, respectively. Determine the area (cm2) at the exit of the nozzle if the mass flow rate is 5.41 kg/s.
Steam enters a nozzle operating at steady state at 30 bar, 320 deg C with a...
Steam enters a nozzle operating at steady state at 30 bar, 320 deg C with a velocity of 100 m/sec. The exit pressure and temperature are 10 bar and 200 deg C respectively. The mass rate of flow of steam is 2 kg/sec. Neglect heat transfer and potential energy. Determine, exit velocity in m/sec and inlet and exit flow areas in m2.
5-30 Air enters an adiabatic nozzle steadily at 300 kPa, 200°C, and 30 m/s and leaves...
5-30 Air enters an adiabatic nozzle steadily at 300 kPa, 200°C, and 30 m/s and leaves at 100 kPa and 180 m/s. The inlet area of the nozzle is 80 cm². Determine (a) the mass flow rate through the nozzle, (b) the exit temperature of the air, and (c) the exit area of the nozzle. Answers: (a) 0.5304 kg/s, (b) 184.6°C, (c) 38.7 cm P = 300 kPa T, = 200°C Vi = 30 m/s A = 80 cm AIR...
Question 6) Steam enters a nozzle at 400°C and 800 kPa with a velocity of 10 m/s, and leaves at 3008C and 200 kPa while losing heat at a rate of 25 kW. For an inlet area of 800 cm2, determine the velocity and the volume flow rate of the steam at the nozzle exit.
Steam enters a nozzle at 400°C and 800 kPa with a velocity of 10 m/s, and leaves at 300°C and 200 kPa while losing heat at a rate of 24 kW. For an inlet area of 675 cm, determine the velocity and the volume flow rate of the steam at the nozzle exit. 2-m/s (Round to the nearest integer) m3/s (Round to two decimal places) 400 C 800 kPa Steam200 kPa 10 m/s 300 C
5-33 Steam enters a nozzle at 400 C and 800 kPa with a velocity of 10 m/s, and leaves at 375°C and 400 kPa while losing heat at a rate of 25 kW. For an inlet area of 800 cm determine the velocity and the volume flow rate of the steamat the nozzle exit. Answers: 260 m/s, 1.55 m/s 400 C 800 kPa 0 m/s 375°C 400 kPa Steam FIGURE P5-33
3. Steam enters a nozzle at 400°C and 800 kPa with a velocity of 5 m/s and leaves at 500 kPa and 350°C, while losing 60 kJ/kg of heat. For an inlet area of 0.5 m², determine the velocity. volumetric flow rate and mass flow rate at the outlet
Steam enters an adiabatic nozzle at 400 °C and 800 kPa with a velocity of 16 m/s. It leaves the nozzle at 300 °C and 400 kPa. The inlet area of the nozzle is 800 cm2. Determine; a. The mass flow rate through the nozzle, in kg/s Ans. _kg/s b. The volume flow rate of the steam at the exit, in m3/s Ans._ _m3/s The velocity of the steam at the nozzle exit, in c. m/s Ans. m/s
Problem 4 Steam enters a nozzle at 500°C and 500 kPa with a velocity of 15 m/s; it exits the nozzle at 200°C and 100 kPa while losing heat at a rate of 30 kW. Given that the mass flow rate of the steam is 1.688 kg/s, determine the velocity of the steam at the nozzle exit.
5-30 Air enters an adiabatic nozzle steadily at 300 kPa, 200°C, and 30 m/s and leaves at 100 kPa and 180 m/s. The inlet area of the nozzle is 80 cm². Determine (a) the mass flow rate through the nozzle, (b) the exit temperature of the air, and (c) the exit area of the nozzle. Answers: (a) 0.5304 kg/s, (b) 184.6°C, (c) 38.7 cm P = 300 kPa T, = 200°C Vi = 30 m/s A = 80 cm AIR...
