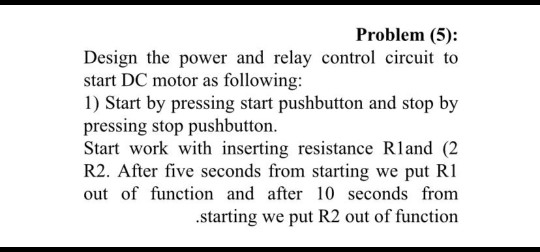

Problem (5): Design the power and relay control circuit to start DC motor as following: 1) Start by pressing start pushbutton

0 0
Add a comment Improve this question Transcribed image text
Answer #1

Problem (5): Design the power and relay control circuit to start DC motor as following: 1) Start by pressing start pushbutton

Solution:

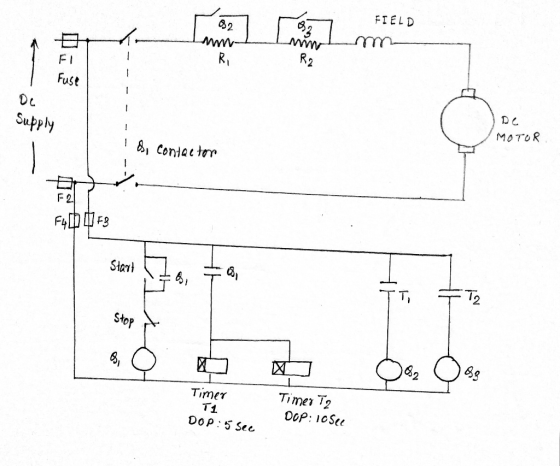

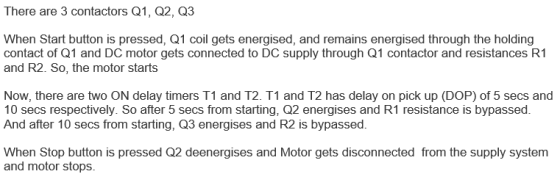

There are 3 contactors Q1, Q2, Q3 When Start button is pressed, Q1 coil gets energised, and remains energised through the hol32 FIELD 33 mm R2 mm 21 Ri Fuse De Supply DC MOTOR I di contactor F2 F4D 03 73 Start To T2 Stop 8, 182 183 - Timer T1 DOP:5 SP.S: If you are having any doubt, please comment here, I will surely reply you.Please provide your valuable feedback by a thumbsup. Your thumbsup is a result of our efforts. Your LIKES are very important for me so please LIKE….Thanks in advance!
