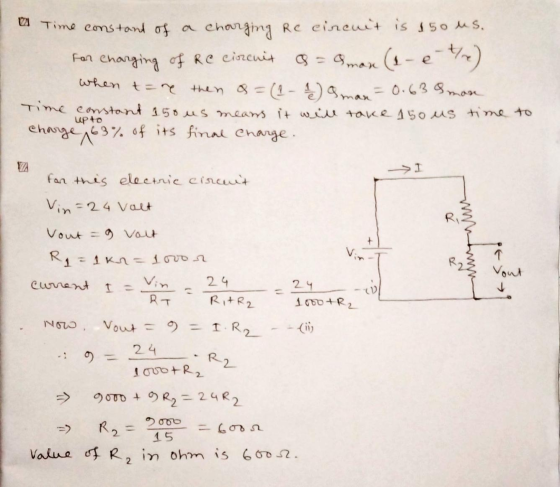

Time constant of a charging RC circuit is 150 microsecond. What does it mean? Arial Τ...
1. What does the time constant of an RC circuit that is being charged tell you?
Background Summary Questions: 1. What does the time constant of an RC circuit that is being charged tell you? 2. What does the time constant of an RC circuit that is being discharged tell you? 3. How is the voltage across the capacitor related to the charge on a capacitor? (Linear, Inverse, Quadratic, etc.) 4. Based on your answer to question 3, how would you write an expression for the voltage across the capacitor as a function of time? a. Charging: V(t) b. Discharging: V(t)= Background: The...
Question 4: RC Circuit: a) Charging capacitor: A simple RC circuit is given in Figure 4a....
Question 4: RC Circuit: a) Charging capacitor: A simple RC circuit is given in Figure 4a. The capacitor is empty initially and switch was open for a long time. 4E, (V) EMF is used to charge the capacitor as switch is closed at t=0s. By using Kirchhoff's voltage law and Ohm's law that you learned so far, analyze this circuit and find the unknowns given below. 1)At t=0s. draw the equivalent circuit and find v. (Os), i. (Os), i (Os),...
A charging RC circuit controls the intermittent windshield wipers in a car. The emf is 12.0...
A charging RC circuit controls the intermittent windshield wipers in a car. The emf is 12.0 V. The wipers are triggered when the voltage across the 110 µF capacitor reaches 10.0 V; then the capacitor is quickly discharged (through a much smaller resistor) and the cycle repeats. What resistance should be used in the charging circuit if the wipers are to operate once every 1.40 s? Answer in kΩ please. I need it ASAP. Thank you :)
(1) Consider the RC circuit shown in Figure 1. For t<0 the switch is open, and...
(1) Consider the RC circuit shown in Figure 1. For t<0 the switch is open, and the charge stored on the capacitor is 0. At t-0 the switch is closed, and the voltage source begins charging the capacitor. Let R1-R2-220 Ω , C-0.47 μ F , Vs-5 V. (a) Write the differential equation as an expression for the capacitor voltage fort> 0 (i.e. write the differential equation) and calculate the time constant (b) Calculate the steady-state capacitor voltage R2 R1...
RC Circuits If you have an RC circuit with a resistance of 200 ohms and a...
RC Circuits If you have an RC circuit with a resistance of 200 ohms and a capacitance of 35 microfarads, what is the time constant? Time Constant= ? s This time constant represents how much time it will take to reach 63% of maximum. If the RC circuit is connected to an EMF of 12.0 V, what will be its voltage after 5.0 ms? Voltage after 5.0 ms= ? V Draw what the voltage looks like in a charging RC...
Figure 3. Variable RC circuit A variable time constant circuit is shown above. The potentiometer (R2)...
Figure 3. Variable RC circuit A variable time constant circuit is shown above. The potentiometer (R2) can change its resistance from 0 Ohms to 750 Ohms. R1 has a fixed value of 70 Ohms. The capacitor has a capacitance of 35 pF. a) Use the supplied MATLAB™ code Calc RC and function RC_Circ to find the time variation of voltage across the Capacitor, Ve, and the fixed resistor R1 for a steady voltage V1 = 5 Volts which is turned...
Q2. In the RC Circuit shown in Figure 2, the capacitor is initially uncharged (at time...
Q2. In the RC Circuit shown in Figure 2, the capacitor is
initially uncharged (at time t=0).
2- In the RC Circuit shown in Figure 2, the capacitor is initially uncharged (at time t=0). (ignore the internal resistance of the battery) Figure 2 C= 5.0nF a) Calculate the current I released by the battery, just after the switch S is closed at t=0, (7 pts) b) Calculate the max. power dissipated in the lightbulb, (9 pts) c) Now lets open...
Suppose that a particular RC series circuit has a time constant of 5.0 seconds. What does...
Suppose that a particular RC series circuit has a time constant of 5.0 seconds. What does that mean in terms of the charging and discharging? How would this circuit compare to the ones you tried? Explain qualitatively and quantitatively. What could be a practical application of an RC circuit ?
Example 28.12 Charging a Capacitor in an RC Circuit Problem An uncharged capacitor and a resistor...
Example 28.12 Charging a Capacitor in an RC Circuit Problem An uncharged capacitor and a resistor are battery, as shown in Figure 28.23. If emf = 12.0 V, C = 5.00 AuF, and R = 8.00 x 105 ?, find the time constant of the circuit, the maximum charge on the capacitor, and the charge and current as functions of time. in series to a Figure 28.23 The switch in this series RC circuit, open for times t> , is...
The Natural Response of an RL Circuit In summary, to find the time constant of an...
The Natural Response of an RL Circuit In summary, to find the time constant of an RL circuit, find the Thevenin equivalent resistance se Learning Goal: To analyze an RL circuit to determine the initial current through an inductor, the time constant, and the expression for the natural response of the inductor current, and to use the expression for the inductor current to find other circuit quantities, such as current, voltage, power, or energy. The natural response of an RL...
Background Summary Questions: 1. What does the time constant of an RC circuit that is being charged tell you? 2. What does the time constant of an RC circuit that is being discharged tell you? 3. How is the voltage across the capacitor related to the charge on a capacitor? (Linear, Inverse, Quadratic, etc.) 4. Based on your answer to question 3, how would you write an expression for the voltage across the capacitor as a function of time? a. Charging: V(t) b. Discharging: V(t)= Background: The...
Question 4: RC Circuit: a) Charging capacitor: A simple RC circuit is given in Figure 4a. The capacitor is empty initially and switch was open for a long time. 4E, (V) EMF is used to charge the capacitor as switch is closed at t=0s. By using Kirchhoff's voltage law and Ohm's law that you learned so far, analyze this circuit and find the unknowns given below. 1)At t=0s. draw the equivalent circuit and find v. (Os), i. (Os), i (Os),...
(1) Consider the RC circuit shown in Figure 1. For t<0 the switch is open, and the charge stored on the capacitor is 0. At t-0 the switch is closed, and the voltage source begins charging the capacitor. Let R1-R2-220 Ω , C-0.47 μ F , Vs-5 V. (a) Write the differential equation as an expression for the capacitor voltage fort> 0 (i.e. write the differential equation) and calculate the time constant (b) Calculate the steady-state capacitor voltage R2 R1...
Figure 3. Variable RC circuit A variable time constant circuit is shown above. The potentiometer (R2) can change its resistance from 0 Ohms to 750 Ohms. R1 has a fixed value of 70 Ohms. The capacitor has a capacitance of 35 pF. a) Use the supplied MATLAB™ code Calc RC and function RC_Circ to find the time variation of voltage across the Capacitor, Ve, and the fixed resistor R1 for a steady voltage V1 = 5 Volts which is turned...
Q2. In the RC Circuit shown in Figure 2, the capacitor is
initially uncharged (at time t=0).
2- In the RC Circuit shown in Figure 2, the capacitor is initially uncharged (at time t=0). (ignore the internal resistance of the battery) Figure 2 C= 5.0nF a) Calculate the current I released by the battery, just after the switch S is closed at t=0, (7 pts) b) Calculate the max. power dissipated in the lightbulb, (9 pts) c) Now lets open...
Suppose that a particular RC series circuit has a time constant of 5.0 seconds. What does that mean in terms of the charging and discharging? How would this circuit compare to the ones you tried? Explain qualitatively and quantitatively. What could be a practical application of an RC circuit ?
Example 28.12 Charging a Capacitor in an RC Circuit Problem An uncharged capacitor and a resistor are battery, as shown in Figure 28.23. If emf = 12.0 V, C = 5.00 AuF, and R = 8.00 x 105 ?, find the time constant of the circuit, the maximum charge on the capacitor, and the charge and current as functions of time. in series to a Figure 28.23 The switch in this series RC circuit, open for times t> , is...
The Natural Response of an RL Circuit In summary, to find the time constant of an RL circuit, find the Thevenin equivalent resistance se Learning Goal: To analyze an RL circuit to determine the initial current through an inductor, the time constant, and the expression for the natural response of the inductor current, and to use the expression for the inductor current to find other circuit quantities, such as current, voltage, power, or energy. The natural response of an RL...
