RC Circuits

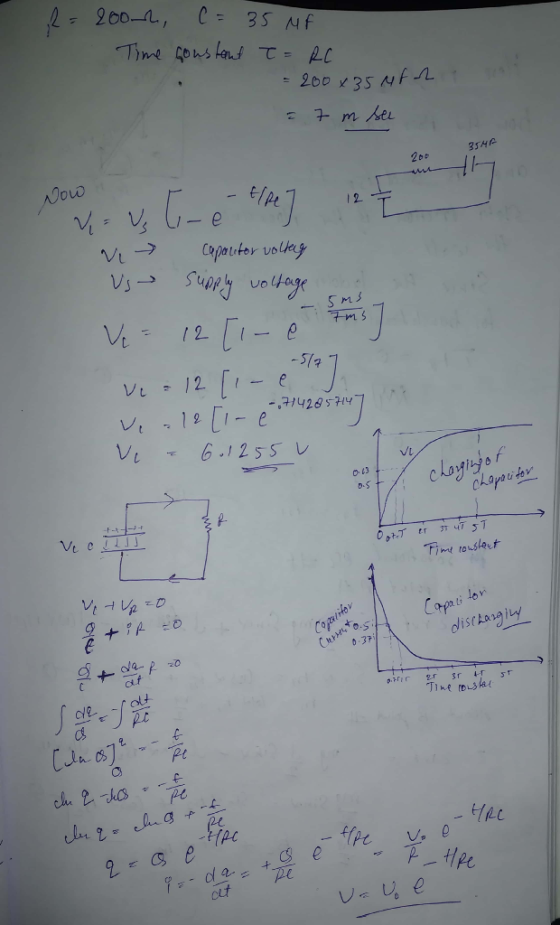

If you have an RC circuit with a resistance of 200 ohms and a capacitance of 35 microfarads, what is the time constant? Time Constant= ? s
This time constant represents how much time it will take to reach 63% of maximum.
If the RC circuit is connected to an EMF of 12.0 V, what will be its voltage after 5.0 ms? Voltage after 5.0 ms= ? V
Draw what the voltage looks like in a charging RC circuit as a function of time?

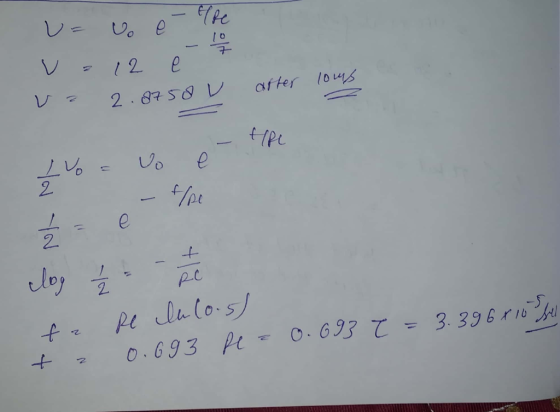

Say now that your capacitor is fully charged, and the voltage source is removed. What will be the capacitors voltage after 10.0 ms? Voltage after 10.0 ms= ? V
How much time would this RC circuit take to discharge to half of its starting voltage? Time to discharge to 1/2 voltage= ? s
Draw what the voltage looks like in a discharging RC circuit as a function of time?
(where there is a question mark, that is what I need help with)
Homework Answers
